Heater Core Temperature Sensor / Switch: Testing and Inspection

Water Temperature Sensor:

1. Unplug sensor connector.

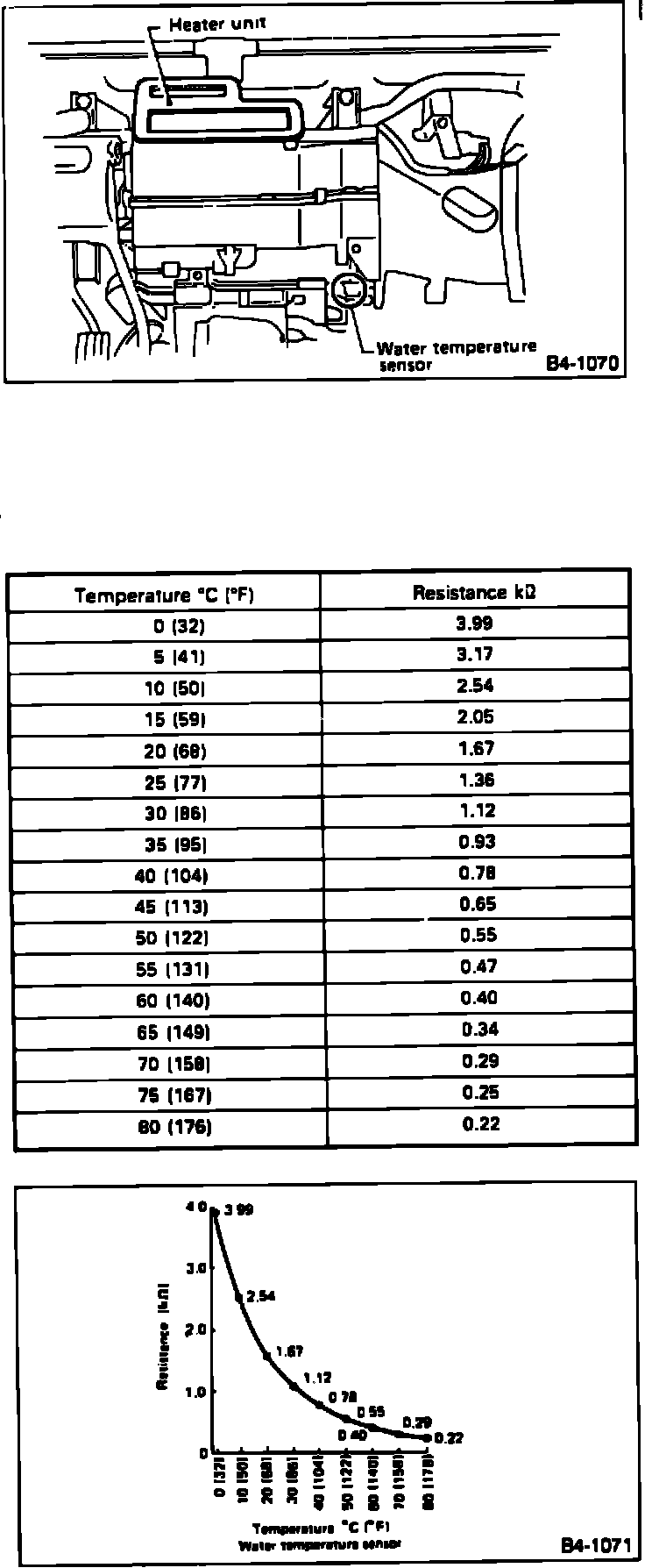

2. Measure resistance across terminals. Compare results with image table.
3. If not as specified, replace sensor.
