Wagon 4WD F4-1781cc 1.8L Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Transfer Case
>>
AWD System
AWD System

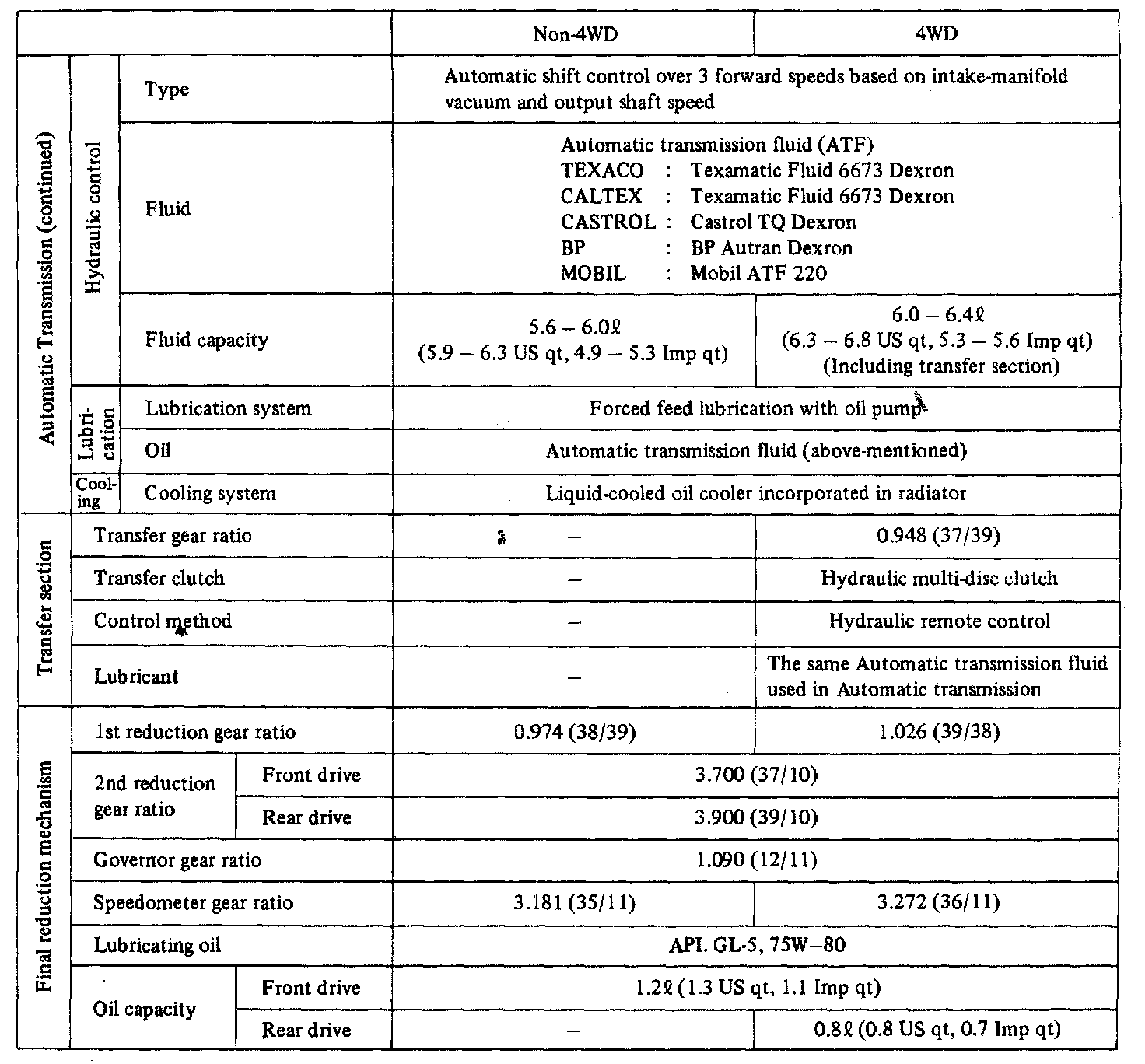

3-spd A/T, 2WD/4WD Transfer & Gear Ratio:
