Wagon 4WD F4-1781cc 1.8L Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Capacity Specifications
>>
Engine Lubrication
Engine Lubrication

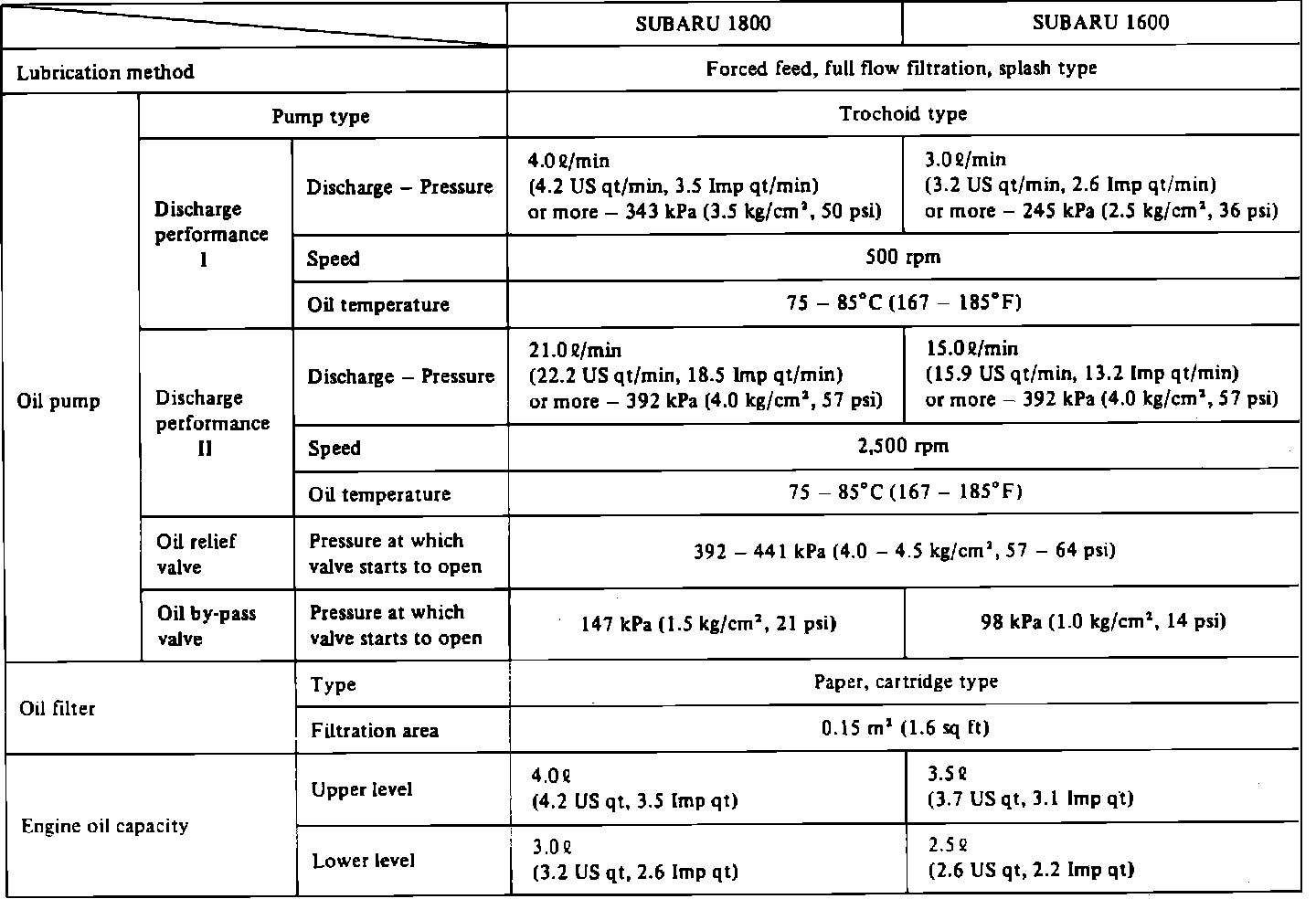

LUBRICATION SPECIFICATIONS
Lubrication System Specifications:

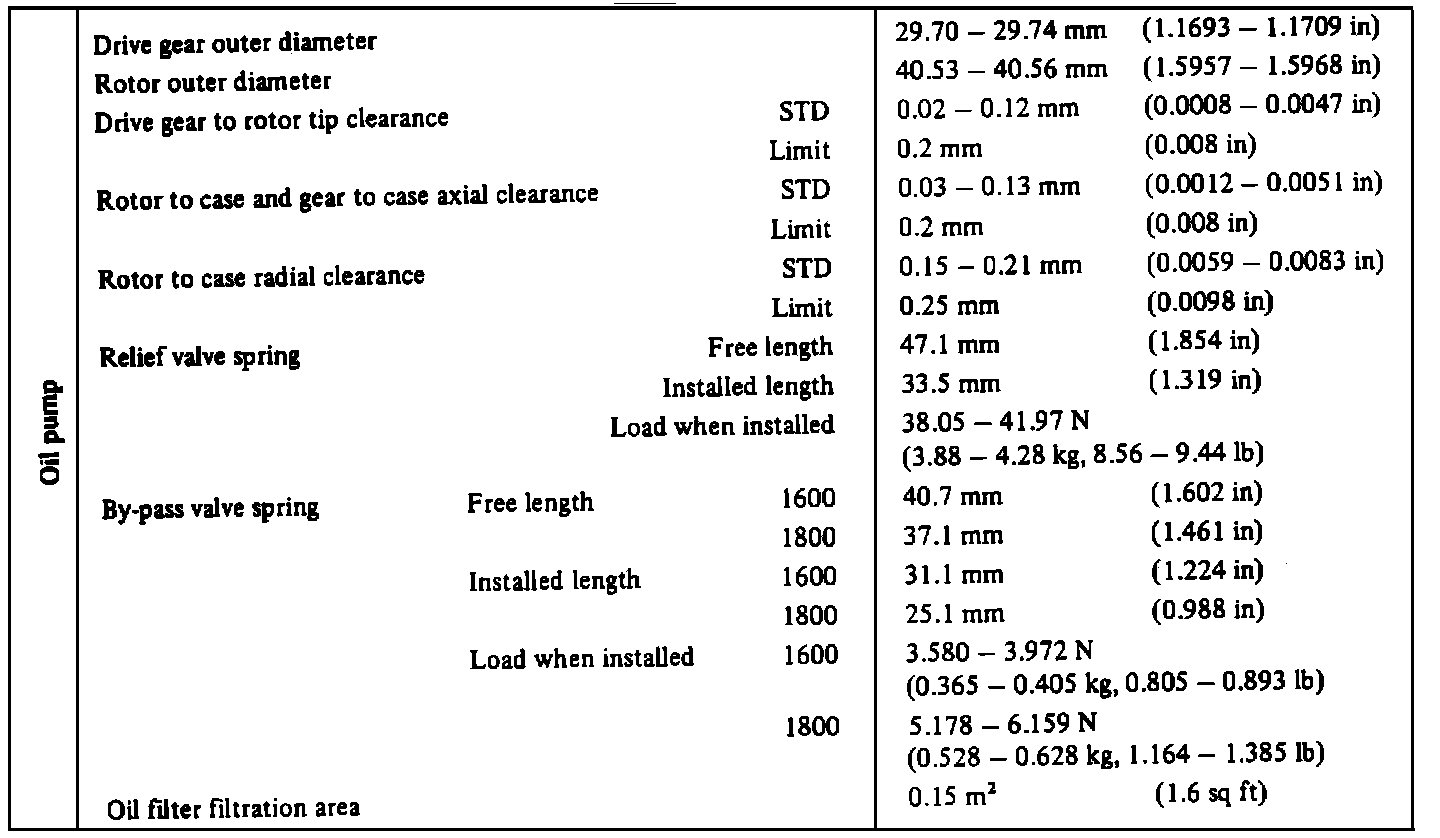

SERVICE DATA
Engine Service Data (Oil Pump):
