Throttle Full Close Switch: Testing and Inspection

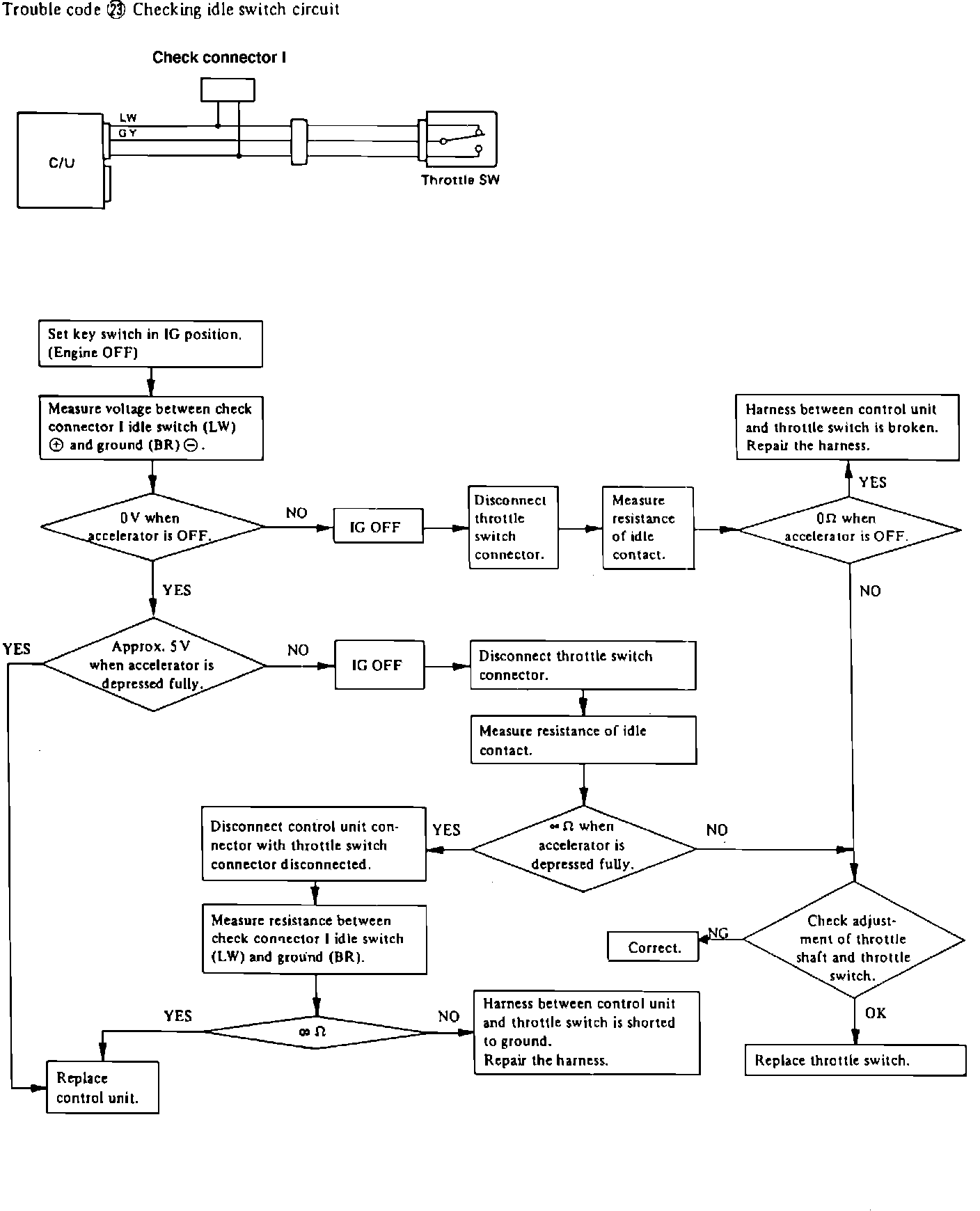

Fig.11 EGI system troubleshooting chart. Trouble code 23. Checking idle switch circuit.:
