Control Module HVAC: Testing and Inspection

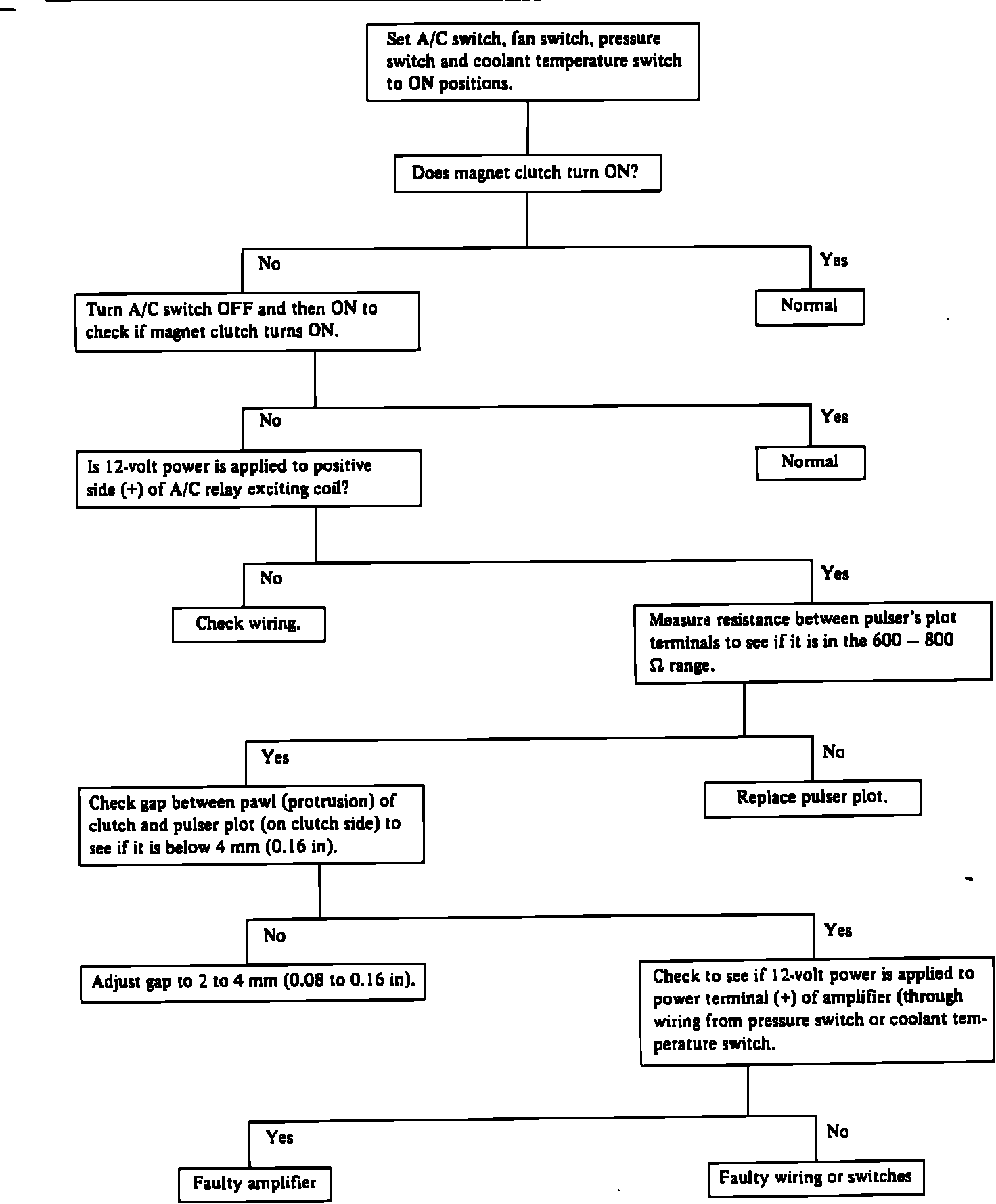

Pulser And Related Circuits (Part 1):



Pulser And Related Circuits (Part 2):
