Home >> Subaru >> 1984 >> Wagon 4WD F4-1781cc 1.8L Turbo >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Locations

Cruise Control Module: Locations

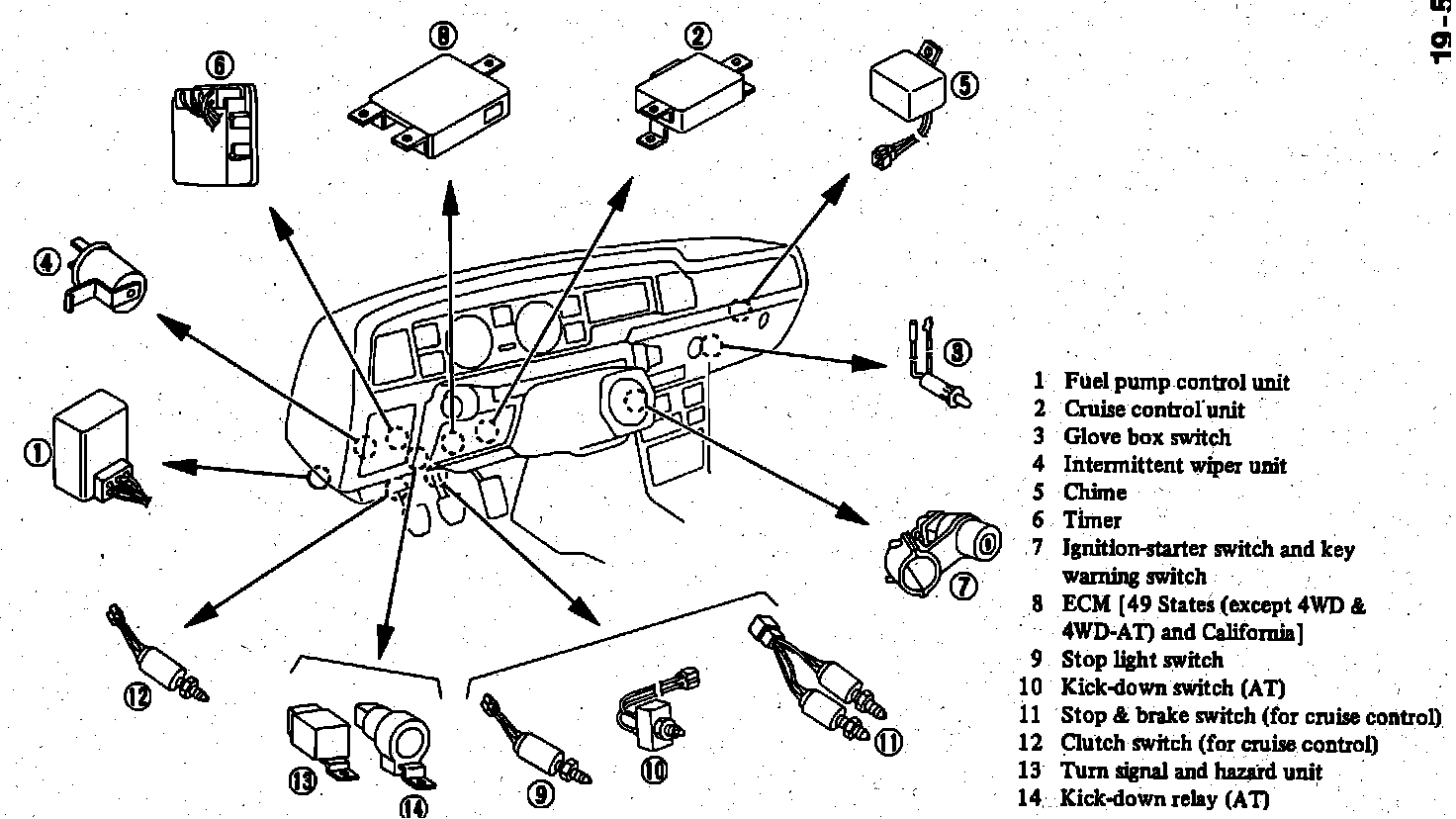

Instrument Panel Electrical Components.:




Under LH Side Of Instrument Panel

Applicable to: 1981-84 Except Brat
