CLUTCH: CLUTCH PEDAL: REMOVAL

1. REMOVE BRAKE BOOSTER ASSEMBLY

Removal

2. REMOVE CLUTCH RESERVOIR TUBE Removal

3. DISCONNECT CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE Removal

4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

5. REMOVE INSTRUMENT PANEL UNDER TRAY Removal

6. REMOVE CLUTCH MASTER CYLINDER ASSEMBLY Removal

7. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal

8. REMOVE COMBINATION METER ASSEMBLY Removal

9. REMOVE CLUTCH PEDAL SUPPORT SUB-ASSEMBLY

(a) Disconnect the wire harness clamp.

(b) Disconnect the clutch start switch connector.

(c) Disconnect the clutch switch connector.

(d) Remove the bolt and clutch pedal support.





10. REMOVE CLUTCH START SWITCH ASSEMBLY





(a) Remove the nut and clutch start switch.

11. REMOVE CLUTCH SWITCH ASSEMBLY





(a) Loosen the lock nut and remove the clutch switch assembly.

12. REMOVE CLUTCH PEDAL SPRING





(a) While the clutch pedal is fully depressed, remove the clutch pedal spring.

13. REMOVE SPRING HOLDER

(a) Remove the spring holder from the clutch pedal support.

14. REMOVE CLUTCH PEDAL SUB-ASSEMBLY





(a) Remove the bolt and the nut.

(b) Remove the clutch pedal from the clutch pedal support.

15. REMOVE CLUTCH PEDAL PAD

(a) Remove the clutch pedal pad from the clutch pedal.

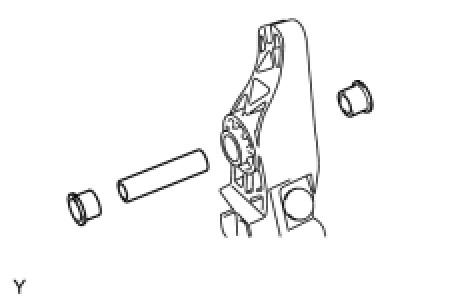

16. REMOVE CLUTCH PEDAL BUSH





(a) Remove the 2 bushes from the clutch pedal.

(b) Remove the collar from the clutch pedal.

17. REMOVE CLUTCH PEDAL NO.1 CUSHION





(a) Remove the clutch pedal No. 1 cushion from the clutch pedal.
