Front Removal

AIR CONDITIONING: FRONT BLOWER RESISTOR: REMOVAL

1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

2. REMOVE FRONT BLOWER RESISTOR

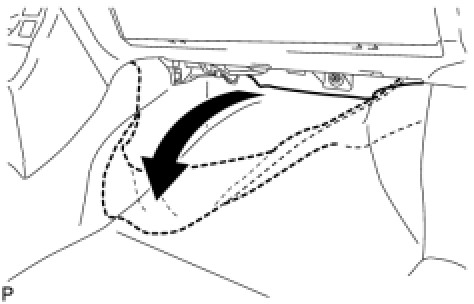

(a) Pull back the floor carpet.

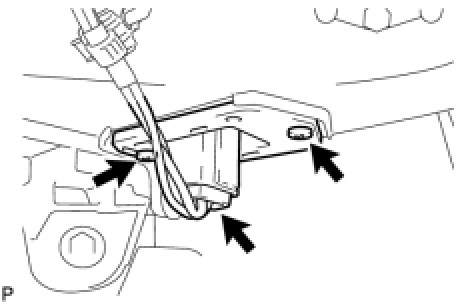

(b) Disconnect the connector.





(c) Remove the 2 screws and the blower resistor.
