Installation





STEERING COLUMN: STEERING COLUMN ASSEMBLY: INSTALLATION

1. INSTALL STEERING COLUMN ASSEMBLY

(a) Install the steering column assembly with the 4 nuts.

Torque : 25 Nm (255 kgf-cm, 18 ft-lbf)

(b) Connect all the connectors and engage all the wire harness clamps to the steering column assembly.

2. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY





(a) Align the matchmarks on the No. 2 steering intermediate shaft assembly and the steering link assembly.

Text in Illustration





(b) Install the bolt B.

Torque : 35 Nm (360 kgf-cm, 26 ft-lbf)

(c) Tighten the bolt A.

Torque : 35 Nm (360 kgf-cm, 26 ft-lbf)

3. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

(a) Using pliers, expand the clamp.

(b) While holding the clamp expanded, install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly and engage the claw.

(c) Return the clamp to its original position.

(d) Connect all the connectors to the turn signal switch assembly with spiral cable sub-assembly.

4. INSTALL UPPER STEERING COLUMN COVER

(a) Engage the 3 claws and install the upper steering column cover.

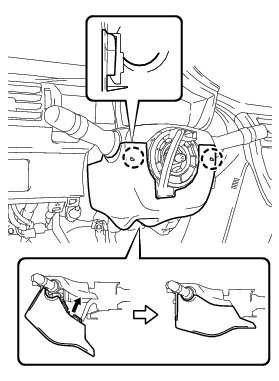

5. INSTALL LOWER STEERING COLUMN COVER





(a) Engage the 2 claws and install the lower steering column cover as shown in the illustration.

(b) Engage the 3 claws and install the lower steering column cover.





HINT
Press the area around the claw to engage it.

6. PLACE FRONT WHEELS FACING STRAIGHT AHEAD

7. ADJUST SPIRAL CABLE Installation

8. INSTALL STEERING WHEEL ASSEMBLY

(a) Align the matchmarks on the steering wheel assembly and steering main shaft.





Text in Illustration





(b) Install the steering wheel assembly set nut.

Torque : 50 Nm (510 kgf-cm, 37 ft-lbf)

(c) Connect the connectors to the spiral cable.

9. INSTALL STEERING PAD Installation

10. INSTALL NO. 3 AIR DUCT SUB-ASSEMBLY Installation

11. INSTALL KNEE AIRBAG ASSEMBLY Installation

12. INSTALL LOWER INSTRUMENT PANEL ASSEMBLY Installation

13. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

14. INSTALL COWL SIDE TRIM BOARD LH

HINT
Use the same procedure for the LH side as for the RH side Installation.

15. INSTALL FRONT DOOR SCUFF PLATE LH

HINT
Use the same procedure for the LH side as for the RH side Installation.

16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

17. INSPECT SRS WARNING LIGHT

Diagnosis System

18. PERFORM ASSIST MAP WRITING

Programming and Relearning
