Installation

SUPPLEMENTAL RESTRAINT SYSTEMS: SEAT POSITION SENSOR: INSTALLATION

CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.

1. INSTALL SEAT POSITION AIRBAG SENSOR

(a) Using a 1 mm (0.039 in.) feeler gauge, install the seat position airbag sensor.

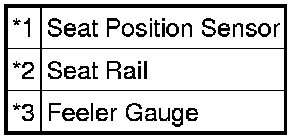

Text in Illustration





NOTICE:
* If the seat position sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace the seat position sensor with a new one.
* When installing the seat position airbag sensor, make sure that the SRS wiring does not interfere with other parts and is not pinched between other parts.

HINT
Maintain a clearance between the seat position airbag sensor and the seat rail within 0.6 mm (0.023 in.) to 2 mm (0.079 in.).

(b) Using a T30 "TORX" socket wrench, tighten the screw.

Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

(c) Make sure that the clearance between the seat position airbag sensor and the seat rail is within 0.6 mm (0.023 in.) to 2 mm (0.079 in.).

(d) Connect the connector to the seat position airbag sensor.

(e) Check that there is no looseness in the installation parts of the seat position airbag sensor.

2. INSTALL SEAT SLIDE POSITION SENSOR PROTECTOR

(a) Engage the guide and install the seat slide position sensor protector with the screw.

3. INSTALL FRONT SEAT ASSEMBLY LH

Installation

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (54 kgf-cm, 48 in-lbf)

5. INSPECT SRS WARNING LIGHT

Diagnosis System
