Installation

SUPPLEMENTAL RESTRAINT SYSTEMS: FRONT AIRBAG SENSOR: INSTALLATION

CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.

1. INSTALL FRONT AIRBAG SENSOR LH

(a) Check that the ignition switch is off.

(b) Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Insert the pin (stopper) into the body hole and install the front airbag sensor LH with the bolt.

Torque : 9.0 Nm (92 kgf-cm, 80 in-lbf)

NOTICE:
* If the front airbag sensor LH has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
* When installing the front airbag sensor LH, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
* Make sure that the pin (stopper) is securely inserted into the body hole.
* Tighten the bolt while holding the front airbag sensor LH because the front airbag sensor LH pin (stopper) is easily damaged.

(d) Connect the connector to the front airbag sensor LH.

NOTICE:
When connecting any airbag connector, take care not to damage the airbag wire harness.

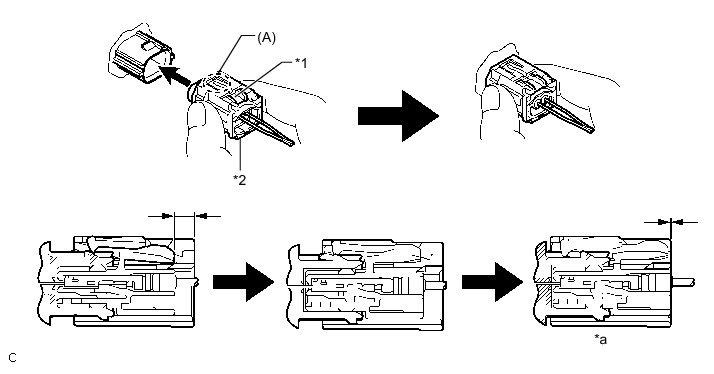

(1) Before connecting the connector, check that the position of the white housing lock is correct as shown in the illustration.





(2) Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).





Text in Illustration





HINT
When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and part (A), as it may result in an insecure fit.

(e) Check that there is no looseness in the installation parts of the front airbag sensor LH.

2. INSTALL FRONT AIRBAG SENSOR RH

(a) Check that the ignition switch is off.

(b) Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Insert the pin (stopper) into the body hole and install the front airbag sensor RH with the nut.

Torque : 9.0 Nm (92 kgf-cm, 80 in-lbf)

NOTICE:
* If the front airbag sensor RH has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
* When installing the front airbag sensor RH, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
* Make sure that the pin (stopper) is securely inserted into the body hole.
* Tighten the bolt while holding the front airbag sensor RH because the front airbag sensor RH pin (stopper) is easily damaged.

(d) Connect the connector to the front airbag sensor RH.

NOTICE:
When connecting any airbag connector, take care not to damage the airbag wire harness.

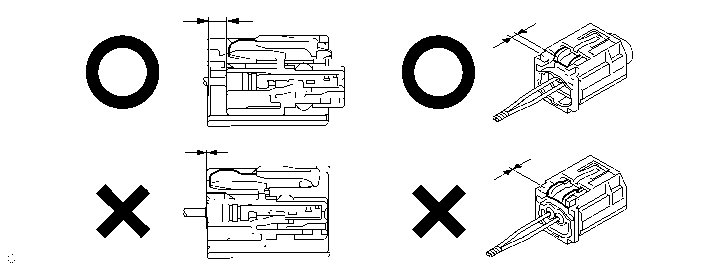

(1) Before connecting the connector, check that the position of the white housing lock is correct as shown in the illustration.





(2) Be sure to engage the connectors until they are locked (when locking, make sure that a click sound can be heard).





Text in Illustration





HINT
When engaged, the white housing lock will slide. Be sure not to hold the white housing lock and part (A), as it may result in an insecure fit.

(e) Check that there is no looseness in the installation parts of the front airbag sensor RH.

3. INSTALL NO. 2 RADIATOR SIDE AIR SEAL Reassembly

4. INSTALL NO. 1 RADIATOR SIDE AIR SEAL Reassembly

5. INSTALL FRONT BUMPER ENERGY ABSORBER Reassembly

6. INSTALL UPPER RADIATOR SUPPORT ABSORBER Reassembly

7. INSTALL FRONT BUMPER COVER

Installation

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

9. INSPECT SRS WARNING LIGHT

Diagnosis System
