Removal

PARKING BRAKE: PARKING BRAKE CABLE: REMOVAL

1. REMOVE FRONT SEAT ASSEMBLY

Removal

2. REMOVE REAR SEAT ASSEMBLY

Removal

3. REMOVE LUGGAGE COMPARTMENT TRAY

4. REMOVE FRONT DOOR SCUFF PLATE RH Removal

5. REMOVE FRONT DOOR SCUFF PLATE LH Removal

6. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP RH Removal

7. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH Removal

8. REMOVE REAR DECK TRIM COVER Removal

9. REMOVE DECK TRIM SIDE BELT HOLE COVER RH Removal

10. REMOVE DECK TRIM SIDE BELT HOLE COVER LH Removal

11. REMOVE SIDE NO. 1 TRIM ASSEMBLY RH Removal

12. REMOVE SIDE NO. 1 TRIM ASSEMBLY LH Removal

13. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY Removal

14. REMOVE REAR CONSOLE BOX ASSEMBLY Removal

15. REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY Removal

16. REMOVE PARKING BRAKE CABLE COVER

(a) Remove the clip from the floor carpet.

(b) Disconnect the 2 hooks from the floor carpet and pull back the floor carpet to the place where the parking brake cable cover can be removed.

(d) Disengage the 2 guides and remove the parking brake cable cover.

17. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY

(a) Disconnect the No. 2 and No. 3 parking brake cable assemblies from the No. 1 parking brake cable assembly.

18. REMOVE REAR WHEELS

19. REMOVE REAR BRAKE DRUM

20. REMOVE REAR BRAKE SHOE KIT Disassembly

21. REMOVE NO. 2 PARKING BRAKE CABLE ASSEMBLY

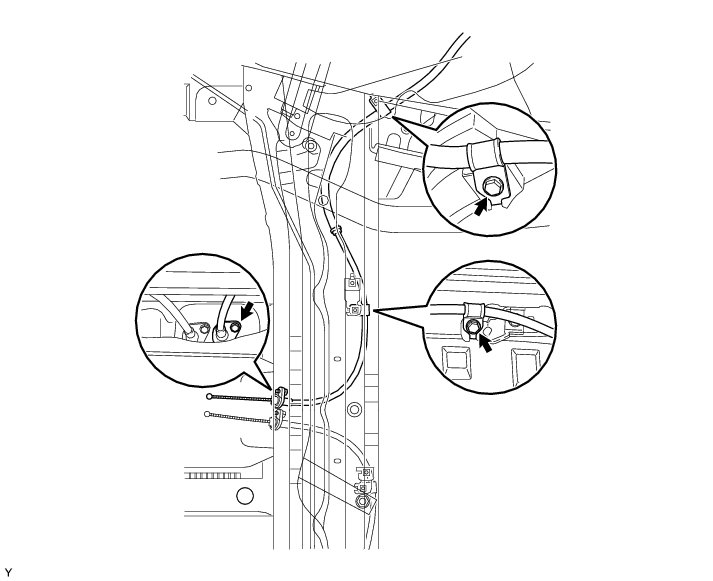

(a) Remove the 3 bolts.

(b) Remove the bolt and remove the No. 2 parking brake cable assembly from the backing plate.

22. REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY

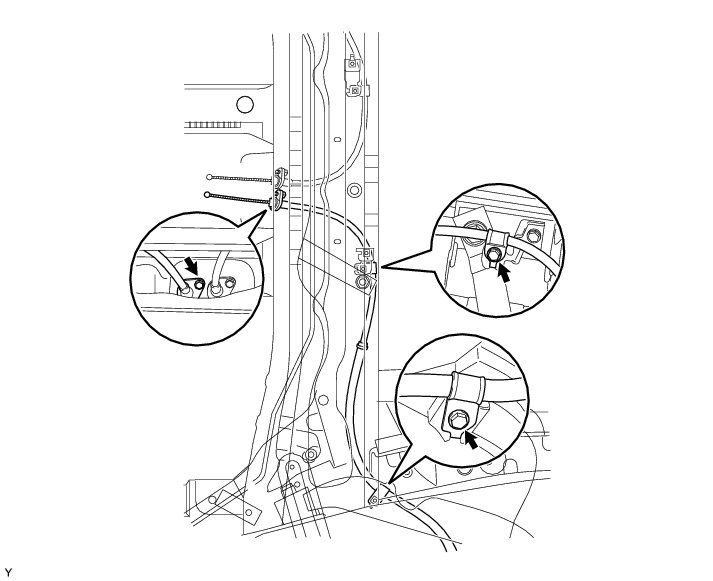

(a) Remove the 3 bolts.

(b) Remove the bolt and remove the No. 3 parking brake cable assembly from the backing plate.
