Installation

DOOR / HATCH: HOOD LOCK CONTROL CABLE ASSEMBLY: INSTALLATION

1. INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY

(a) Pass the hood lock control cable into the engine compartment.





Text in Illustration





(b) Connect the clamps as shown in the illustration.

2. INSTALL HOOD LOCK CONTROL LEVER

(a) Connect the hood lock control cable.

(b) Engage the 3 claws and install the hood lock control lever.

3. INSTALL LOWER INSTRUMENT PANEL ASSEMBLY Installation

4. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

(a) Install the front door opening trim weatherstrip.

5. INSTALL COWL SIDE TRIM BOARD LH

HINT
Use the same procedure as for the RH side Installation.

6. INSTALL FRONT DOOR SCUFF PLATE LH

HINT
Use the same procedure as for the RH side Installation.

7. INSTALL HOOD LOCK ASSEMBLY

(a) Apply MP grease to the sliding areas of the lock.

(b) Connect the hood lock control cable.

(c) Install the hood lock assembly with the 3 bolts.

Torque : 7.5 Nm (76 kgf-cm, 66 in-lbf)

(d) Connect the connector.

8. INSPECT HOOD SUB-ASSEMBLY Testing and Inspection

9. ADJUST HOOD SUB-ASSEMBLY Adjustments

10. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY

(a) Install the front fender splash shield with the 3 grommets.

(b) Install the 7 clips.

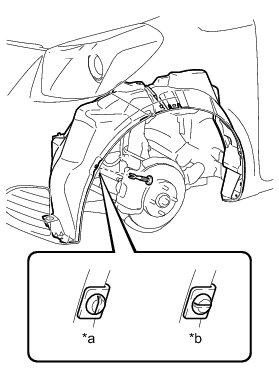

(c) Install the pin hold clip.





Text in Illustration





NOTICE:
Install the pin hold clip with the slot aligned vertically. Do not rotate the clip after inserting it. After installation, confirm that the slot is vertical.

11. INSTALL FENDER REAR PLATE MUDGUARD Installation

12. INSTALL FRONT WHEEL OPENING EXTENSION PAD Installation

13. INSTALL FRONT WHEEL
