C1581

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: C1581/26: Assist Map Number Un-Writing
C1581/26 - Assist Map Number Un-Writing

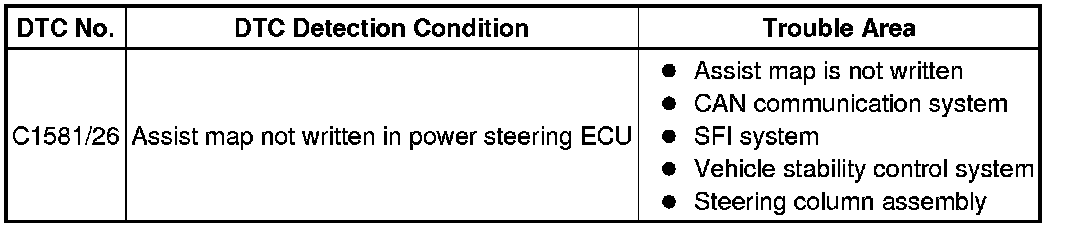

DESCRIPTION

When a map is not recorded in the steering column assembly (power steering ECU), then this DTC is stored.





INSPECTION PROCEDURE

NOTICE:
When the steering column assembly is replaced, perform the assist map writing Programming and Relearning.

PROCEDURE

1. PERFORM ASSIST MAP WRITING

(a) Perform the assist map writing Programming and Relearning.

NEXT -- Continue to next step.

2. CHECK DTC OUTPUT

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

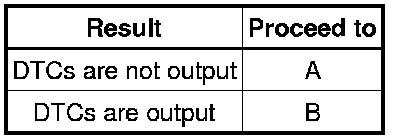

Result





B -- CHECK CAN COMMUNICATION SYSTEM

A -- END

3. CHECK CAN COMMUNICATION SYSTEM C1541

B -- GO TO CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

4. CHECK ECM

(a) Check that the correct ECM is installed.

OK:

The correct ECM is installed.

NG -- REPLACE ECM Removal
OK -- Continue to next step.

5. CHECK SFI SYSTEM

(a) Check for DTCs of the SFI system Reading and Clearing Diagnostic Trouble Codes.

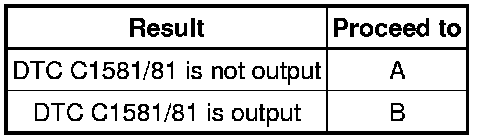

Result





B -- GO TO SFI SYSTEM SFI System
A -- Continue to next step.

6. CHECK BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)

(a) Check that the correct brake actuator assembly (skid control ECU) is installed.

OK:

The correct brake actuator assembly (skid control ECU) is installed.

NG -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal
OK -- Continue to next step.

7. CHECK VEHICLE STABILITY CONTROL SYSTEM C1541

B -- GO TO VEHICLE STABILITY CONTROL SYSTEM Vehicle Stability Control System

A -- REPLACE STEERING COLUMN ASSEMBLY Removal
