Removal

CLUTCH: CLUTCH MASTER CYLINDER: REMOVAL

1. REMOVE BRAKE BOOSTER ASSEMBLY

Removal

2. REMOVE CLUTCH RESERVOIR TUBE

(a) Loosen the clip and remove the clutch reservoir tube from the clutch master cylinder assembly.

HINT
Use a container to collect the fluid.

3. DISCONNECT CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE

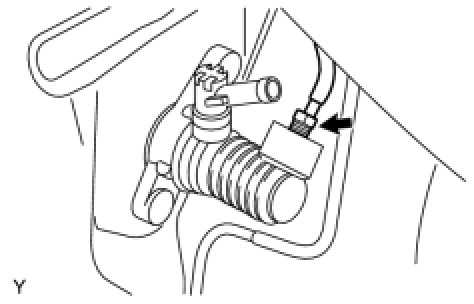

(a) Using a union nut wrench, disconnect the flexible hose tube.

HINT
Use a container to collect the fluid.

4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

5. REMOVE INSTRUMENT PANEL UNDER TRAY Removal

6. REMOVE CLUTCH MASTER CYLINDER ASSEMBLY

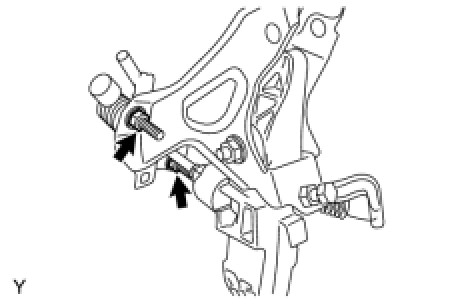

(a) Remove the 2 nuts and the clutch master cylinder.

7. REMOVE CLUTCH MASTER CYLINDER PUSH ROD CLEVIS

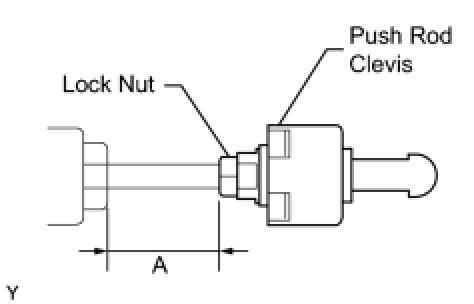

(a) Measure the dimension A as shown in the illustration before loosening the lock nut.

(b) Loosen the lock nut and remove the push rod clevis.

(c) Remove the lock nut.
