Removal

2ZR-FE ENGINE MECHANICAL: FRONT CRANKSHAFT OIL SEAL: REMOVAL

1. REMOVE ENGINE UNDER COVER RH

2. REMOVE NO. 2 CYLINDER HEAD COVER Removal

3. REMOVE FAN AND GENERATOR V BELT Removal

4. REMOVE CRANKSHAFT PULLEY

(a) Using SST, hold the pulley in place and loosen the pulley bolt.





SST : 09213-58013

91651-60855

SST : 09330-00021

(b) Using SST, remove the pulley bolt and pulley.





SST : 09950-50013

09951-05010

09952-05010

09953-05020

09954-05021

5. REMOVE TIMING CHAIN OR BELT COVER OIL SEAL

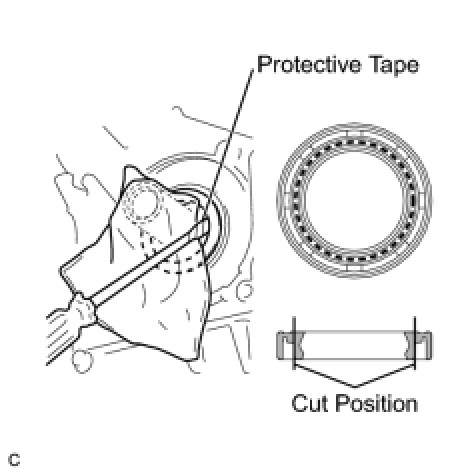

(a) Using a knife, cut off the oil seal lip.

(b) Using a screwdriver with its tip taped, pry out the oil seal.

NOTICE:
After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
