Installation

U760E AUTOMATIC TRANSMISSION / TRANSAXLE: SHIFT PADDLE SWITCH: INSTALLATION

1. INSTALL SHIFT PADDLE SWITCH

(a) Connect the 2 connectors to the 2 shift paddle switches.

(b) Install 2 new cable ties as shown in the illustration.

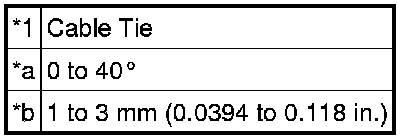

Text in Illustration





(c) Attach the 6 guides to install the No. 1 switch wire.

(d) Attach the 4 pins and install the 2 shift paddle switches with the 2 screws.

2. ADJUST SPIRAL CABLE Installation

3. INSTALL NO. 1 STEERING WHEEL ORNAMENT Reassembly

4. INSTALL STEERING PAD SWITCH LH Installation

5. INSTALL STEERING WHEEL ASSEMBLY

Installation

6. INSTALL STEERING PAD

Installation

7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

8. INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT

Programming and Relearning

9. INSPECT STEERING WHEEL CENTER POINT

10. INSPECT SRS WARNING LIGHT

Diagnosis System
