Front Seat Outer Belt Assembly

SEAT BELT: FRONT SEAT OUTER BELT ASSEMBLY: PRECAUTION

CAUTION:
Replace any faulty parts of the seat belt systems (outer belt, inner belt, bolts, nuts, tether anchor hardware and other related parts). When inspecting a vehicle that was in a collision, be sure to check all of the seat belt systems regardless of whether or not the system was activated in the collision. Replace any damaged or malfunctioning systems.

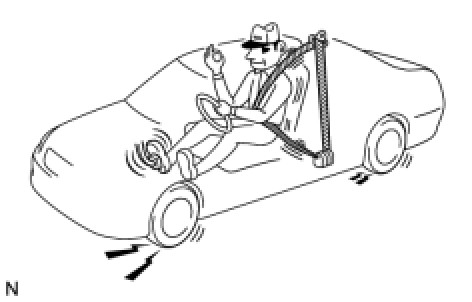

1. RUNNING TEST (IN SAFE AREA)

CAUTION:
Conduct this test in a safe area.

(a) Fasten the front seat belt.

(b) Drive the vehicle at 16 km/h (10 mph) and firmly depress the brakes. Check that the belts lock and cannot be extended at this time. If a belt does not lock, replace the seat belt assembly Removal.

HINT
Inspect a seat belt assembly before installing it Front Seat Outer Belt Assembly.

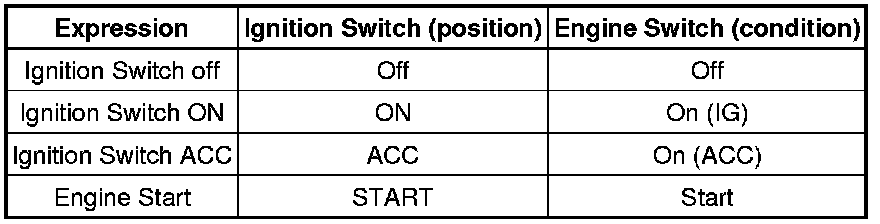

2. IGNITION SWITCH EXPRESSION

HINT
The type of ignition switch used on this model differs according to the specifications of the vehicle. The expressions listed in the table below are used in this section.
