Installation

SUPPLEMENTAL RESTRAINT SYSTEMS: CURTAIN SHIELD AIRBAG ASSEMBLY: INSTALLATION

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH

(a) Attach the 12 claws to install 6 new clips and 6 new spacers to the curtain shield airbag.

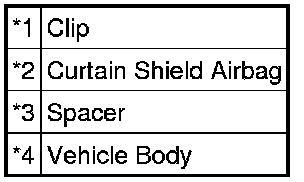

Text in Illustration





NOTICE:
Be careful not to push in the pin of the clip.

(b) Check that the ignition switch is off.

(c) Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(d) Attach the 2 hooks and temporarily install the curtain shield airbag with the 2 bolts.





(e) Connect the deployment section of the curtain shield airbag to the vehicle body.

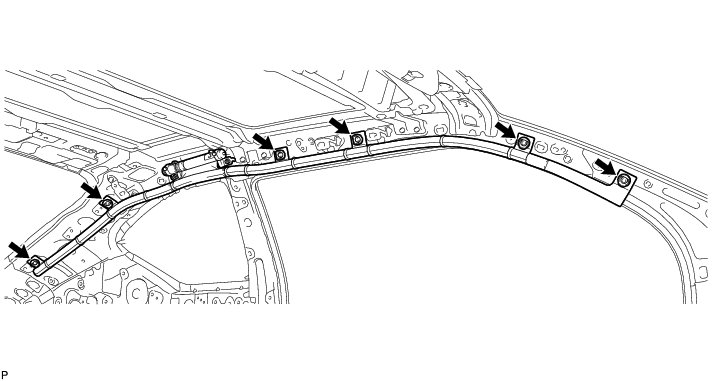

(1) Attach the 12 claws to connect the deployment section of the curtain shield airbag to the vehicle body.

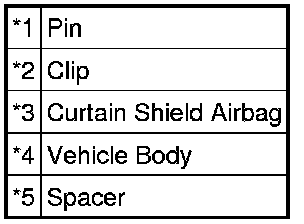

Text in Illustration





NOTICE:
Do not twist the curtain shield airbag when installing it.

(2) Push in the 6 pins.

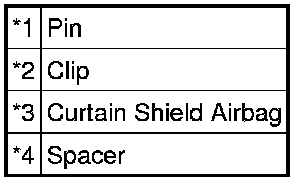

Text in Illustration





NOTICE:
Make sure the pin of the clip is pushed in firmly.

(f) Tighten the 2 bolts in the order shown in the illustration.





Torque : 9.8 Nm (100 kgf-cm, 87 in-lbf)

(g) Connect the airbag connector.





NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

(h) Push in the lock plate to lock the airbag connector.

Text in Illustration





2. INSTALL ROOF HEADLINING ASSEMBLY

Installation.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. PERFORM DIAGNOSTIC SYSTEM CHECK

Reading and Clearing Diagnostic Trouble Codes

5. CHECK SRS WARNING LIGHT

Diagnosis System
