Installation

INTERIOR PANELS / TRIM: LOWER INSTRUMENT PANEL: INSTALLATION

HINT
A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

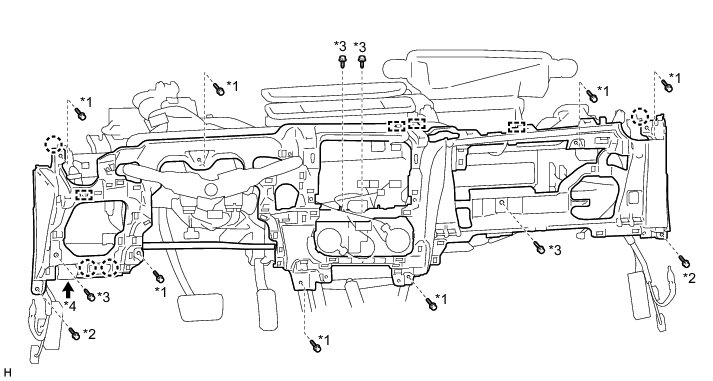

1. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY

(a) Attach the 4 claws to install the lower instrument panel.

(b) Attach the 4 clamps and connect the cable.

(c) Install the 2 bolts [B].

(d) Install the 7 bolts [A] and 4 screws [C].





Text in Illustration





2. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Installation

3. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY Installation

4. INSTALL GLOVE COMPARTMENT SIDE PANEL RH

(a) Attach the 2 claws to install the glove compartment side panel.

5. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY Installation

6. INSTALL FUSE BOX OPENING COVER

(a) Attach the 8 claws to install the fuse box opening cover.

7. INSTALL NO. 1 SWITCH HOLE BASE

(a) w/ Smart Key System:

(1) Connect the connector.

(2) Attach the 5 claws to install the No. 1 switch hole base.

(b) w/o Smart Key System:

(1) Attach the 5 claws to install the No. 1 switch hole base.

8. INSTALL NO. 2 RADIO BRACKET

(a) Install the No. 2 radio bracket with the 2 bolts.

HINT
If the vehicle is equipped with a radio receiver, connect each connector and then install the No. 2 radio bracket and radio receiver as a single unit with the 4 bolts.

9. INSTALL NO. 1 RADIO BRACKET

(a) Install the No. 1 radio bracket with the 2 bolts.

HINT
If the vehicle is equipped with a radio receiver, connect each connector and then install the No. 1 radio bracket and radio receiver as a single unit with the 4 bolts.

10. INSTALL COWL SIDE TRIM BOARD LH Installation

11. INSTALL COWL SIDE TRIM BOARD RH Installation

12. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

(a) Install the front door opening trim weatherstrip.

13. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

(a) Install the front door opening trim weatherstrip.

14. INSTALL FRONT DOOR SCUFF PLATE LH Installation

15. INSTALL FRONT DOOR SCUFF PLATE RH Installation

16. INSTALL STEERING COLUMN COVER Installation

17. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY

Installation

18. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY

Installation

19. INSTALL STEERING WHEEL ASSEMBLY

Installation

20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

21. CHECK SRS WARNING LIGHT

Diagnosis System
