P0116

2AR-FE ENGINE CONTROL: SFI SYSTEM: P0116: Engine Coolant Temperature Circuit Range / Performance Problem
P0116 - Engine Coolant Temperature Circuit Range / Performance Problem

DESCRIPTION

Refer to DTC P0115 P0115.

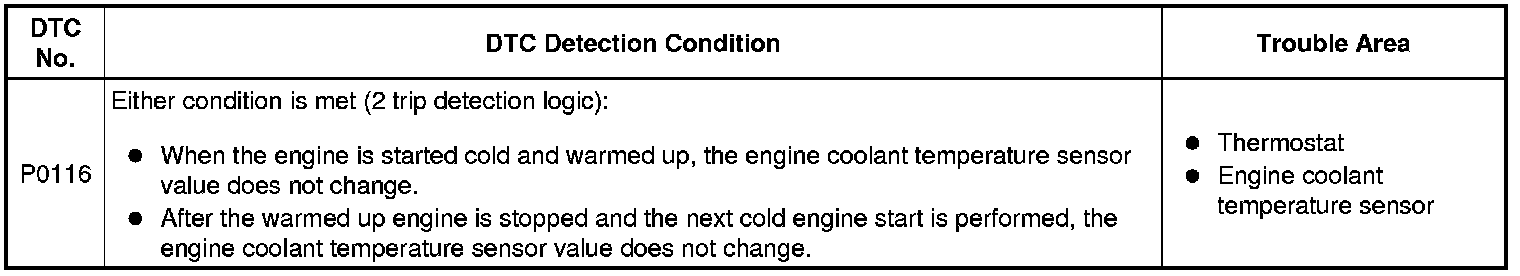

MONITOR DESCRIPTION

Engine coolant temperature sensor cold start monitor

When a cold engine start is performed and then the engine is warmed up, if the engine coolant temperature sensor value does not change, it is determined that a malfunction has occurred. If this is detected in 2 consecutive driving cycles, the MIL is illuminated and a DTC is stored.

Engine coolant temperature sensor soak monitor

If the engine coolant temperature sensor value does not change after the warmed up engine is stopped and then the next cold engine start is performed, it is determined that a malfunction has occurred. If this is detected in 2 consecutive driving cycles, the MIL is illuminated and a DTC is stored.

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

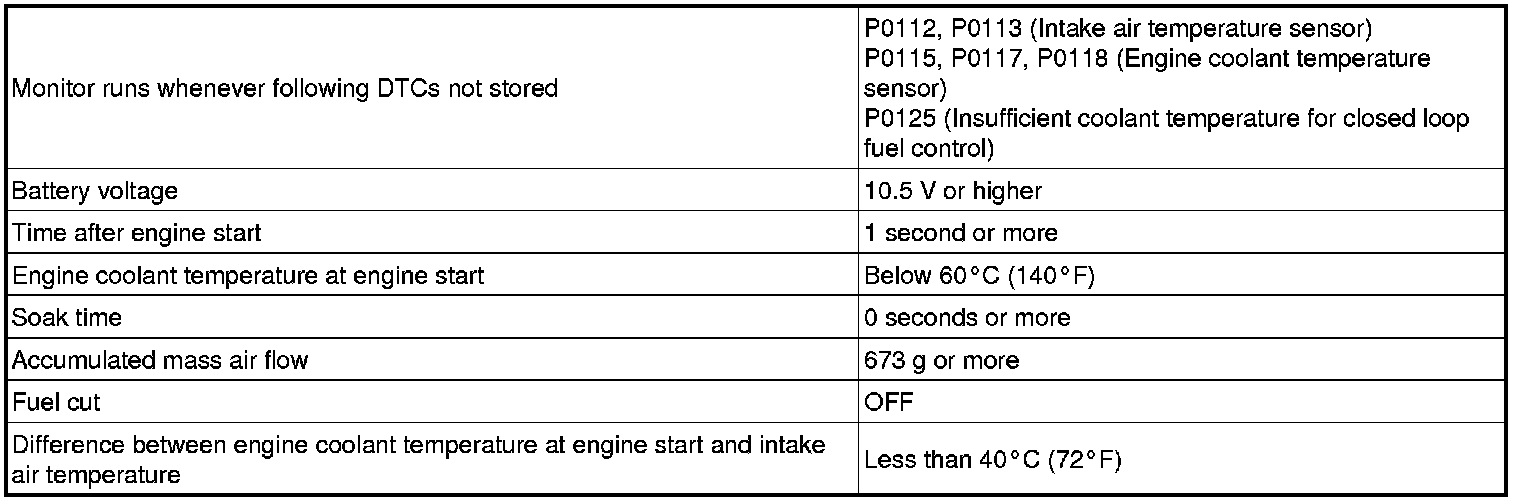

Engine Coolant Temperature Sensor Cold Start Monitor

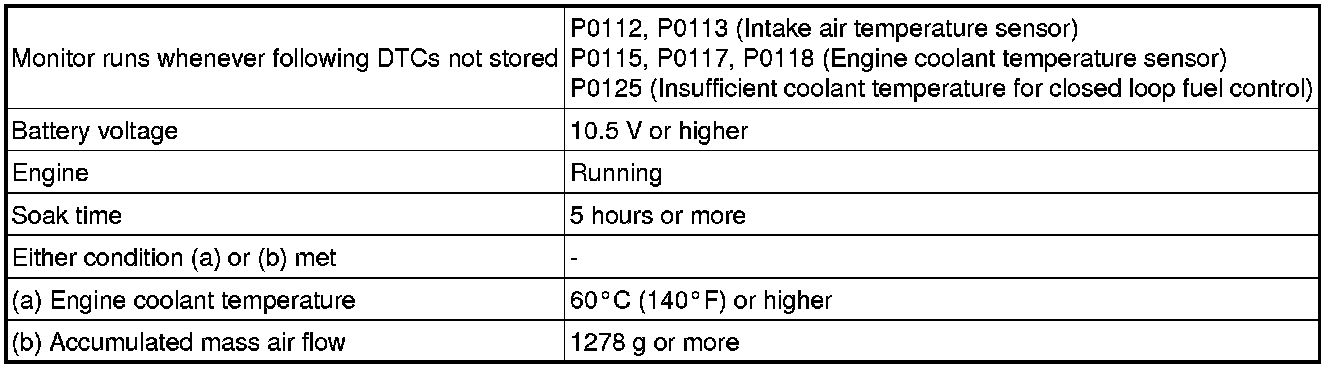

Engine Coolant Temperature Sensor Soak Monitor





TYPICAL MALFUNCTION THRESHOLDS

Engine Coolant Temperature Sensor Cold Start Monitor





Engine Coolant Temperature Sensor Soak Monitor





COMPONENT OPERATING RANGE

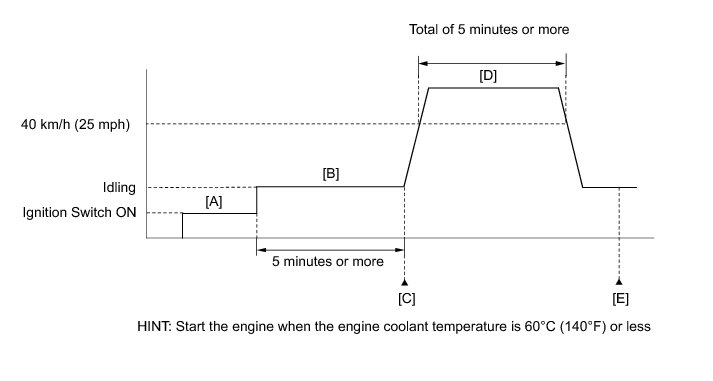

CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the ignition switch to ON and turn the Techstream on.

3. Enter the following menus: Powertrain / Engine / Data List / Coolant Temp.

4. Check that the coolant temperature is 60°C (140°F) or less.

5. Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation).

6. Turn the ignition switch off and wait for at least 30 seconds.

7. Turn the ignition switch to ON and turn the Techstream on [A].

8. Start the engine and idle it for 5 minutes or more [B].

HINT
If the engine coolant temperature does not change by 5°C (9°F) or more, the engine coolant temperature sensor is malfunctioning. It is not necessary to continue this procedure.

9. Enter the following menus: Powertrain / Engine / Trouble Codes [C].

10. Read the pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

12. Input the DTC: P0116.

13. Check the DTC judgment result.





HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [D] and [E].

14. Drive the vehicle at 40 km/h (25 mph) or more for a total of 5 minutes or more [D].

CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT
In the event of the driving pattern being interrupted (possibly due to factors such as traffic conditions), the driving pattern can be resumed.

15. Check the DTC judgment result again [E].

HINT
If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [D] and [E] again.

16. If no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

INSPECTION PROCEDURE

HINT
- If DTC P0115, P0117, P0118 or P0125 is stored simultaneously with DTC P0116, the engine coolant temperature sensor may have an open or short circuit. Troubleshoot those DTCs first.
- Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1. CHECK FOR ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0116)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

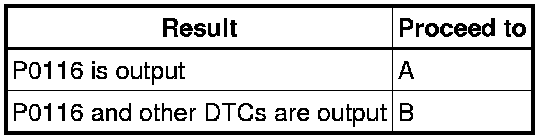

Result





HINT
If any DTCs other than P0116 are output, perform troubleshooting for those DTCs first.

B -- GO TO DTC CHART Engine Control - SFI System
A -- Continue to next step.

2. INSPECT THERMOSTAT

(a) Remove the thermostat Removal.

(b) Measure the valve opening temperature of the thermostat.

Standard opening temperature:

80 to 84°C (176 to 183°F)

HINT
In addition to the above check, confirm that the valve is completely closed when the temperature is below the standard range.

(c) Reinstall the thermostat Installation.

NG -- REPLACE THERMOSTAT Removal

OK -- REPLACE ENGINE COOLANT TEMPERATURE SENSOR Removal
