P0014

2AR-FE ENGINE CONTROL: SFI SYSTEM: P0014, P0015: Camshaft Position "B" - Timing Over-Advanced or System Performance (Bank 1)
P0015 - Camshaft Position "B" - Timing Over-Retarded (Bank 1)

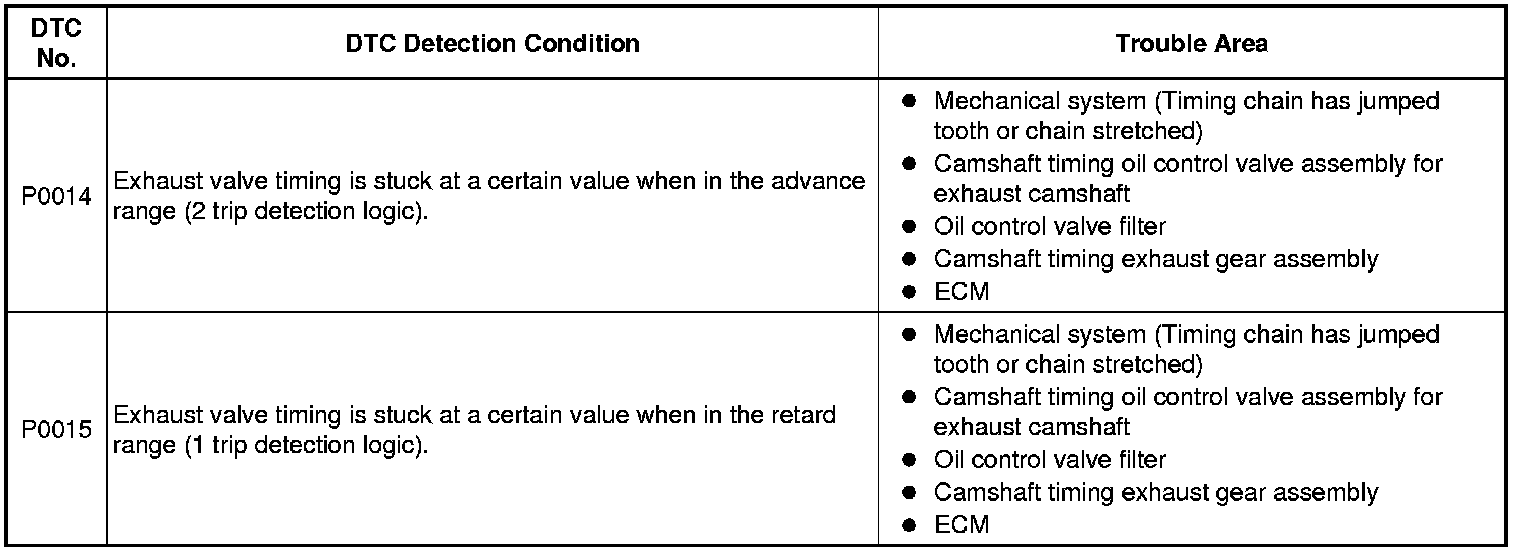

DESCRIPTION

HINT
If DTC P0014 or P0015 is output, check the VVT (Variable Valve Timing) system.

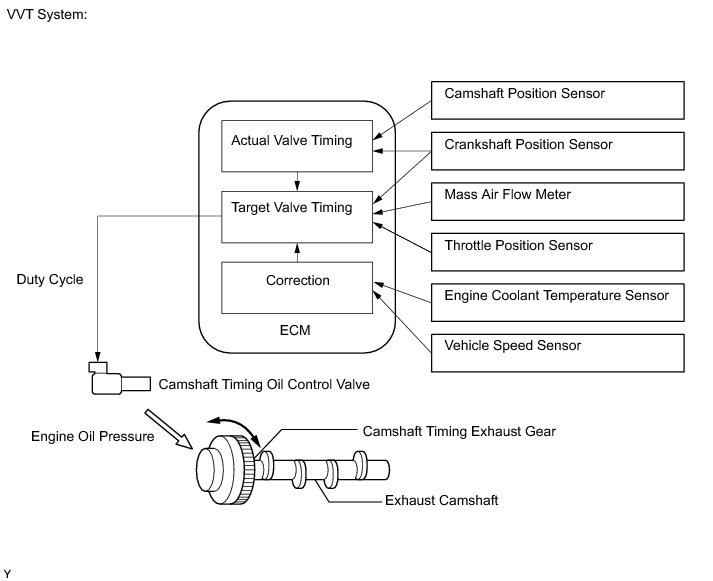

The Variable Valve Timing (VVT) system includes the ECM, camshaft timing oil control valve and VVT controller. The ECM sends a target duty cycle control signal to the camshaft timing oil control valve. This control signal regulates the oil pressure supplied to the VVT controller. Camshaft timing control is performed according to engine operating conditions such as the intake air volume, throttle valve position and engine coolant temperature. The ECM controls the camshaft timing oil control valve based on the signals transmitted by several sensors. The VVT controller regulates the exhaust camshaft angle using oil pressure through the camshaft timing oil control valve. As a result, the relative positions of the camshaft and crankshaft are optimized, the engine torque and fuel economy improve, and the exhaust emissions decrease under overall driving conditions. The ECM detects the actual exhaust valve timing using signals from the camshaft and crankshaft position sensors and performs feedback control. This is how the target exhaust valve timing is verified by the ECM.









MONITOR DESCRIPTION

1. The ECM optimizes the exhaust valve timing using the VVT (Variable Valve Timing) system to control the exhaust camshaft. The VVT system includes the ECM, camshaft timing oil control valve and VVT controller.

2. The ECM sends a target duty cycle control signal to the camshaft timing oil control valve. This control signal regulates the oil pressure supplied to the VVT controller. The VVT controller can advance or retard the exhaust camshaft.

If the difference between the target and actual exhaust valve timing is large, and changes in actual exhaust valve timing are small, the ECM interprets this as a VVT controller being stuck and stores a DTC.

- Example:

- A DTC is stored when the following conditions 1 and 2 are met for 10 seconds or more:

- 1. It takes 5 seconds or more to change the valve timing by 5°CA.

- 2. After condition 1 is met, the camshaft timing oil control valve is forcibly activated for 10 seconds.

3. These DTCs indicate that the VVT controller cannot operate properly due to camshaft timing oil control valve malfunctions or the presence of foreign objects in the camshaft timing oil control valve.

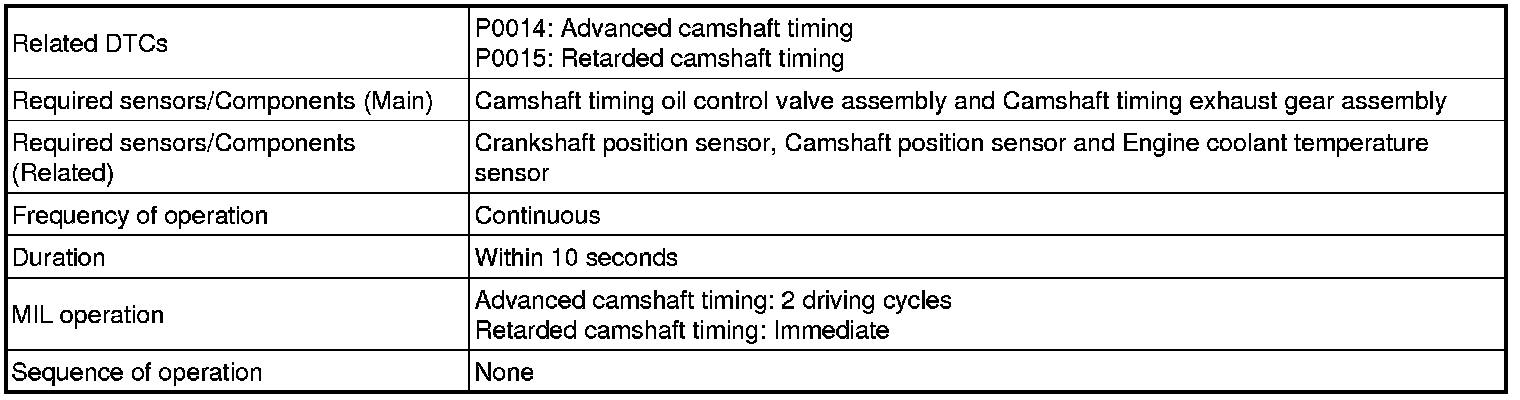

MONITOR STRATEGY

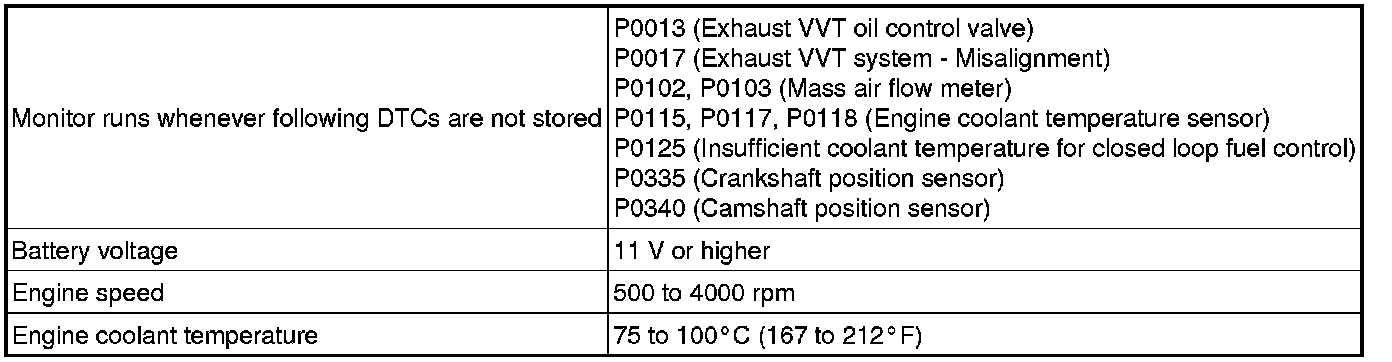

TYPICAL ENABLING CONDITIONS

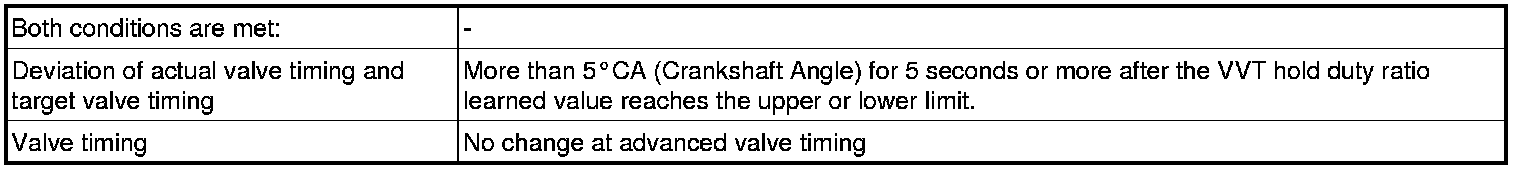

TYPICAL MALFUNCTION THRESHOLDS

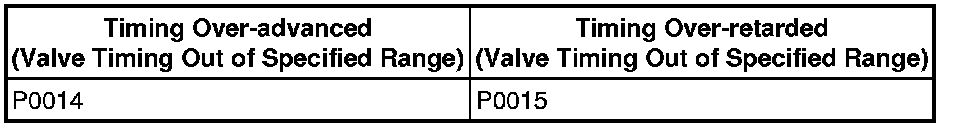

Advanced Camshaft Timing





Retarded Camshaft Timing





If the difference between the target and actual camshaft timing is more than the specified value, the ECM operates the VVT actuator for 10 seconds by applying and releasing oil pressure. Then, the ECM monitors the camshaft timing change for 10 seconds.

MONITOR RESULT

Refer to detailed information in Checking Monitor Status Mode 6 Data.

P0014, P0015: Exhaust Gas Recirculation/VVT / EX VVT STUCK B1

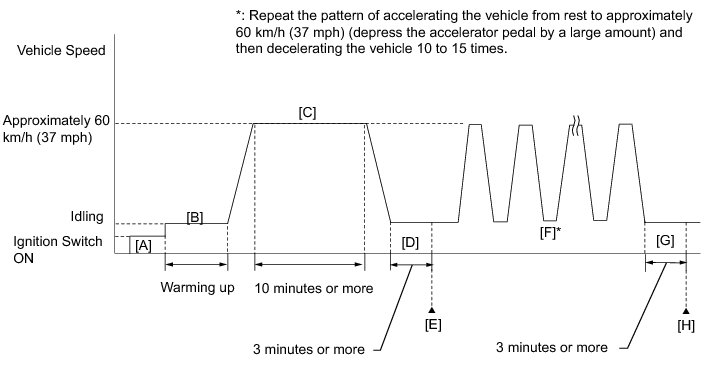

CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the ignition switch to ON and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation).

4. Turn the ignition switch off and wait for at least 30 seconds.

5. Turn the ignition switch to ON and turn the Techstream on [A].

6. Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [B].

7. Drive the vehicle at approximately 60 km/h (37 mph) for 10 minutes or more [C].

CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

8. Idle the engine for 3 minutes or more [D].

9. Enter the following menus: Powertrain / Engine / Trouble Codes [E].

10. Read the pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

12. Input the DTC: P0014 or P0015.

13. Check the DTC judgment result.





HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [F] through [H].

14. Repeat the pattern of accelerating the vehicle from rest to approximately 60 km/h (37 mph) and then decelerating the vehicle 10 to 15 times [F].

CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT
Depress the accelerator pedal by a large amount.

15. Idle the engine for 3 minutes or more [G].

16. Enter the following menus: Powertrain / Engine / Trouble Codes [H].

17. Read the pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

18. Check the DTC judgment result again.

HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform the following procedure.

19. Perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

WIRING DIAGRAM

Refer to DTC P0013 P0013.

INSPECTION PROCEDURE

HINT






Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1. CHECK FOR ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0014 OR P0015)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

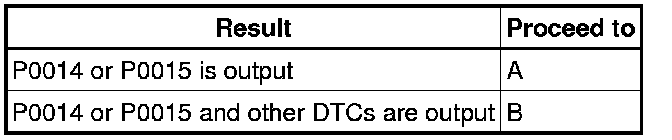

Result





HINT
If any DTCs other than P0014 or P0015 are output, troubleshoot those DTCs first.

B -- GO TO DTC CHART Engine Control - SFI System
A -- Continue to next step.

2. PERFORM ACTIVE TEST USING TECHSTREAM (OPERATE CAMSHAFT TIMING OIL CONTROL VALVE)

(a) Connect the Techstream to the DLC3.

(b) Start the engine.

(c) Turn the Techstream on.

(d) Warm up the engine.

(e) Turn the A/C on.

(f) Enter the following menus: Powertrain / Engine / Active Test / Control the VVT Exhaust Linear (Bank1).

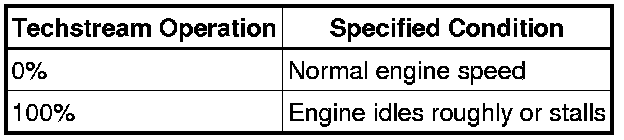

(g) Check the engine speed while operating the camshaft timing oil control valve using the Techstream.

OK:





HINT
Refer to "Data List / Active Test" [VVT Ex OCV Duty #1 and VVT Ex Chg Angle #1] Data List / Active List.

NG -- CHECK VALVE TIMING (CHECK FOR LOOSENESS IN TIMING CHAIN AND WHETHER TIMING CHAIN HAS JUMPED TOOTH)
OK -- Continue to next step.

3. CHECK WHETHER DTC OUTPUT RECURS (DTC P0014 OR P0015)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Clear the DTCs DTC Check / Clear.

(e) Warm up the engine.

(f) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(g) Read the output pending DTCs using the Techstream.

OK:

No pending DTC output.

NG -- CHECK VALVE TIMING (CHECK FOR LOOSENESS IN TIMING CHAIN AND WHETHER TIMING CHAIN HAS JUMPED TOOTH)

OK -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems

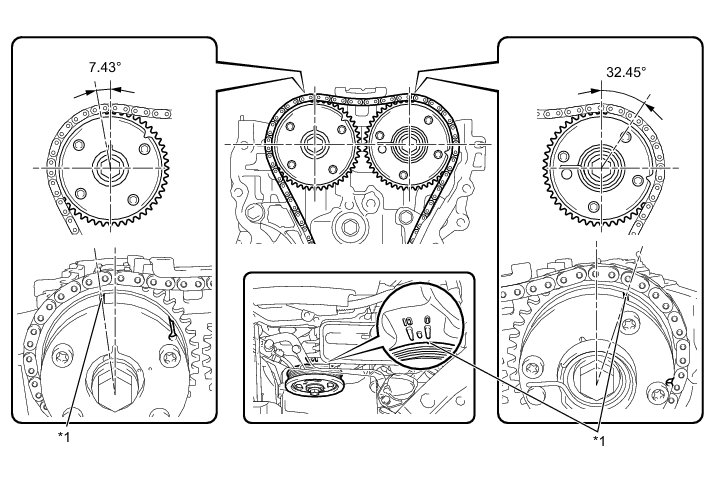

4. CHECK VALVE TIMING (CHECK FOR LOOSENESS IN TIMING CHAIN AND WHETHER TIMING CHAIN HAS JUMPED TOOTH)





Text in Illustration





(a) Remove the cylinder head cover.

(b) Turn the crankshaft pulley and align its groove with the "0" timing mark of the timing chain cover.

(c) Check that the timing marks of the camshaft timing gear and camshaft timing exhaust gear are at the positions shown in the illustration.

HINT
If the timing marks are not as shown, turn the crankshaft one revolution clockwise.

OK:

Timing marks on camshaft timing gear and camshaft timing exhaust gear are aligned as shown in the illustration.

NG -- ADJUST VALVE TIMING Installation
OK -- Continue to next step.

5. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (FOR EXHAUST CAMSHAFT)

(a) Inspect the camshaft timing oil control valve assembly Inspection.

NG -- REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY Removal
OK -- Continue to next step.

6. INSPECT OIL CONTROL VALVE FILTER

(a) Remove the oil control valve filter Disassembly.

(b) Check that the filter is not clogged.

OK:

Filter is not clogged.

NG -- CLEAN OR REPLACE OIL CONTROL VALVE FILTER
OK -- Continue to next step.

7. REPLACE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY

(a) Replace the camshaft timing exhaust gear assembly Removal.

NEXT -- Continue to next step.

8. CHECK WHETHER DTC OUTPUT RECURS

(a) Perform the Confirmation Driving Pattern.

OK:

No pending DTC is output and All Readiness is NORMAL.

HINT
DTC P0014 or P0015 is stored when foreign objects in the engine oil are caught in some parts of the system. These codes will remain stored even if the system returns to normal after a short time. These foreign objects are then captured by the oil filter, thus eliminating the source of the problem.

NG -- REPLACE ECM Removal

OK -- END
