BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1413, C1275, C1276, C1414: Front Speed Sensor RH Output Malfunction
C1414 - Front Speed Sensor LH Output Malfunction

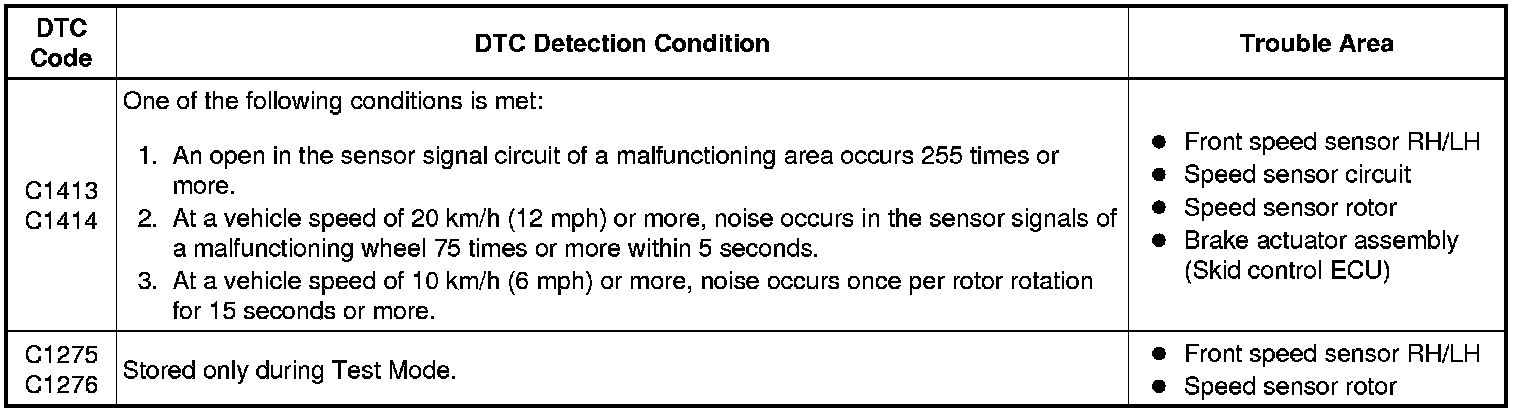

DESCRIPTION

Refer to DTCs C1401 and C1402 C1401.





HINT
* DTCs C1413 and C1275 are for the front speed sensor RH.
* DTCs C1414 and C1276 are for the front speed sensor LH.

WIRING DIAGRAM

Refer to DTCs C1401 and C1402 C1401.

INSPECTION PROCEDURE

NOTICE:
When replacing the brake actuator assembly, perform calibration Programming and Relearning.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (MOMENTARY INTERRUPTION) C1405

NG -- CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - FRONT SPEED SENSOR)
OK -- Continue to next step.

2. READ VALUE USING TECHSTREAM (FR/FL WHEEL SPEED) C1401

NG -- CHECK FRONT SPEED SENSOR INSTALLATION
OK -- Continue to next step.

3. PERFORM TEST MODE (SIGNAL CHECK)

(a) Perform the sensor check in the Test Mode procedure Test Mode Procedure.

OK:

All Test Mode DTCs are cleared.

NG -- CHECK FRONT SPEED SENSOR INSTALLATION
OK -- Continue to next step.

4. RECONFIRM DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Turn the ignition switch off.

(c) Start the engine.

(d) Drive the vehicle at a speed of 40 km/h (25 mph) or more for at least 60 seconds.

(e) Check if the same DTC is output Reading and Clearing Diagnostic Trouble Codes.

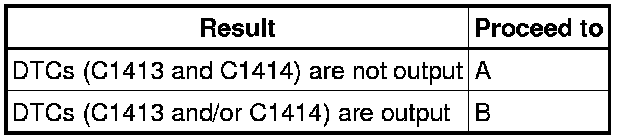

Result





HINT
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next suspected area Problem Symptoms Table.

B -- REPLACE FRONT SPEED SENSOR

A -- CHECK FOR INTERMITTENT PROBLEMS (SYMPTOM SIMULATION) How To Proceed With Troubleshooting

5. CHECK FRONT SPEED SENSOR INSTALLATION C1401

NG -- INSTALL FRONT SPEED SENSOR CORRECTLY Installation
OK -- Continue to next step.

6. INSPECT FRONT SPEED SENSOR TIP

(a) Turn the ignition switch off.

(b) Remove the front speed sensor Removal.

(c) Check the speed sensor tip.

OK:

No scratches, oil, or foreign matter on the sensor tip.

NOTICE:
* If no damage to the speed sensor tip is found during this inspection, do not replace the speed sensor.
* Check the speed sensor signal after cleaning or replacement Test Mode Procedure.

NG -- CLEAN OR REPLACE FRONT SPEED SENSOR
OK -- Continue to next step.

7. INSPECT FRONT SPEED SENSOR ROTOR C1401

NG -- CLEAN OR REPLACE FRONT SPEED SENSOR ROTOR
OK -- Continue to next step.

8. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - FRONT SPEED SENSOR) C1405

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

9. INSPECT SKID CONTROL ECU (SENSOR INPUT) C1405

NG -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal
OK -- Continue to next step.

10. RECONFIRM DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Turn the ignition switch off.

(c) Start the engine.

(d) Drive the vehicle at a speed of 40 km/h (25 mph) or more for at least 60 seconds.

(e) Check if the same DTC is output Reading and Clearing Diagnostic Trouble Codes.

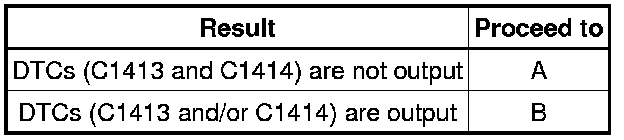

Result





HINT
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next suspected area Problem Symptoms Table.

B -- CHECK FOR INTERMITTENT PROBLEMS (SYMPTOM SIMULATION)
A -- Continue to next step.

11. REPLACE FRONT SPEED SENSOR C1401

NEXT -- Continue to next step.

12. RECONFIRM DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Turn the ignition switch off.

(c) Start the engine.

(d) Drive the vehicle at a speed of 40 km/h (25 mph) or more for at least 60 seconds.

(e) Check if the same DTC is output Reading and Clearing Diagnostic Trouble Codes.

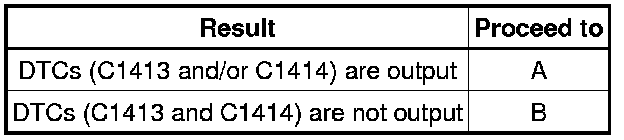

Result





HINT
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next suspected area Problem Symptoms Table.

B -- REPLACE FRONT AXLE HUB SUB-ASSEMBLY

A -- END
