B1903





SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: B1900/73-B1903/73:

B1903/73 - Short to B+ in Front Pretensioner Squib RH Circuit

DESCRIPTION

The front pretensioner squib RH circuit consists of the center airbag sensor and front seat outer belt RH.

This circuit instructs the SRS to deploy when deployment conditions are met.

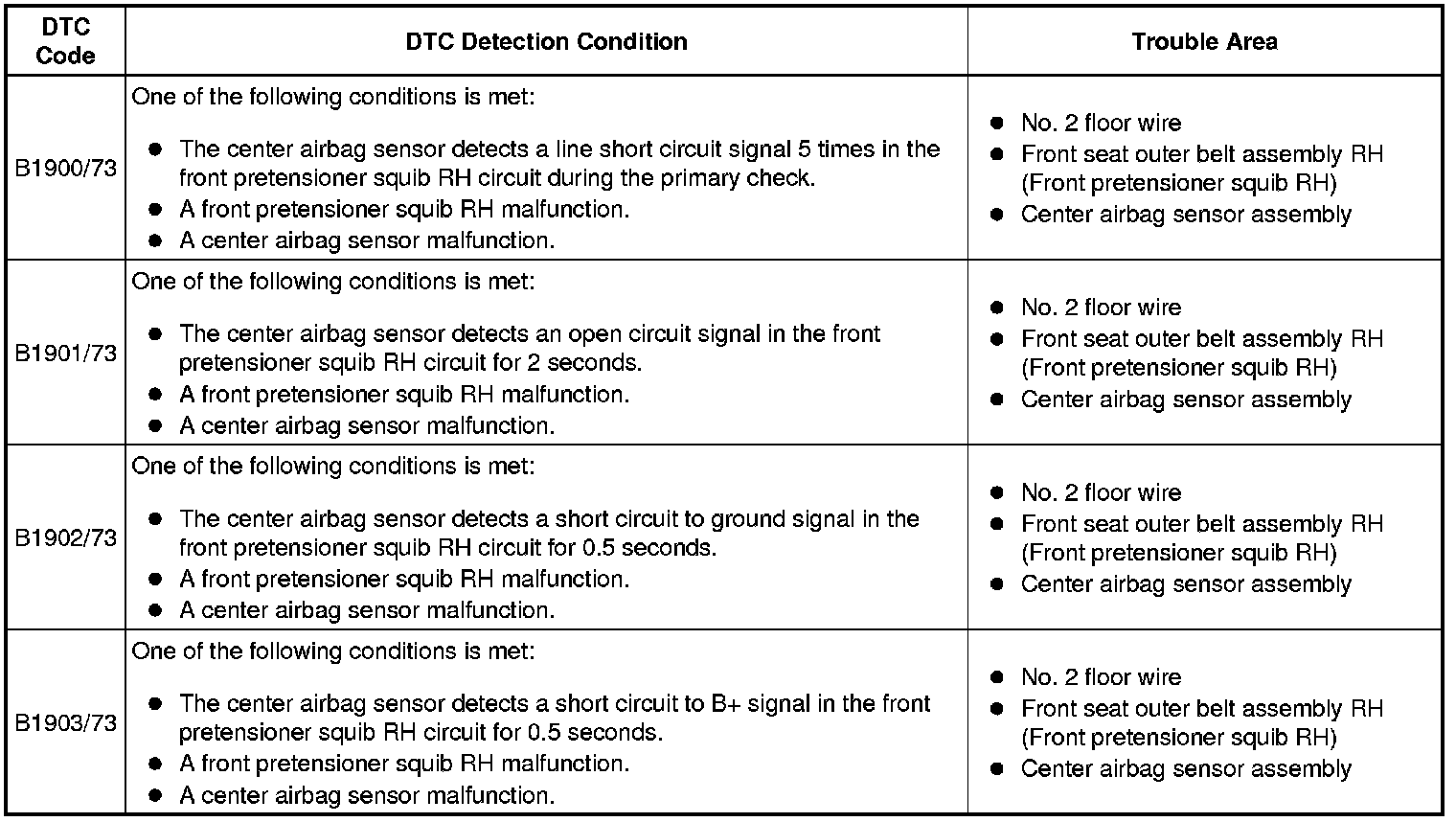

These DTCs are stored when a malfunction is detected in the front pretensioner squib RH circuit.

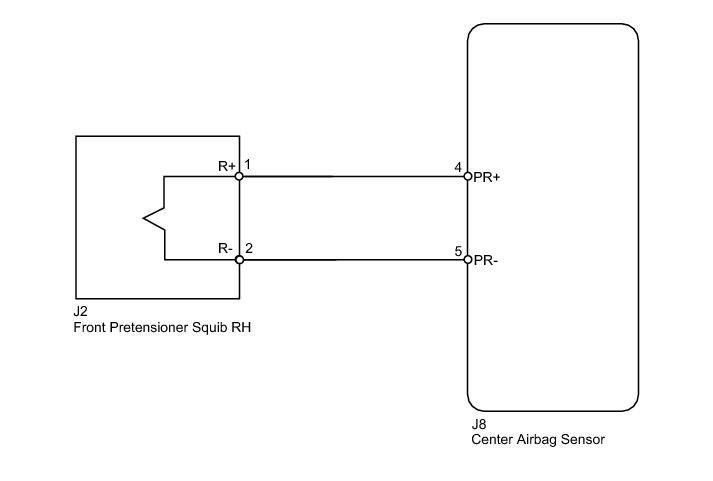

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
When disconnecting the cable from the negative (-) battery terminal while performing repairs, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

HINT
To perform the simulation method, enter check mode (signal check) with the Techstream Check Mode Procedure, and then wiggle each connector of the airbag system or drive the vehicle on various types of road Diagnosis System.

PROCEDURE

1. CHECK FRONT SEAT OUTER BELT RH (FRONT PRETENSIONER SQUIB RH)

(a) Turn the ignition switch off.





(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Disconnect the connectors from the front seat outer belt RH.

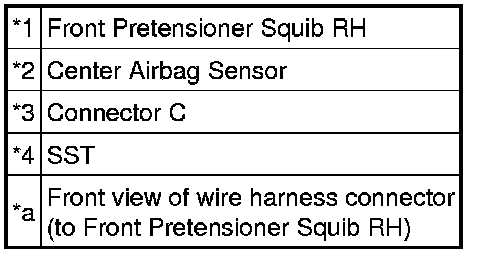

(d) Connect the white wire side of SST (resistance: 2.1 Ohms) to connector C.

CAUTION:
Never connect the tester to the front seat outer belt RH (front pretensioner squib RH) for measurement, as this may lead to a serious injury due to airbag deployment.

NOTICE:
* Do not forcibly insert SST into the terminals of the connector when connecting SST.
* Insert SST straight into the terminals of the connector.

SST : 09843-18061

(e) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(f) Turn the ignition switch to ON, and wait for at least 60 seconds.

(g) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(h) Turn the ignition switch off.

(i) Turn the ignition switch to ON, and wait for at least 60 seconds.

(j) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B1900, B1901, B1902 or B1903 is not output.

HINT
Codes other than DTC B1900, B1901, B1902 and B1903 may be output at this time, but they are not related to this check.

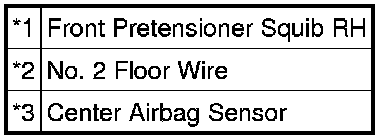

Text in Illustration





NG -- CHECK CONNECTOR

OK -- REPLACE FRONT SEAT OUTER BELT ASSEMBLY RH Removal

2. CHECK CONNECTOR

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Disconnect SST from connector C.

(d) Disconnect the connectors from the center airbag sensor.

(e) Check that the connectors (on the center airbag sensor side and front seat outer belt RH side) are not damaged.

OK:

The lock button is not disengaged, and the claw of the lock is not deformed or damaged.





Text in Illustration





NG -- REPLACE NO. 2 FLOOR WIRE
OK -- Continue to next step.

3. CHECK NO. 2 FLOOR WIRE (FRONT PRETENSIONER SQUIB RH CIRCUIT)

(a) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

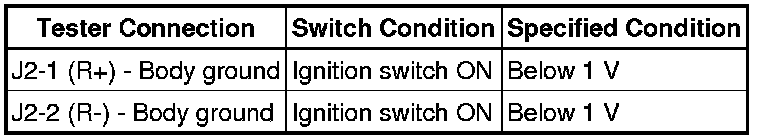

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(c) Turn the ignition switch off.

(d) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

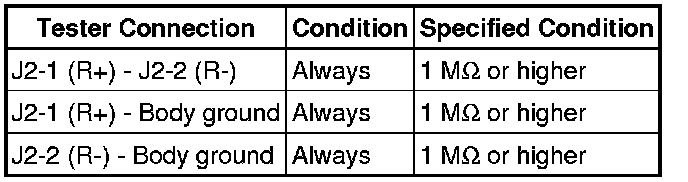

(e) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(f) Release the activation prevention mechanism built into connector B Diagnosis System.

(g) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE NO. 2 FLOOR WIRE
OK -- Continue to next step.

4. CHECK CENTER AIRBAG SENSOR

(a) Connect the connectors to the front seat outer belt RH and center airbag sensor.





(b) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(c) Turn the ignition switch to ON, and wait for at least 60 seconds.

(d) Clear the DTCs stored in memory Reading and Clearing Diagnostic Trouble Codes.

(e) Turn the ignition switch off.

(f) Turn the ignition switch to ON, and wait for at least 60 seconds.

(g) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B1900, B1901, B1902 or B1903 is not output.

HINT
Codes other than DTC B1900, B1901, B1902 and B1903 may be output at this time, but they are not related to this check.

Text in Illustration





NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal

OK -- USE SIMULATION METHOD TO CHECK Diagnosis System
