Installation

AUDIO / VISUAL: LUGGAGE SPEAKER: INSTALLATION

1. INSTALL BOX SPEAKER ASSEMBLY

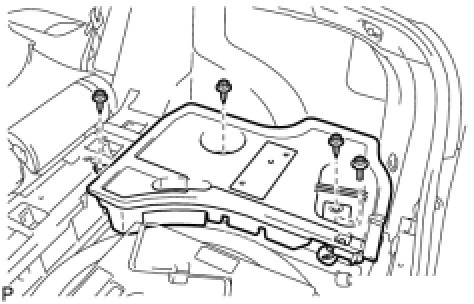

(a) Install the box speaker assembly with the 3 screws and the bolt.

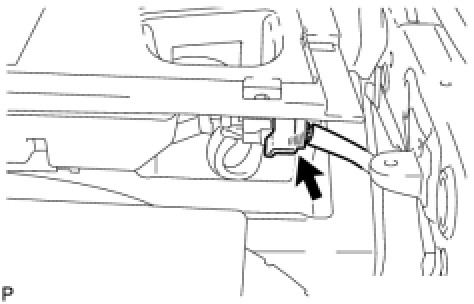

(b) Connect the connector.





2. INSTALL NO. 1 DECK BOARD Installation

3. INSTALL BACK DOOR SCUFF PLATE Installation

4. INSTALL DECK BOARD SUB-ASSEMBLY
