WIPER AND WASHER: REAR WIPER MOTOR: INSTALLATION

INSTALLATION





1. INSTALL REAR WIPER MOTOR GROMMET
(a) Install the rear wiper motor grommet with the mark directed up.





2. INSTALL REAR WIPER MOTOR
(a) Install the rear wiper motor with the 3 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(b) Connect the connector.
3. INSTALL REAR WIPER ARM AND BLADE ASSEMBLY





(a) Scrape any metal powder off the serrated part of the wiper arm with a round file or the equivalent (when reinstalling).
(b) Clean the wiper pivot serrations with a wire brush.
(c) Operate the wiper, then stop the windshield wiper motor in the automatic stop position.

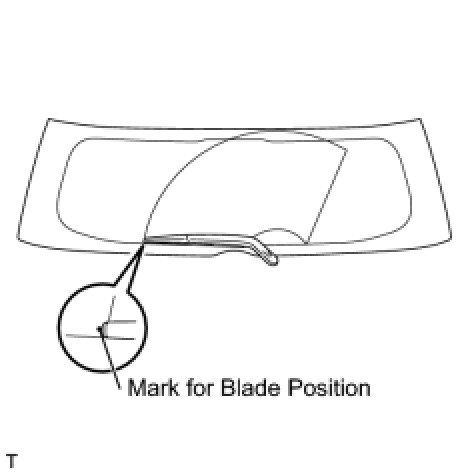

(d) Install the rear wiper arm into the position shown in the illustration with the nut.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
HINT:
Hold the arm hinge down by hand while tightening the nut.





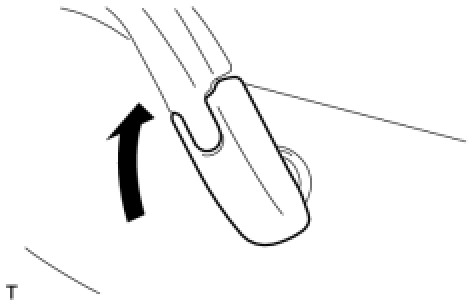

(e) Close the rear wiper arm head cap.
4. INSTALL BACK DOOR TRIM BOARD ASSEMBLY Reassembly
