E351 MANUAL TRANSAXLE: DIFFERENTIAL OIL SEAL: REPLACEMENT

REPLACEMENT

1. DRAIN TRANSAXLE OIL
(a) Remove the filler plug and gasket.
(b) Remove the drain plug and gasket, and then drain the manual transaxle oil.
(c) Install a new gasket and the drain plug.
Torque: 49 Nm (500 kgf-cm, 36 ft-lbf)
2. REMOVE FRONT WHEELS
3. REMOVE FRONT AXLE HUB NUT LH Removal
4. REMOVE FRONT AXLE HUB NUT RH
HINT: Perform the same procedure as for the LH side.

5. REMOVE FRONT SPEED SENSOR LH Removal
6. REMOVE FRONT SPEED SENSOR RH
HINT: Perform the same procedure as for the LH side.

7. SEPARATE FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY LH Removal
8. SEPARATE FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY RH
HINT: Perform the same procedure as for the LH side.

9. SEPARATE TIE ROD END SUB-ASSEMBLY LH Removal
10. SEPARATE TIE ROD END SUB-ASSEMBLY RH
HINT: Perform the same procedure as for the LH side.

11. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH Removal
12. SEPARATE FRONT STABILIZER LINK ASSEMBLY RH
HINT: Perform the same procedure as for the LH side.

13. SEPARATE FRONT AXLE ASSEMBLY LH Removal
14. SEPARATE FRONT AXLE ASSEMBLY RH
HINT: Perform the same procedure as for the LH side.

15. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH Removal
16. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH Removal

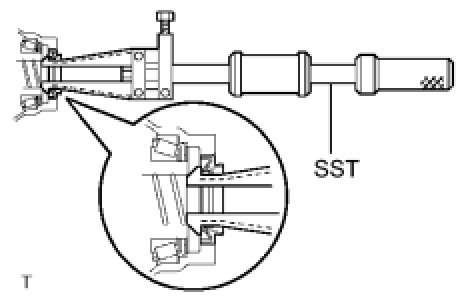

17. REMOVE TRANSAXLE CASE OIL SEAL LH
(a) Using SST, tap out the transaxle case oil seal.
SST: 09308-00010

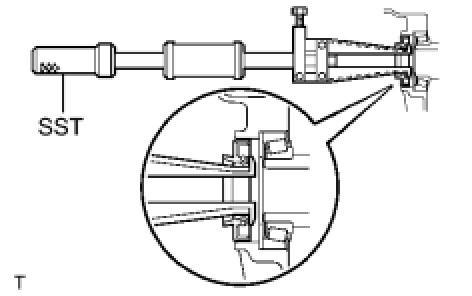

18. REMOVE TRANSAXLE CASE OIL SEAL RH
SST: 09308-00010
(a) Using SST, tap out the transaxle case oil seal.

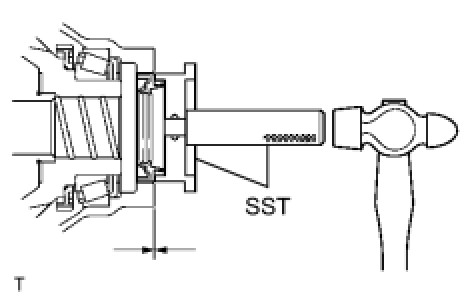

19. INSTALL TRANSAXLE CASE OIL SEAL LH
(a) Coat the lip of a new oil seal with MP grease.





(b) Using SST and a hammer, tap in the oil seal.
SST: 09608-10010
SST: 09950-70010
09951-07200
Standard depth:
3.0 to 4.0 mm (0.118 to 0.157 in.)
NOTICE: Be careful not to damage the lip of the oil seal.

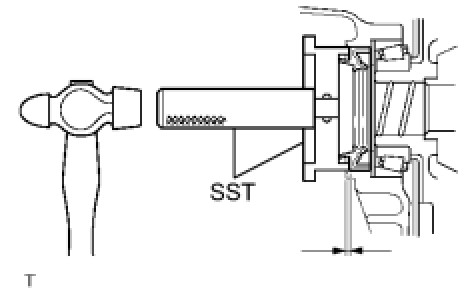

20. INSTALL TRANSAXLE CASE OIL SEAL RH
(a) Coat the lip of a new transaxle case oil seal with MP grease.
(b) Using SST and a hammer, tap in the oil seal.
SST: 09608-10010
SST: 09950-70010
09951-07200
Standard depth:
- 0.5 to 0.5 mm (- 0.020 to 0.020 in.)
NOTICE: Be careful not to damage the lip of the oil seal.

21. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH Installation
22. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH Installation
23. INSTALL FRONT AXLE ASSEMBLY LH Installation
24. INSTALL FRONT AXLE ASSEMBLY RH
HINT: Perform the same procedure as for the LH side.

25. INSTALL FRONT STABILIZER LINK ASSEMBLY LH Installation
26. INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT: Perform the same procedure as for the LH side.

27. INSTALL TIE ROD END SUB-ASSEMBLY LH Installation
28. INSTALL TIE ROD END SUB-ASSEMBLY RH
HINT: Perform the same procedure as for the LH side.

29. INSTALL FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY LH Installation
30. INSTALL FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY RH
HINT: Perform the same procedure as for the LH side.

31. INSTALL FRONT SPEED SENSOR LH Installation
32. INSTALL FRONT SPEED SENSOR RH
HINT: Perform the same procedure as for the LH side.

33. INSTALL FRONT AXLE HUB NUT LH Installation
34. INSTALL FRONT AXLE HUB NUT RH
HINT: Perform the same procedure as for the LH side.

35. INSTALL FRONT WHEELS
Torque: 103 Nm (1050 kgf-cm, 76 ft-lbf)
36. ADD TRANSAXLE OIL
37. INSPECT AND ADJUST MANUAL TRANSAXLE OIL Testing and Inspection
38. INSPECT FOR TRANSAXLE OIL LEAK
39. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
Front Wheel Alignment
