SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: INSTALLATION

INSTALLATION
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.
HINT: The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY RH
(a) Check that the ignition switch is off.
(b) Check that the battery negative (-) terminal is disconnected.
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

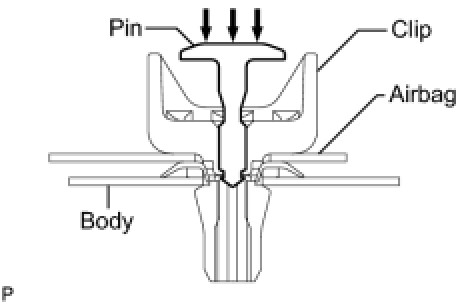

(c) Install 4 new clips and 4 new spacers to the curtain shield airbag assembly as shown in the illustration.

NOTICE:
- Do not push in the pin.
- Make sure that the clips are installed in the correct direction.
- Make sure that the spacers are installed properly, in the correct direction, and that they are not damaged.

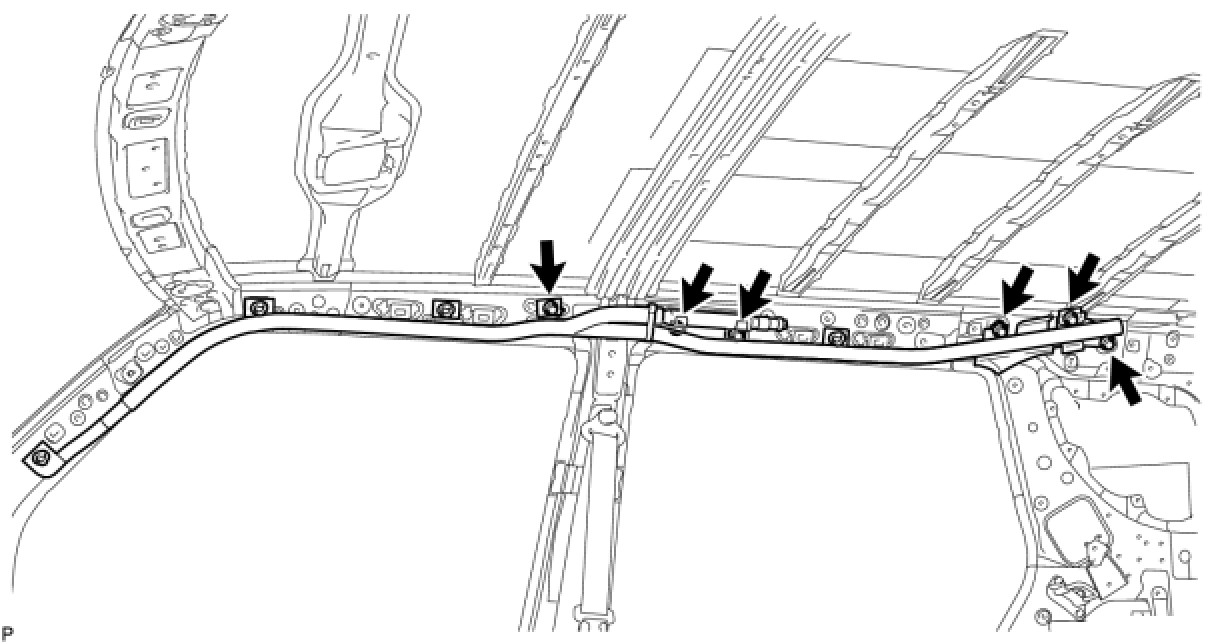

(d) Install the curtain shield airbag assembly with 6 new bolts.





Torque: 13 Nm (133 kgf-cm, 10 ft-lbf)
NOTICE: Do not twist the curtain shield airbag assembly when installing it.

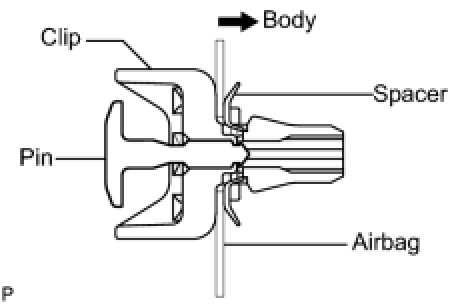

(e) Install the 4 clips with the curtain shield airbag assembly to the body panel as shown in the illustration.
NOTICE: Make sure that the pins of the clips are pushed in firmly.

(f) Mark the clips.
HINT: Mark the clips to make sure that they are not reused.

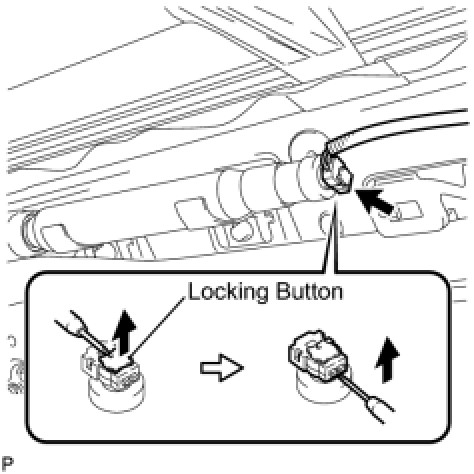

(g) Connect the airbag connector.
NOTICE: Securely lock the locking button.

2. INSTALL ROOF HEADLINING Installation
3. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY Installation
4. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
5. INSTALL COMBINATION METER ASSEMBLY Installation
6. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Installation
7. INSTALL INSTRUMENT CLUSTER FINISH LOWER PANEL Installation
8. INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY Installation
9. INSTALL MAP LIGHT ASSEMBLY Installation
10. INSTALL ROOM LIGHT ASSEMBLY Installation
11. INSTALL VISOR HOLDER Installation
12. INSTALL VISOR ASSEMBLY RH Installation
13. INSTALL VISOR ASSEMBLY LH Installation
14. INSTALL ASSIST GRIP Installation
15. INSTALL FRONT PILLAR GARNISH RH Installation
16. INSTALL FRONT PILLAR GARNISH LH Installation
17. INSTALL CENTER PILLAR UPPER GARNISH RH Installation
18. INSTALL CENTER PILLAR UPPER GARNISH LH Installation
19. INSTALL CENTER PILLAR LOWER GARNISH RH Installation
20. INSTALL CENTER PILLAR LOWER GARNISH LH Installation
21. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH Installation
22. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH Installation
23. INSTALL SEAT BELT ANCHOR COVER CAP Installation
24. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH Installation
25. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH Installation
26. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH Installation
27. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH Installation
28. INSTALL REAR SEAT OUTER BELT ASSEMBLY RH Installation
29. INSTALL REAR SEAT OUTER BELT ASSEMBLY LH Installation
30. INSTALL REAR SEAT BACK HINGE Installation
31. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY Installation
32. INSTALL REAR DECK TRIM COVER Installation
33. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation
34. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation
35. INSTALL REAR DOOR SCUFF PLATE RH Installation
36. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation
37. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation
38. INSTALL COWL SIDE TRIM BOARD RH Installation
39. INSTALL COWL SIDE TRIM BOARD LH Installation
40. INSTALL FRONT DOOR SCUFF PLATE RH Installation
41. INSTALL FRONT DOOR SCUFF PLATE LH Installation
42. INSTALL REAR SEATBACK ASSEMBLY RH Installation
43. INSTALL REAR SEATBACK ASSEMBLY LH Installation
44. INSTALL REAR SEAT CUSHION WITH COVER PAD SUB-ASSEMBLY Installation
45. INSTALL DECK FLOOR BOX RH Installation
46. INSTALL DECK FLOOR BOX LH Installation
47. INSTALL REAR DECK FLOOR BOX Installation
48. INSTALL REAR FLOOR CARPET ASSEMBLY Installation
49. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
50. INSPECT SRS WARNING LIGHT
Diagnosis System
