Installation

LIGHTING: LICENSE PLATE LIGHT ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL LICENSE PLATE LIGHT BULB
(a) Install the license plate light bulb into the light socket.
(b) Turn the license plate light socket and bulb, in the direction indicated by the arrow in the illustration, to install them.





2. INSTALL LICENSE PLATE LIGHT ASSEMBLY
(a) Connect the connector.

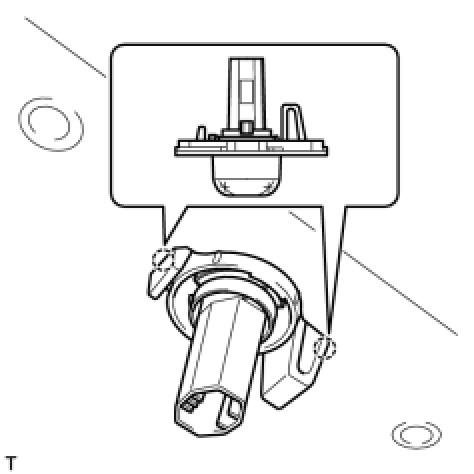

(b) Engage the 2 claws and install the license plate light, as shown in the illustration.
3. INSTALL BACK DOOR OUTSIDE GARNISH
4. INSTALL BACK DOOR TRIM BOARD ASSEMBLY Reassembly
