2AZ-FE INTAKE: AIR CLEANER AND HOSE: INSTALLATION

INSTALLATION

1. INSTALL AIR CLEANER ASSEMBLY





(a) Install the union tube.





(b) Install the No. 2 intake air resonator and then tighten the No. 2 intake air resonator hose clamp.





(c) Install the air cleaner case sub-assembly with the 3 bolts.
Torque: 7.0 Nm (71 kgf-cm, 62 in-lbf)
(d) Install the wire harness.

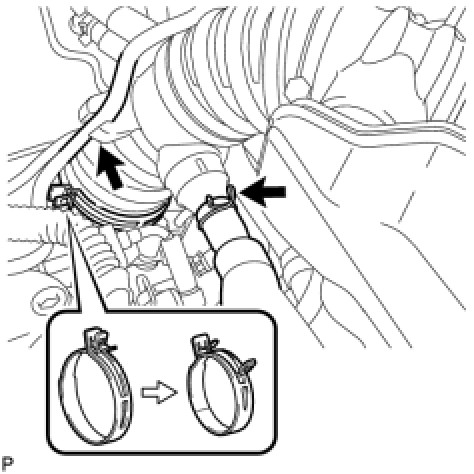

(e) Install the No. 1 air cleaner hose and then tighten the No. 1 air cleaner hose clamp.
(f) Connect the ventilation hose.
(g) Install the No. 2 fuel vapor feed hose.
(h) Install the air cleaner filter element sub-assembly.





(i) Install and lock the air cleaner cap sub-assembly and then tighten the No. 1 air cleaner hose clamp.
2. INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY Installation
3. INSTALL MASS AIR FLOW METER Installation
