SEAT: REAR SEAT ASSEMBLY (for RH Side): INSTALLATION

INSTALLATION

1. INSTALL REAR SEATBACK ASSEMBLY

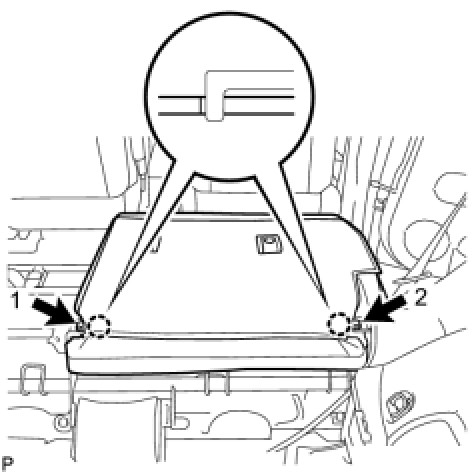

(a) Insert the 2 hooks into the rear seatback frame hole and install the rear seatback, tightening the 2 bolts in the sequence shown in the illustration.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
(b) Pull up the rear seatback.
(c) Install the rear center seat outer belt into the rear center seat shoulder belt guide.
2. INSTALL REAR SEAT CUSHION WITH COVER PAD SUB-ASSEMBLY Installation
