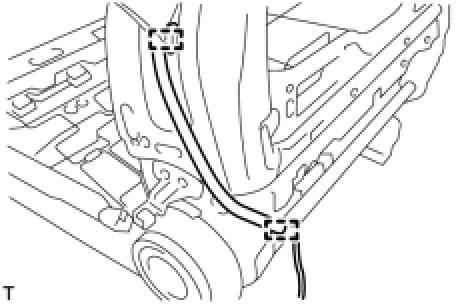

Reassembly

SEAT: FRONT SEAT ASSEMBLY: REASSEMBLY

REASSEMBLY
CAUTION: Wear protective gloves. Sharp surfaces on the front seat back frame could cause injuries to your hands.
HINT: The procedure described below is for the driver side. Use the same procedure for both the front passenger and driver sides, unless otherwise specified.

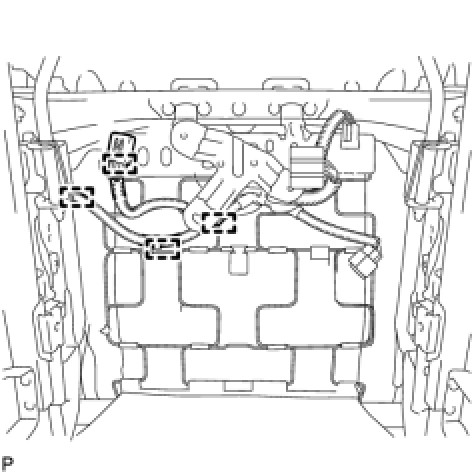

1. INSTALL FRONT SEAT WIRE (for Front Passenger Side)





(a) Install the 3 clamps and front seat wire.
2. INSTALL OCCUPANT CLASSIFICATION ECU (for Front Passenger Side) Installation
3. INSTALL SEAT POSITION SENSOR Installation
4. INSTALL SEAT SLIDE POSITION SENSOR PROTECTOR Installation
5. INSTALL FRONT SEAT CUSHION LOWER SHIELD LH

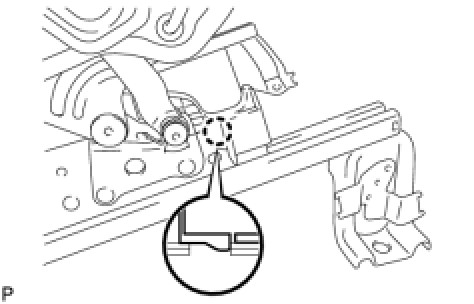

(a) Engage the claw and install the front seat cushion lower shield.
6. INSTALL FRONT SEAT CUSHION LOWER SHIELD RH
HINT: Use the same procedure as for the LH side.

7. INSTALL RECLINING ADJUSTER OUTSIDE COVER LH

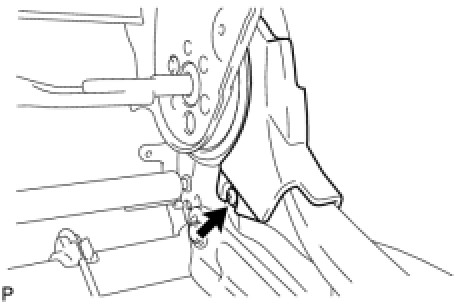

(a) Install the reclining adjuster outside cover with the screw.
8. INSTALL RECLINING ADJUSTER OUTSIDE COVER RH
HINT: Use the same procedure as for the LH side.

9. INSTALL RECLINING ADJUSTER INSIDE COVER LH

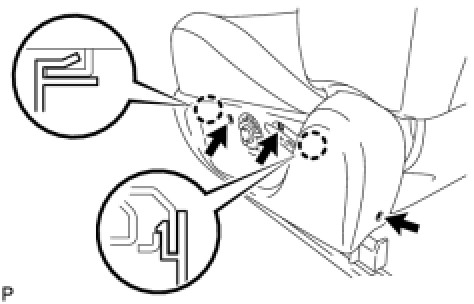

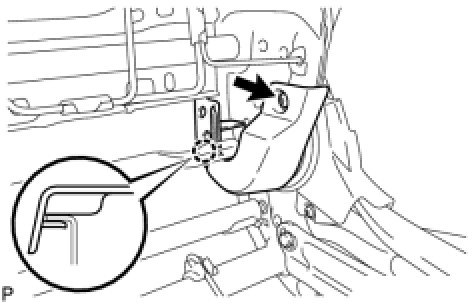

(a) Engage the claw and install the reclining adjuster inside cover.
(b) Tighten the screw.
10. INSTALL RECLINING ADJUSTER INSIDE COVER RH
HINT: Use the same procedure as for the LH side.

11. INSTALL FRONT SEAT SIDE AIRBAG ASSEMBLY





(a) Install the front seat side airbag with the 2 nuts.
Torque: 5.5 Nm (55 kgf-cm, 49 in-lbf)





(b) Install the 2 wiring harness clamps.

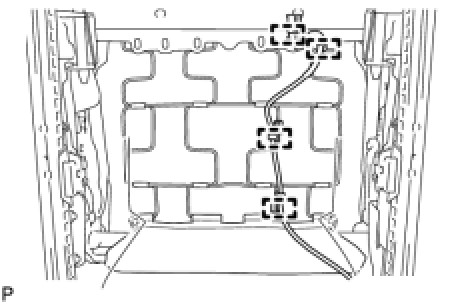

(c) Install the 4 wiring harness clamps and the airbag connector.

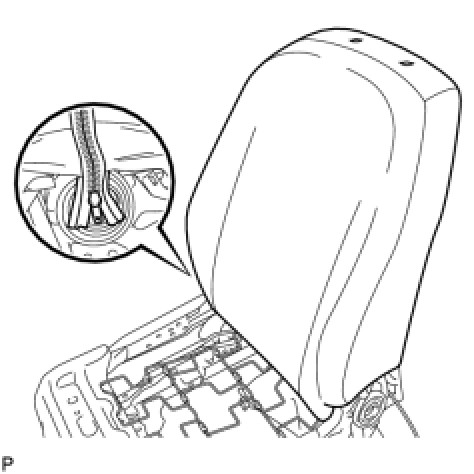

12. INSTALL FRONT SEAT BACK WITH COVER PAD





(a) Install the front seat back cover pad.
NOTICE: The fabric for fixing the airbag must mot be wrinkled when installing the front seat back cover pad.

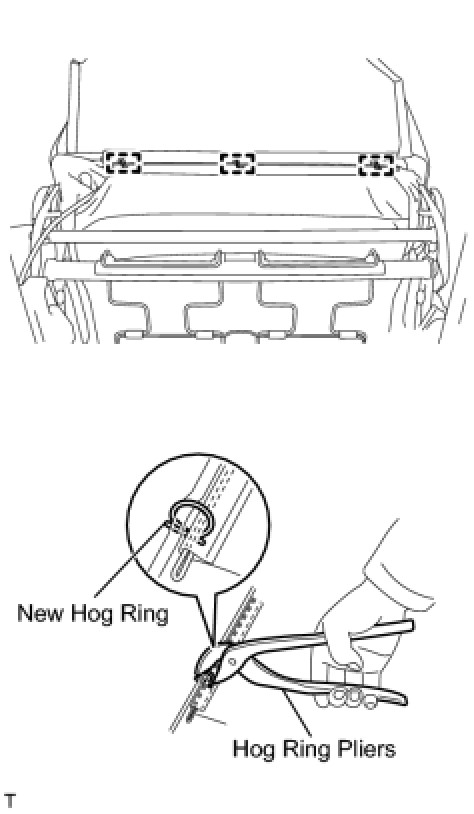

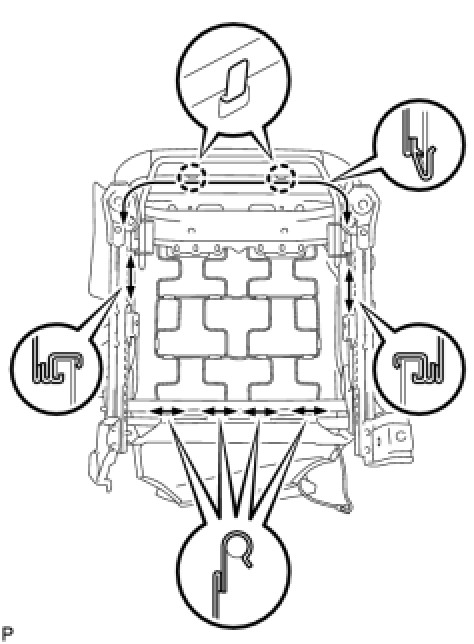

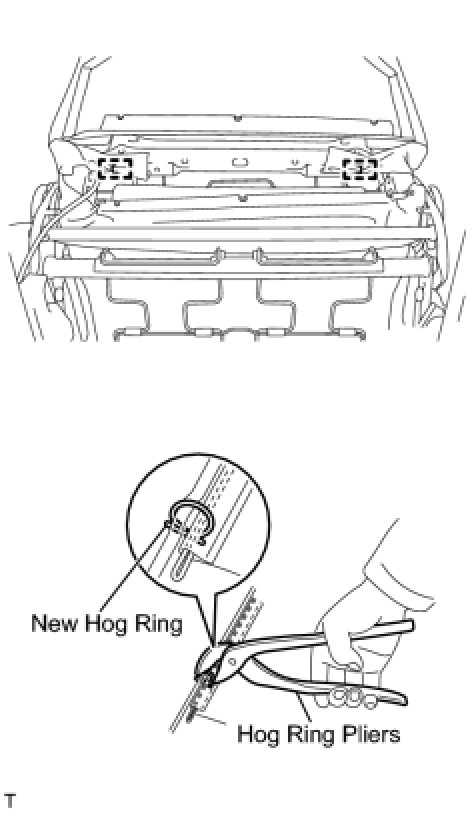

(b) Using hog ring pliers, install 2 new hog rings as shown in the illustration.





(c) Using hog ring pliers, install 3 new hog rings as shown in the illustration.
13. INSTALL FRONT SEAT ARMREST ASSEMBLY (for Driver Side)

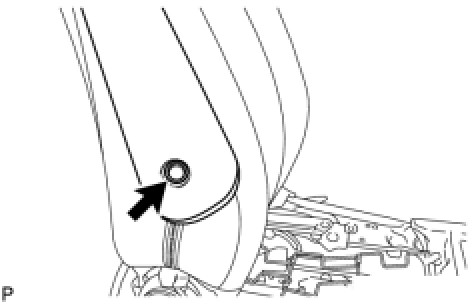

(a) Install the front seat armrest assembly with the bolt.
Torque: 20 Nm (200 kgf-cm, 14 ft-lbf)
14. INSTALL SEAT ARMREST HOLE COVER (for Driver Side)

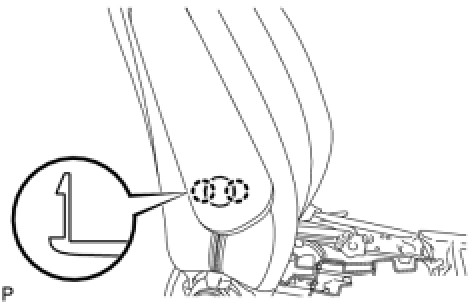

(a) Engage the 2 claws and install the front seat armrest hole cover.
15. INSTALL FRONT SEAT HEADREST SUPPORT ASSEMBLY

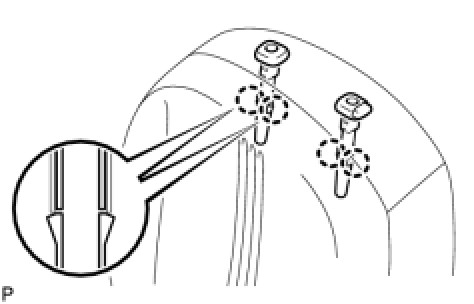

(a) Align the protruding portions of the front seat headrest support with the installation grooves of the front seat back frame.
(b) Engage the 4 claws and install the 2 front seat headrest supports.
16. INSTALL OCCUPANT CLASSIFICATION SENSOR (for Front Passenger Side) Installation
17. INSTALL FRONT SEAT CUSHION WITH COVER PAD

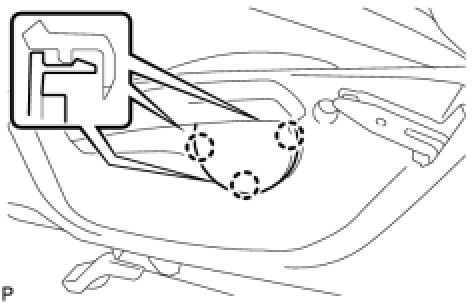

(a) Engage the 2 claws and 7 hooks, and install the front seat cushion cover pad.
(b) Fix the front seat side airbag wiring harness with the front seat cushion cover pad fixing

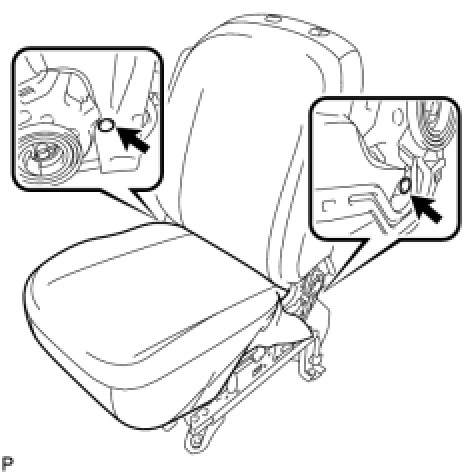

(c) Install the 2 clips.

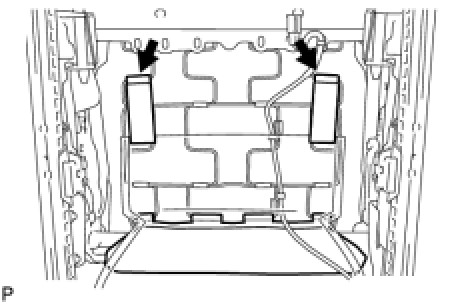

(d) Install the 2 bands shown in the illustration.
18. INSTALL FRONT SEAT CUSHION SHIELD RH

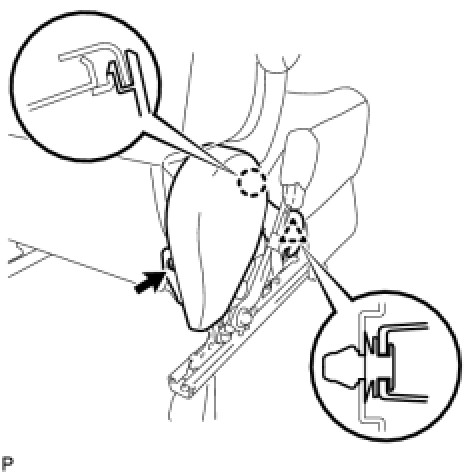

(a) Engage the claw and the clip and install the front seat cushion shield.
(b) Install the screw.
19. INSTALL FRONT SEAT INNER BELT ASSEMBLY Installation
20. INSTALL FRONT SEAT CUSHION SHIELD LH





(a) Engage the 2 claws and the clip and install the front seat cushion shield.
(b) Install the 2 screws.
21. INSTALL RECLINING ADJUSTER KNOB (for Driver Side)





(a) Install the reclining adjuster knob with the 2 screws.
22. INSTALL VERTICAL ADJUSTER COVER (for Driver Side)





(a) Engage the 3 claws and the install the vertical adjuster cover.
23. INSTALL RECLINING ADJUSTER RELEASE HANDLE





(a) Engage the claw and install the reclining adjuster release handle.
