Engine Control System - SFI System

2AZ-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
HINT: Parameters listed in the chart may be different than your readings depending on the type of instrument and other factors.
If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table below.

SFI SYSTEM

P0010 - P0031:

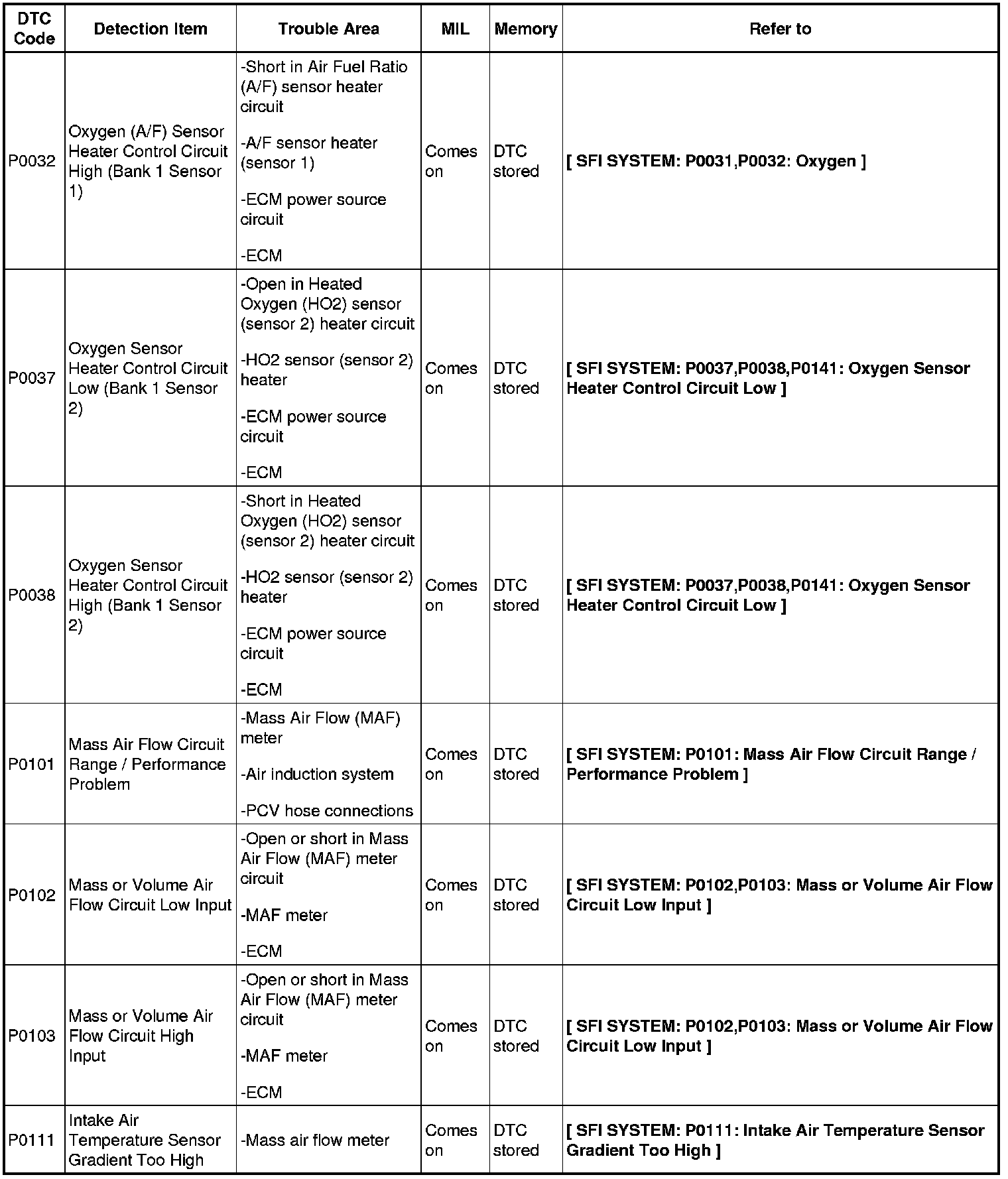

P0032 - P0111:

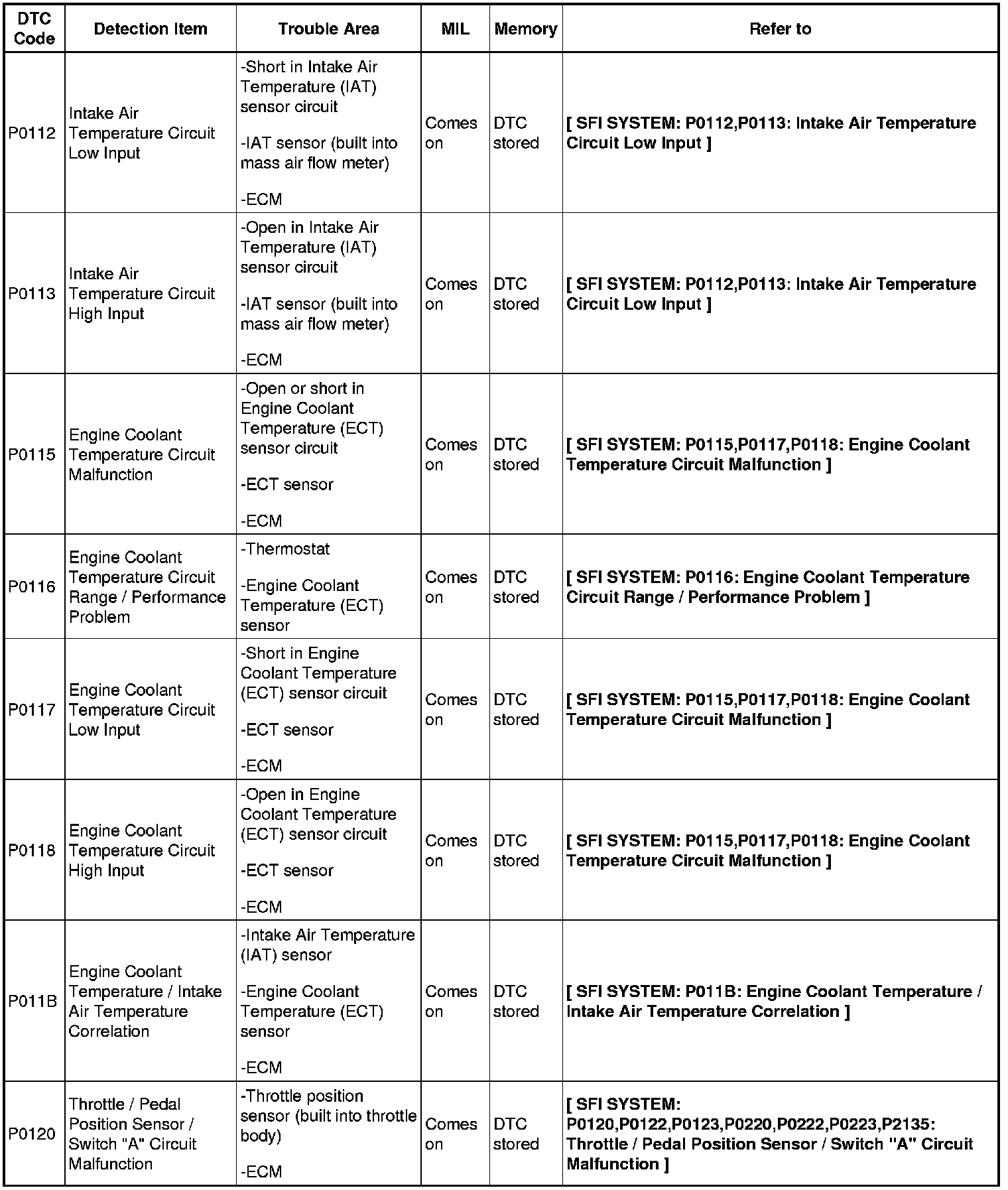

P0112 - P0120:

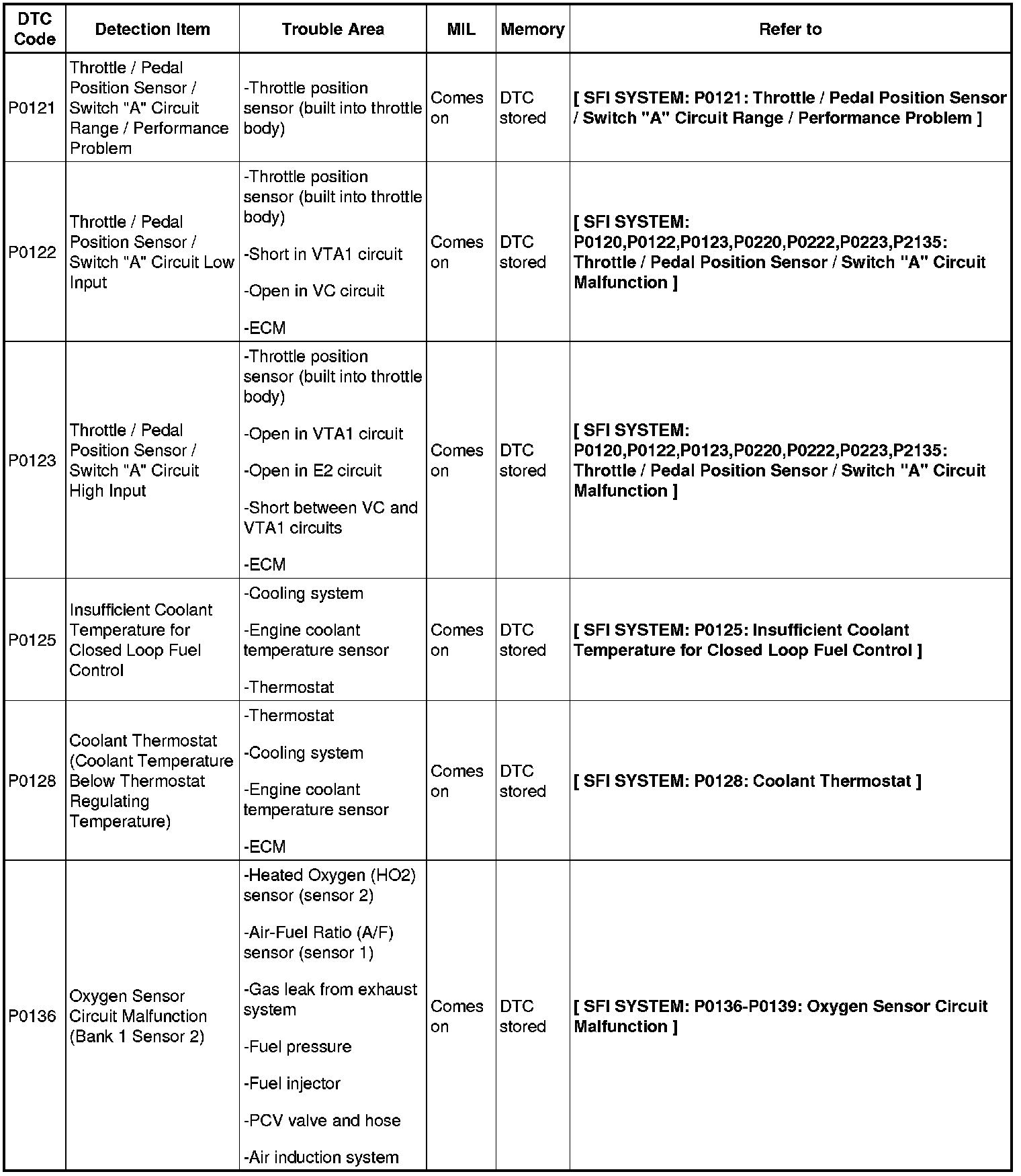

P0121 - P0136:

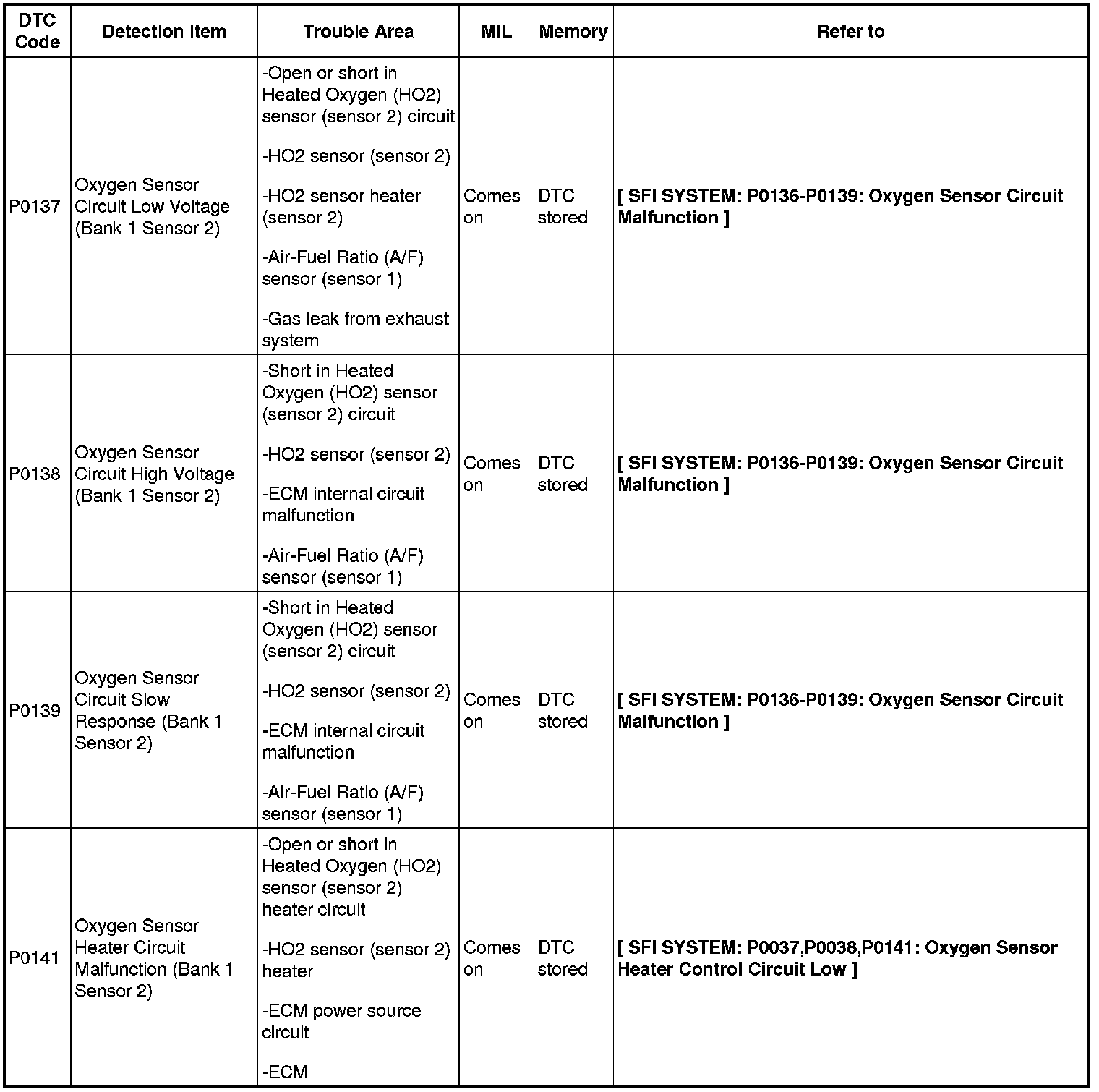

P0137 - P0141:

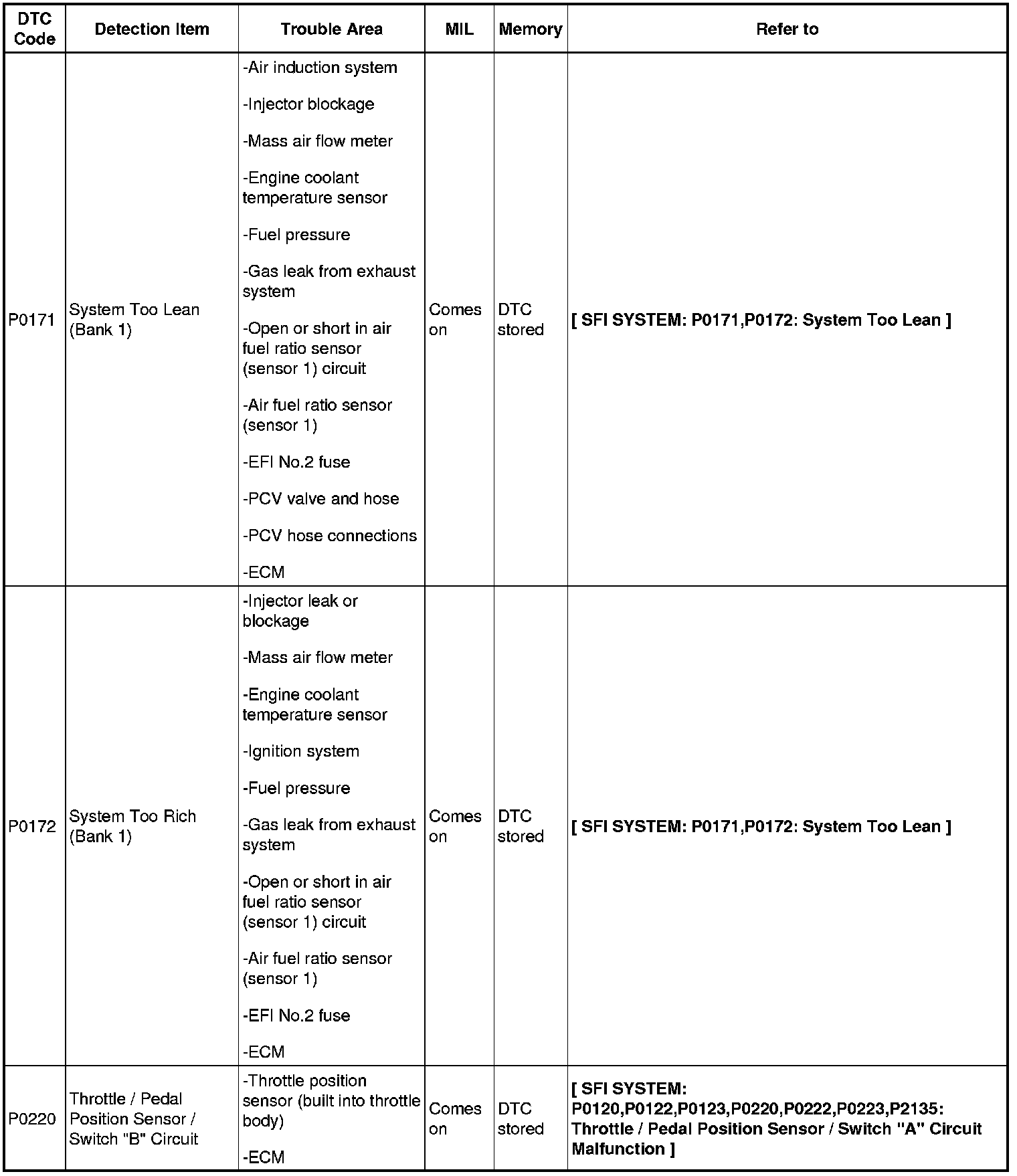

P0171 - P0220:

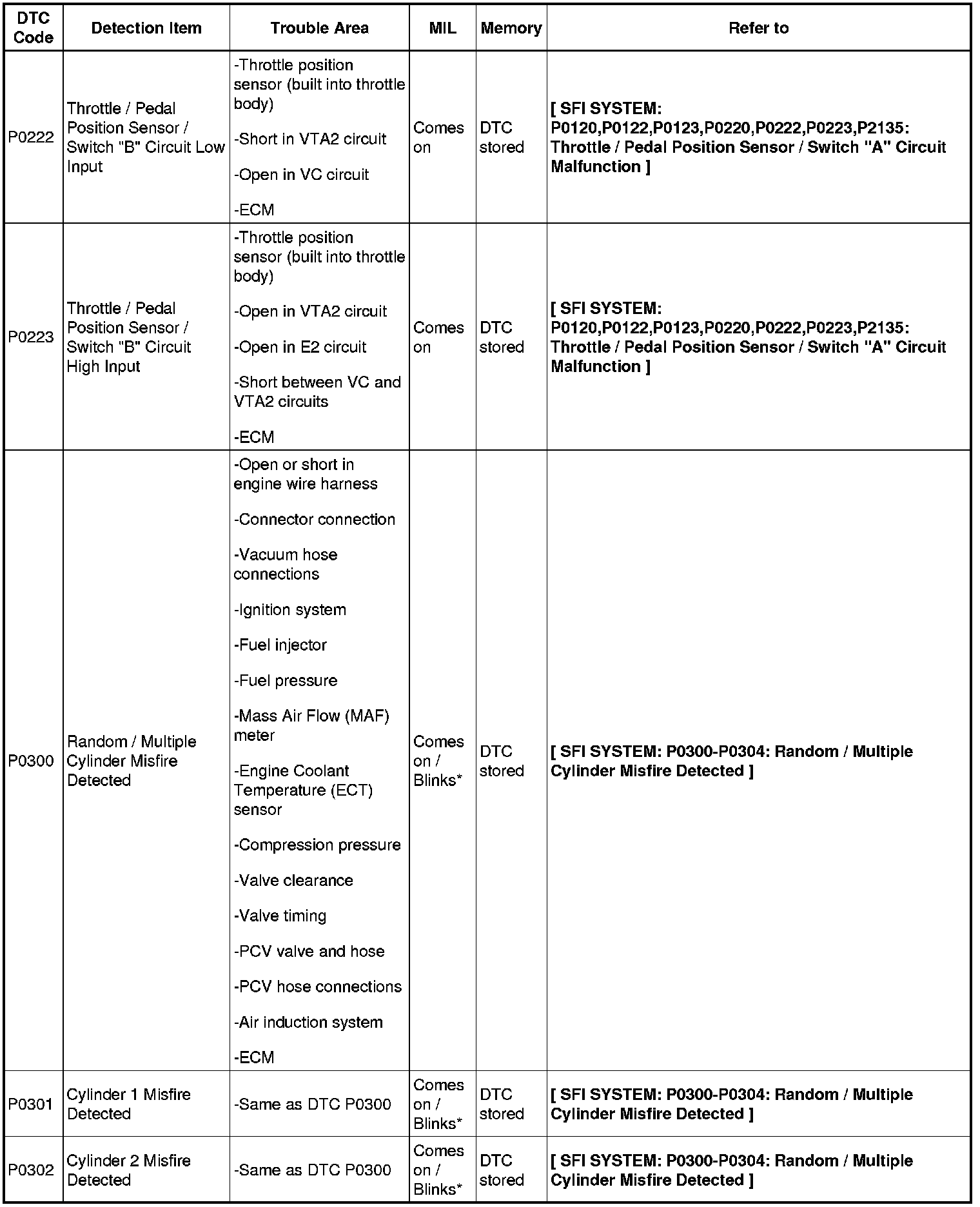

P0222 - P0302:

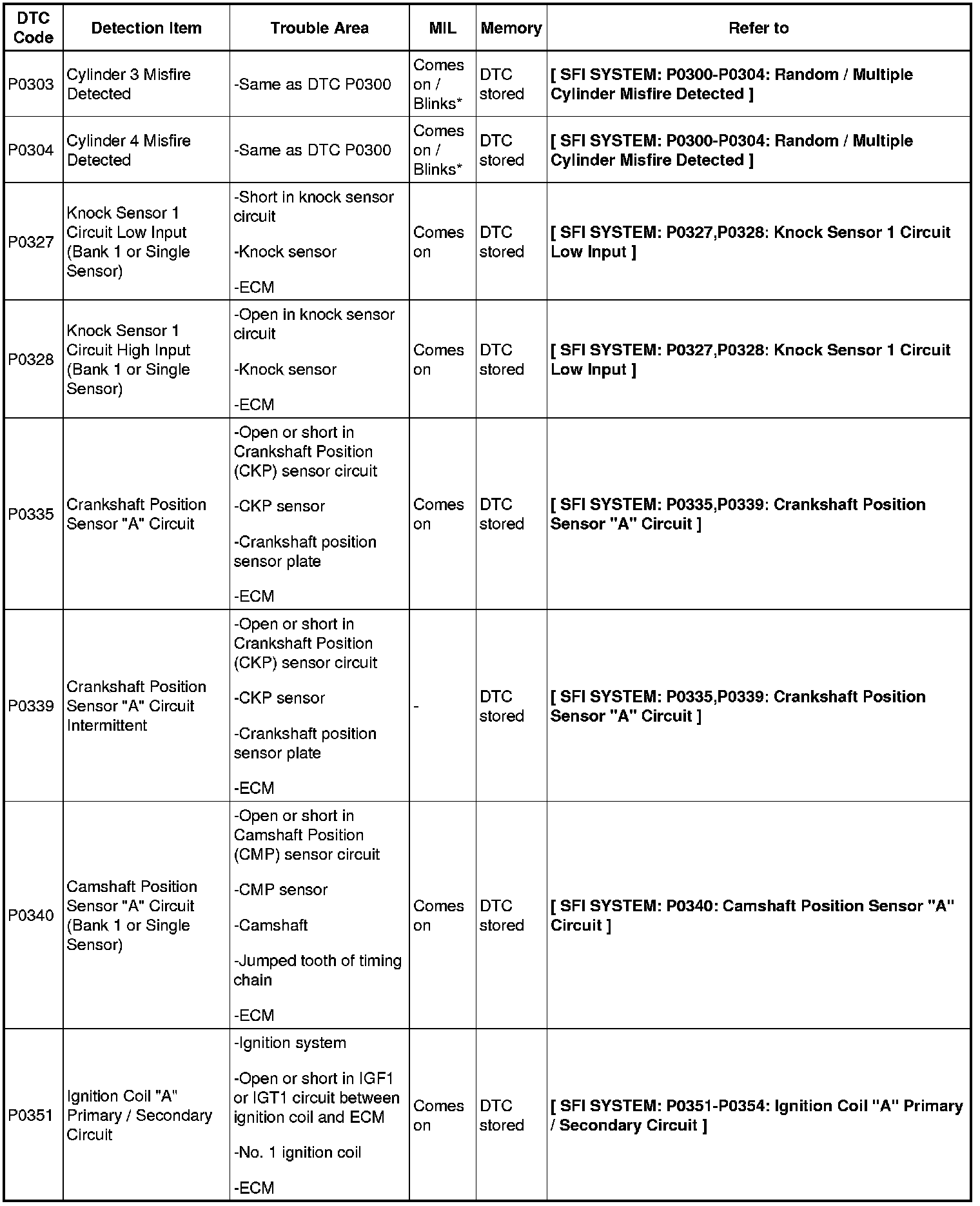

P0303 - P0351:

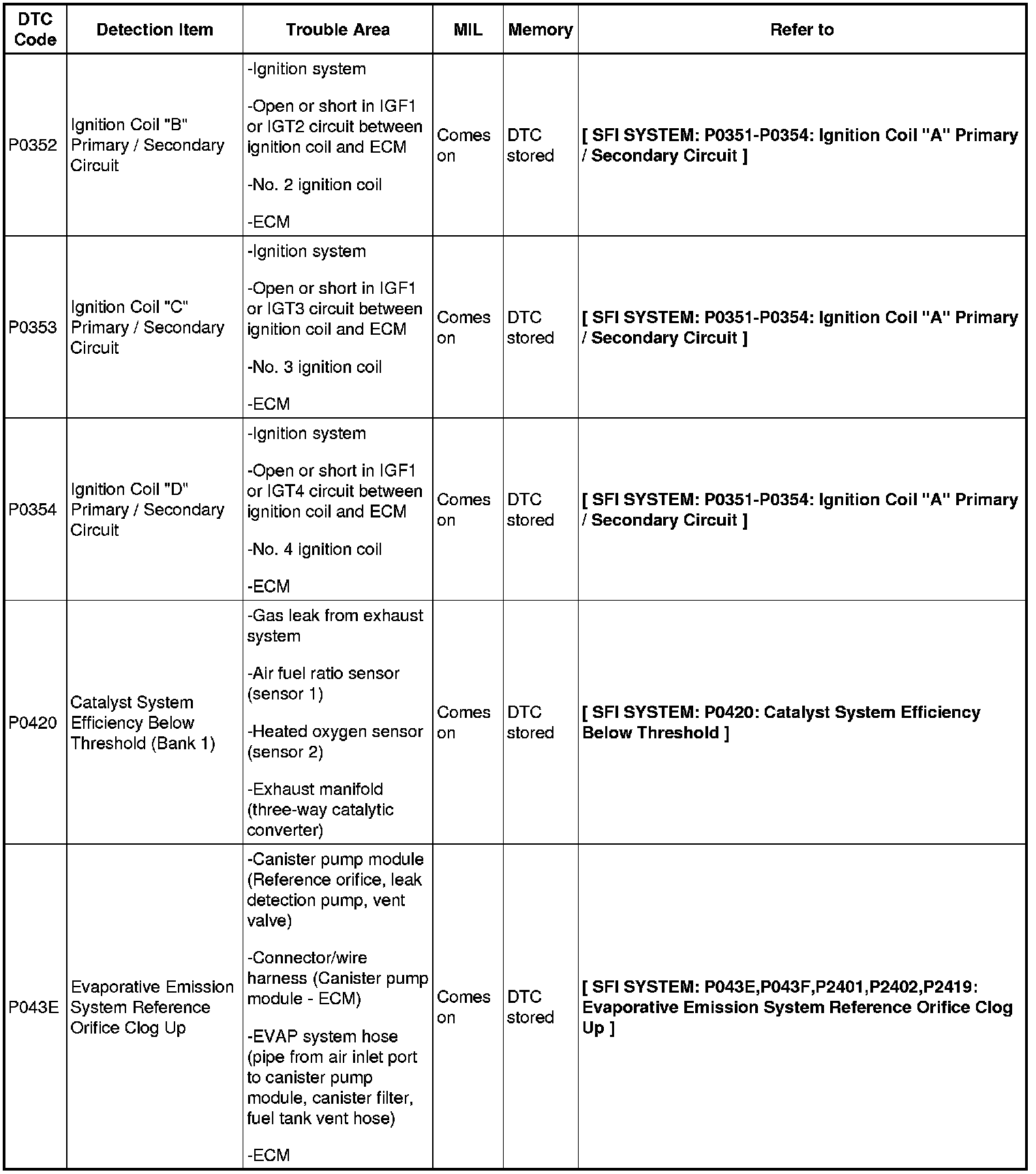

P0352 - P043E:

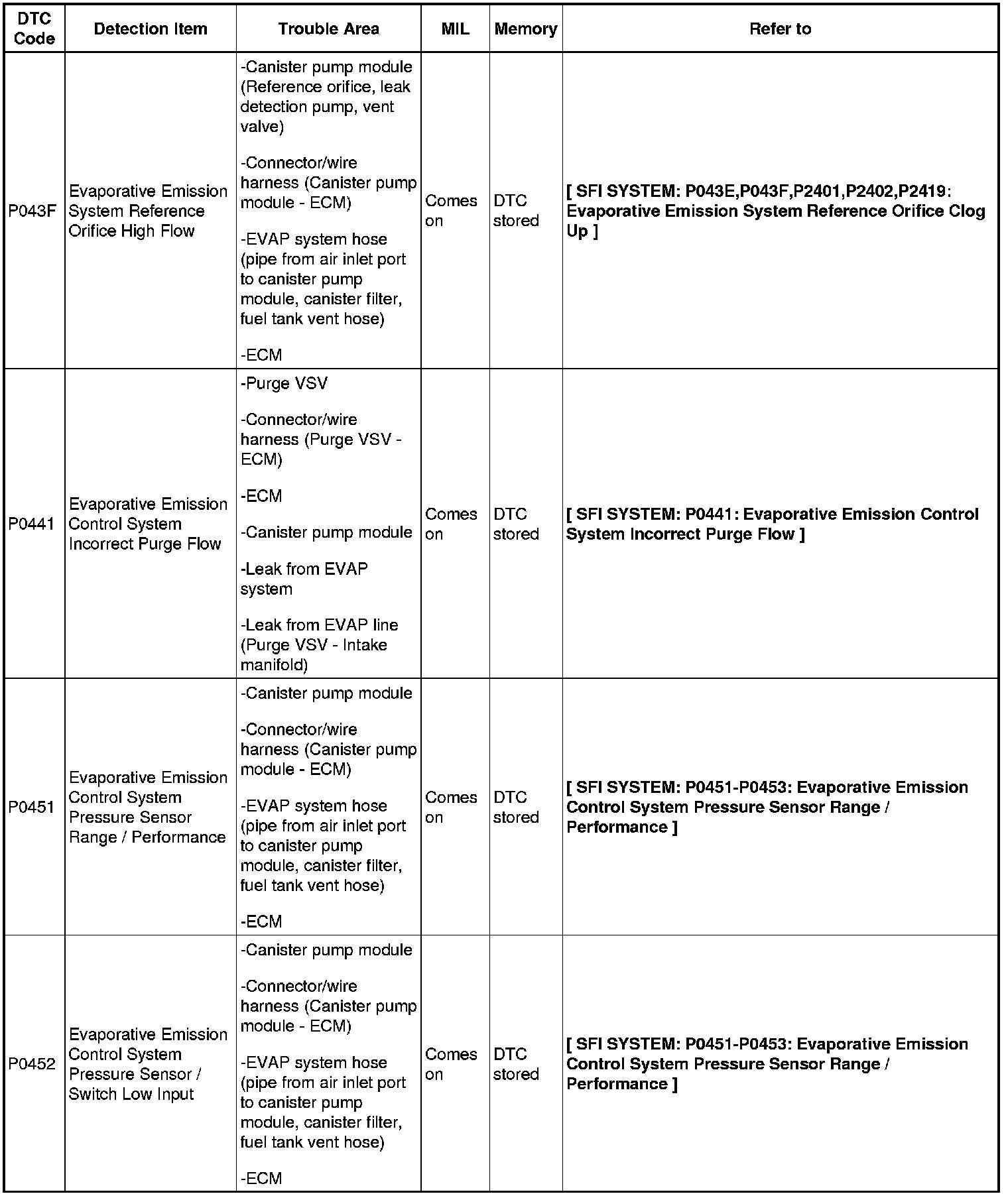

P043F - P0452:

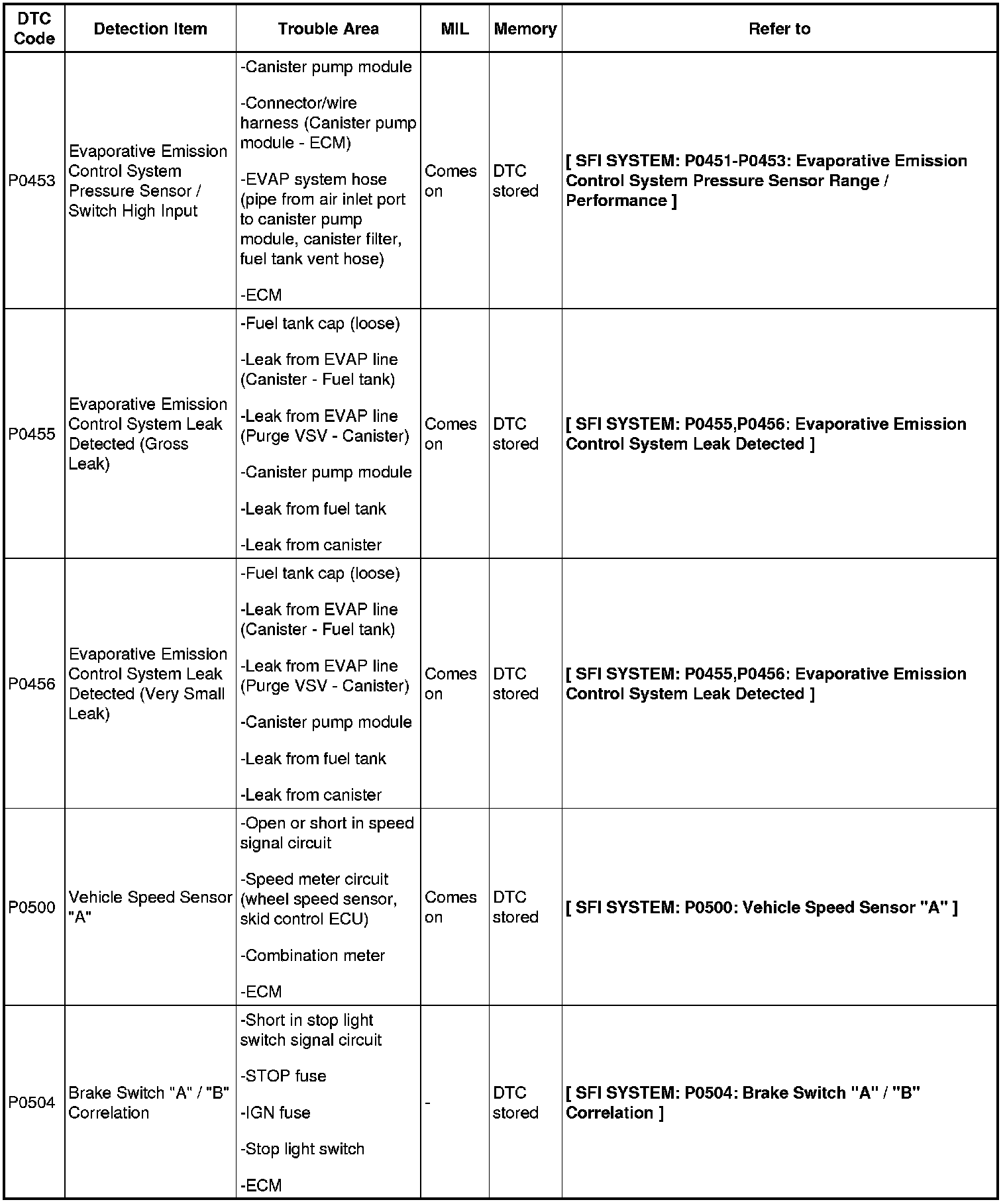

P0453 - P0504:

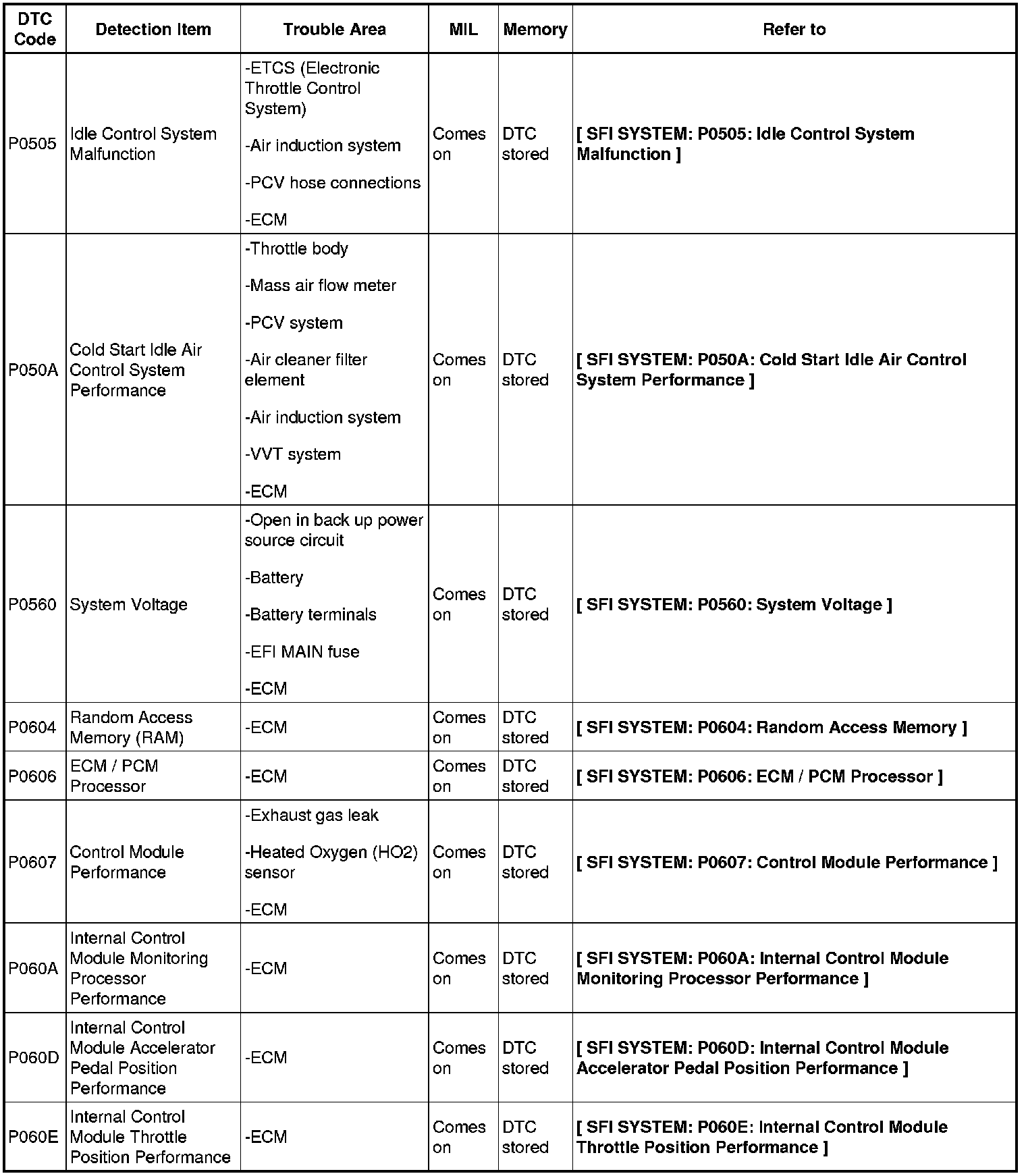

P0505 - P060E:

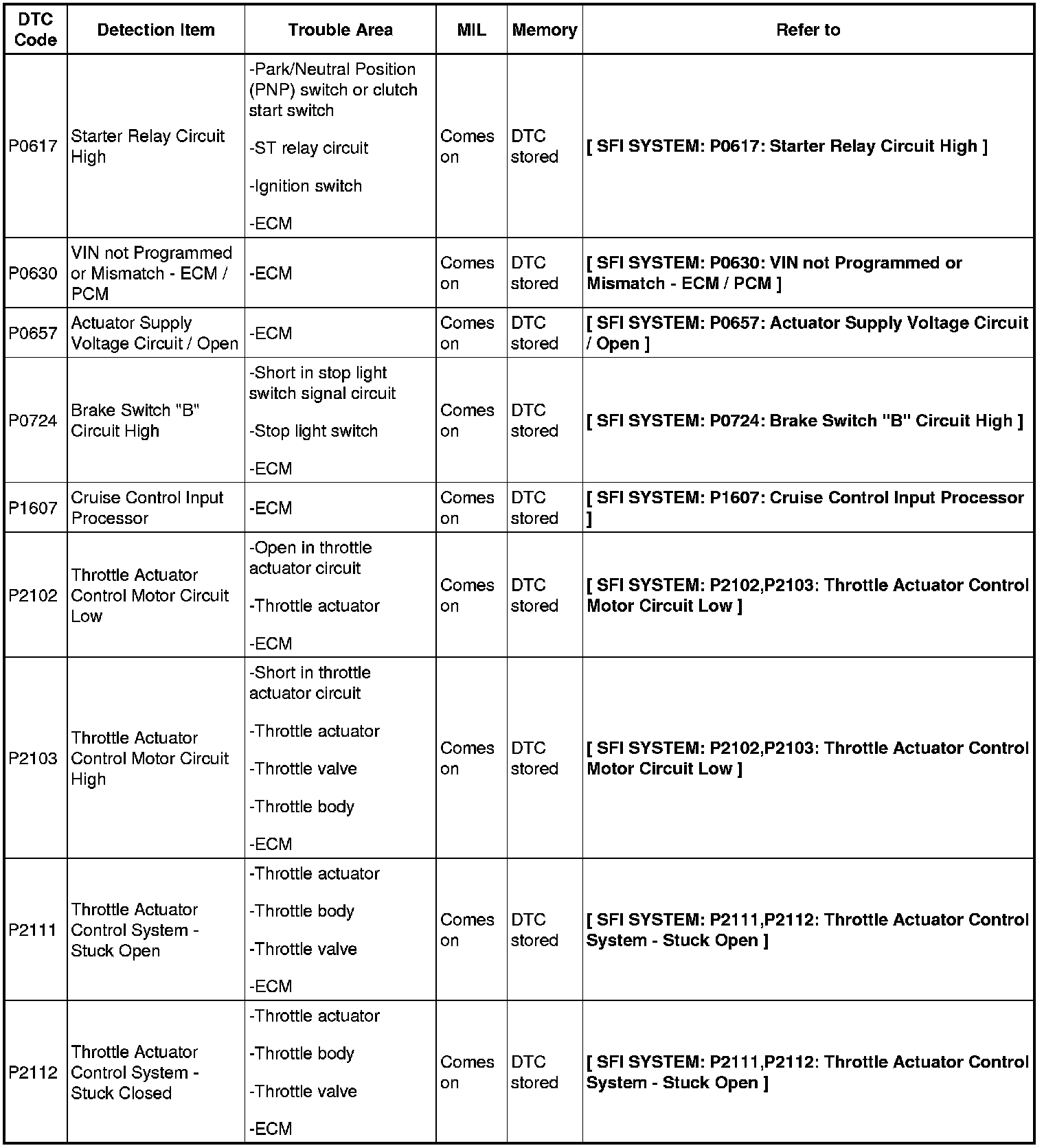

P0617 - P2112:

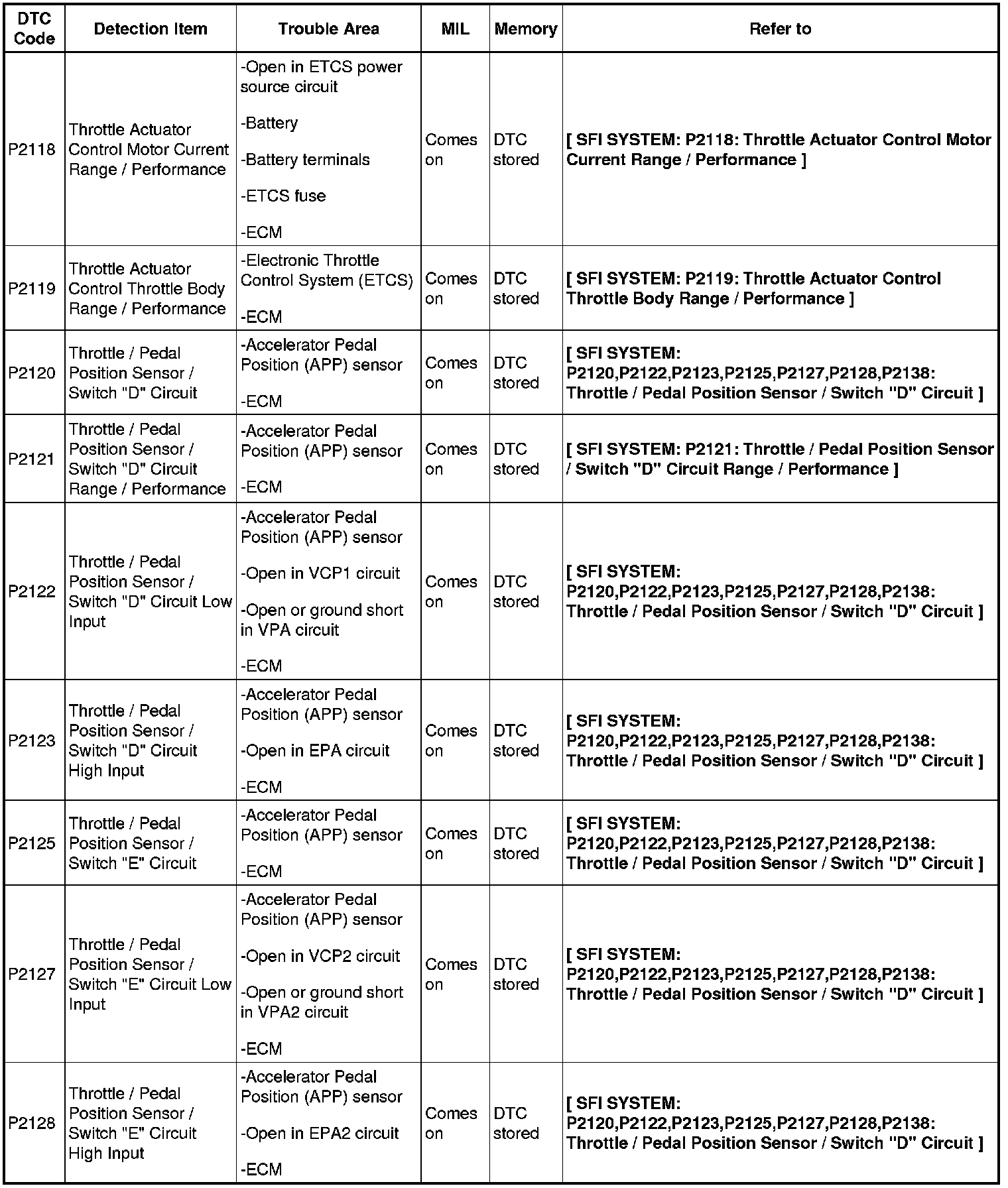

P2118 - P2128:

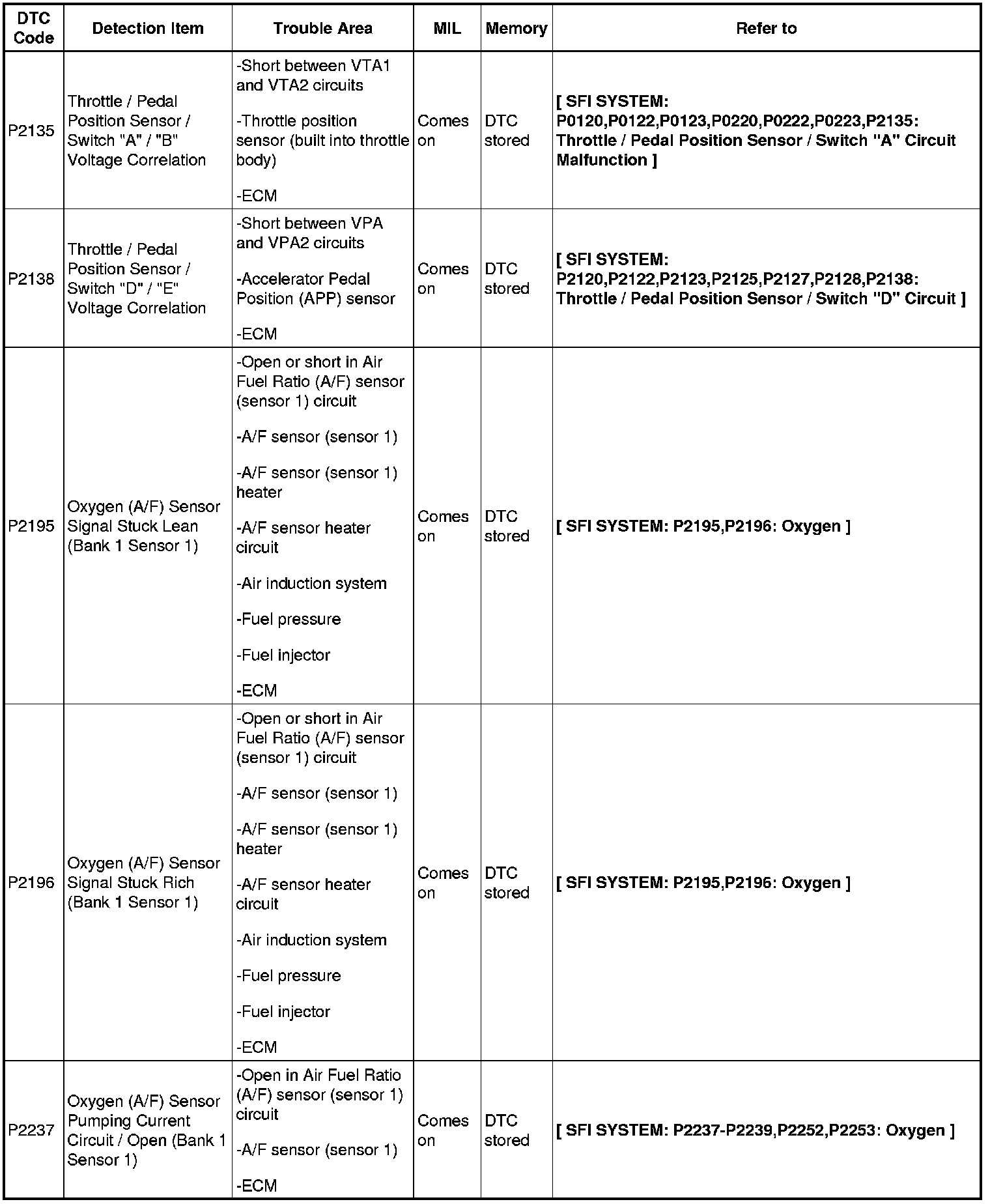

P2135 - P2237:

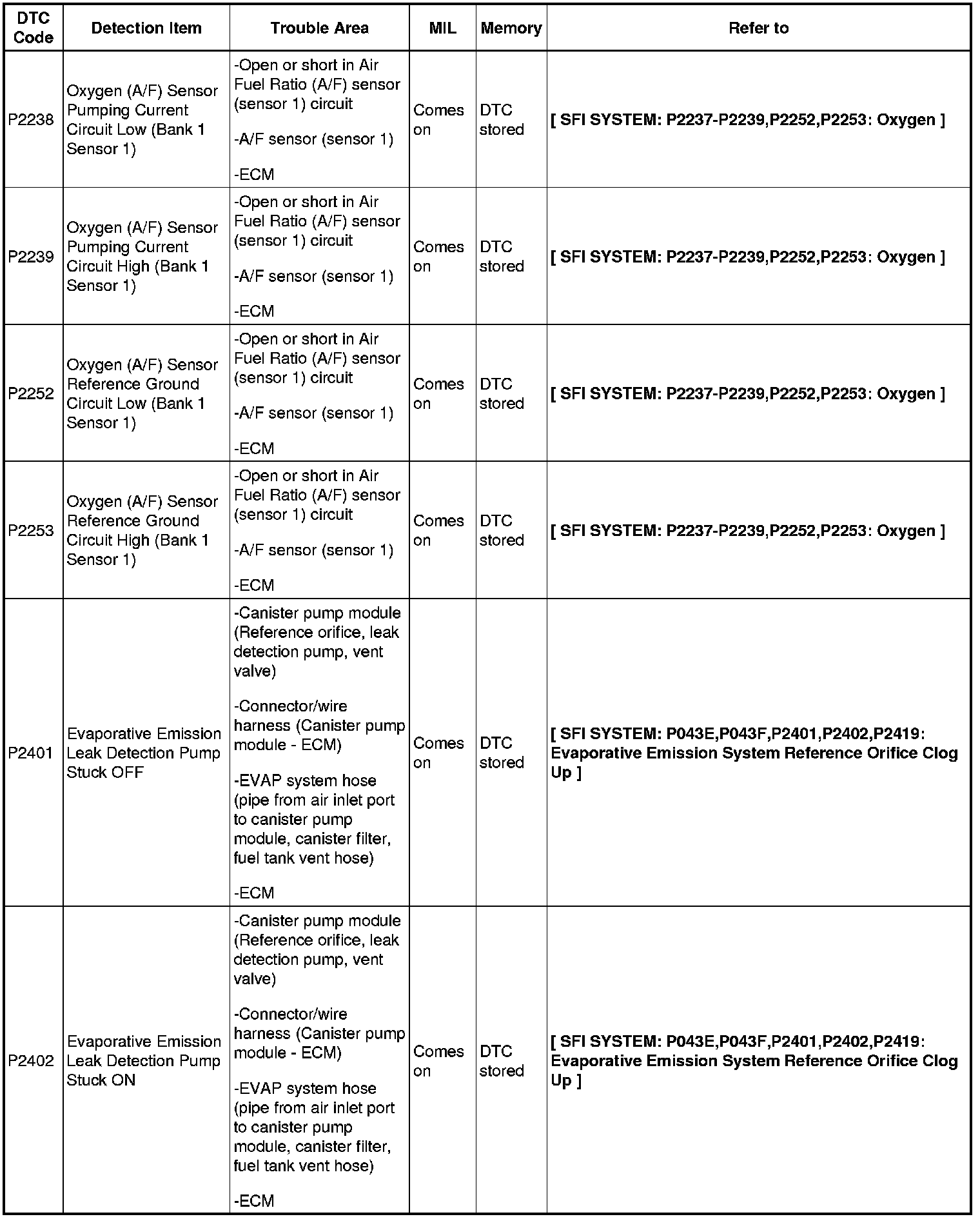

P2238 - P2402:

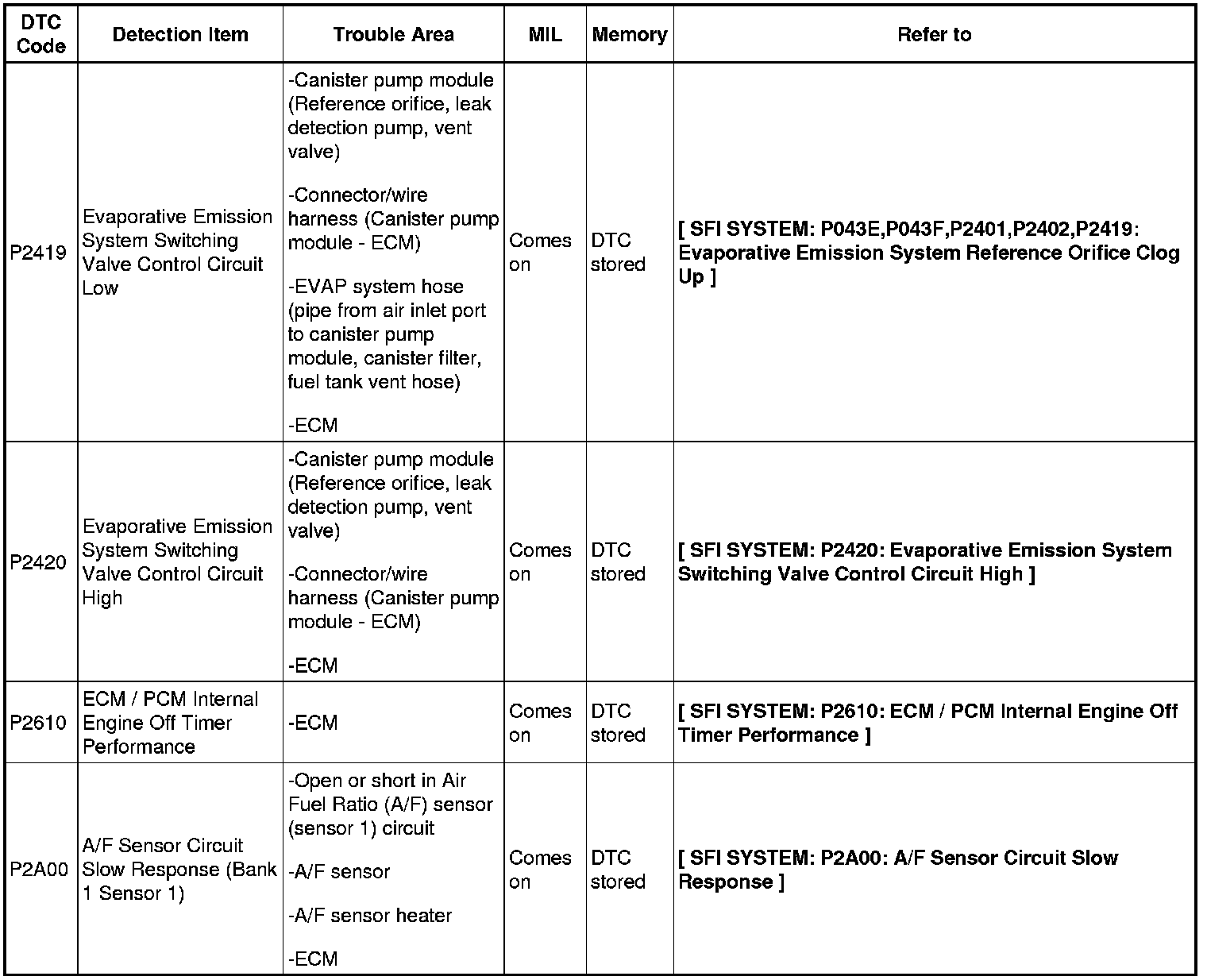

P2419 - P2A00:

HINT:
*: MIL flashes when a catalyst damaged misfire is detected.
