BRAKE CONTROL: FRONT SPEED SENSOR: REMOVAL

REMOVAL

1. REMOVE FRONT WHEEL
2. REMOVE ROCKER PANEL MOULDING COVER Removal

3. REMOVE SIDE MUDGUARD Removal

4. REMOVE FRONT FENDER LINER Removal

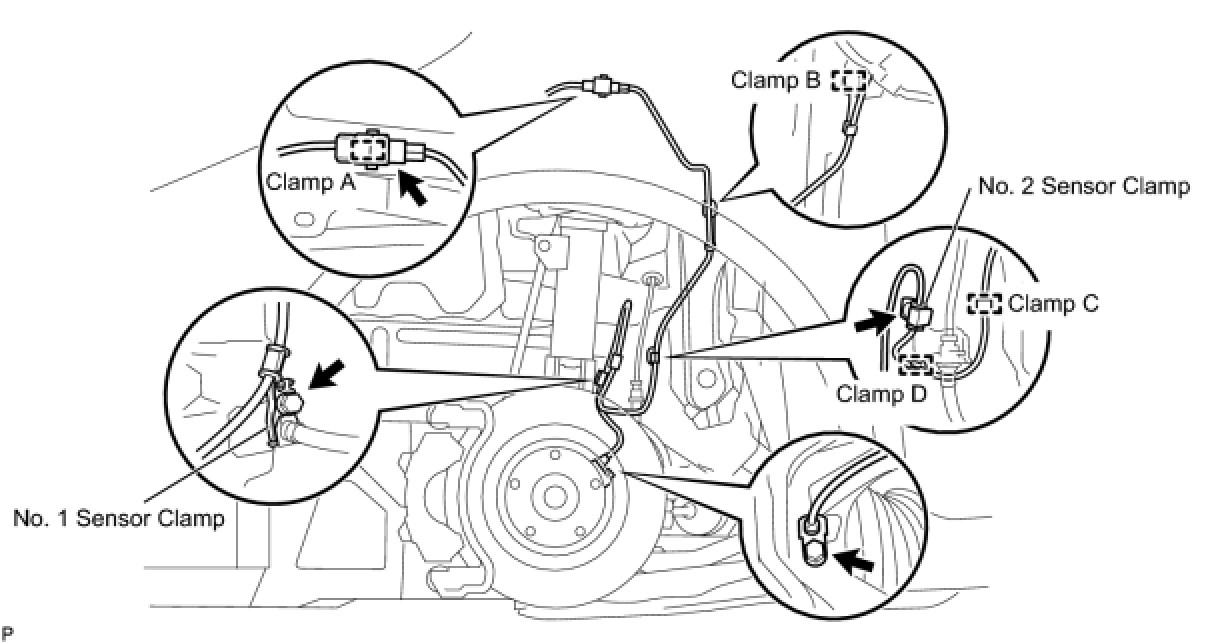

5. REMOVE FRONT SPEED SENSOR





(a) Disengage the clamp A from the body.
(b) Disconnect the speed sensor connector.
(c) Disengage the clamps B, C and D from the body.
(d) Remove the bolt and separate the No. 2 sensor clamp from the body.
(e) Remove the bolt and separate the No. 1 sensor clamp from the shock absorber.
(f) Remove the bolt and remove the speed sensor from the steering knuckle.
NOTICE:
- Keep the speed sensor tip and installation portion free of foreign matter.
- Remove the speed sensor without turning it from its original installation angle.
