Installation
SUPPLEMENTAL RESTRAINT SYSTEM: CURTAIN SHIELD AIRBAG ASSEMBLY: INSTALLATION
INSTALLATION
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.
HINT: The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

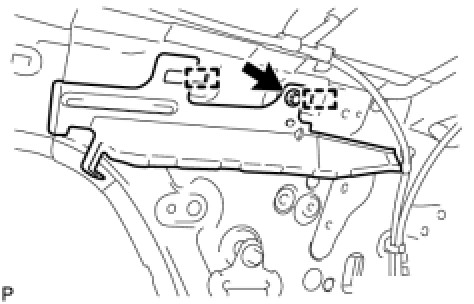

1. INSTALL ROOF SIDE RAIL BRACKET
(a) Insert the 2 hooks into the body holes and install the roof side rail bracket and tighten the bolt.
Torque: 9.8 Nm (100 kgf-cm, 86 in-lbf)

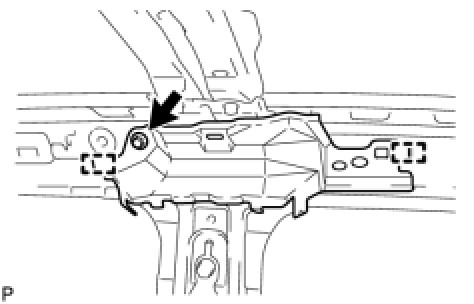

2. INSTALL CURTAIN SHIELD AIRBAG BRACKET
(a) Insert the 2 hooks into the body holes and install the curtain shield back bracket and tighten the bolt.
Torque: 9.8 Nm (100 kgf-cm, 86 in-lbf)
3. INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY RH
(a) Check that the ignition switch is off.
(b) Check that the battery negative (-) terminal is disconnected.
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

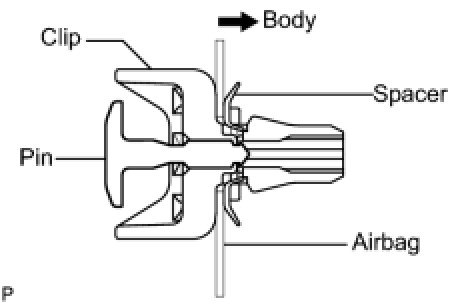

(c) Install 4 new clips and 4 new spacers the curtain shield airbag assembly as shown in the illustration.
NOTICE:
- Do not push in the pin.
- Make sure that the clips are installed in the correct direction.
- Make sure that the spacers are installed properly, in the correct direction, and that they are not damaged.

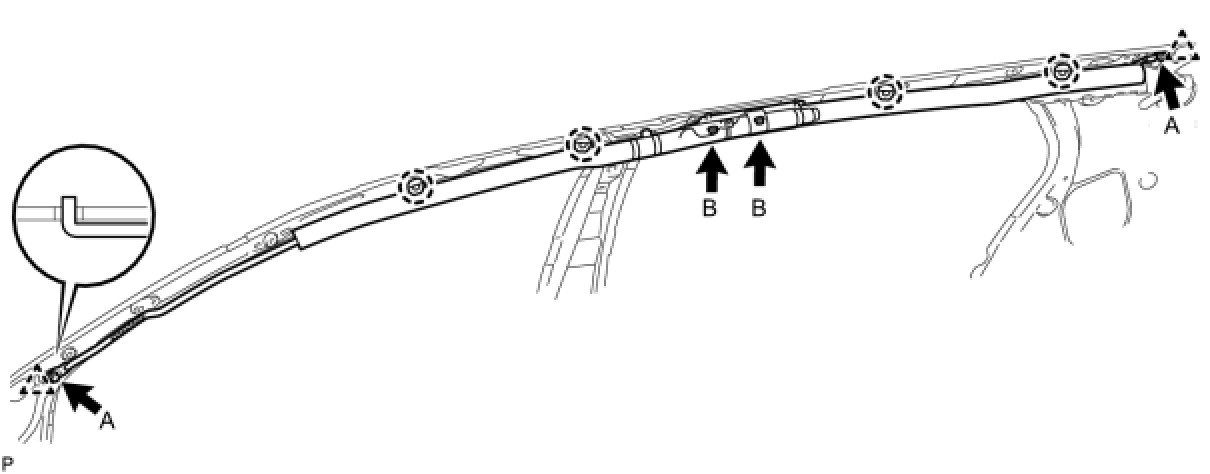

(d) Install the curtain shield airbag assembly with 4 new bolts.
Torque: 9.8 Nm (100 kgf-cm, 86 in-lbf)for Bolt A
Torque: 14 Nm (143 kgf-cm, 10 ft-lbf)for Bolt B
NOTE: Do not twist the curtain shield airbag assembly when installing it.

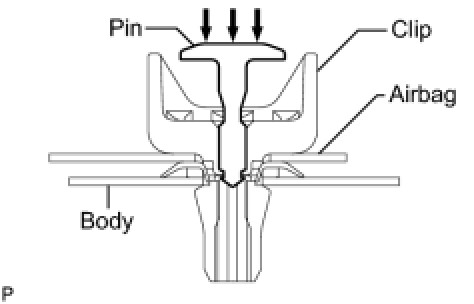

(e) Install the 4 clips and the curtain shield airbag assembly to the body panel as shown in the illustration.
NOTE: Make sure that the pins of the clips are pushed in firmly.
(f) Mark the clips.
HINT: Mark the clips to make sure that they are not reused.

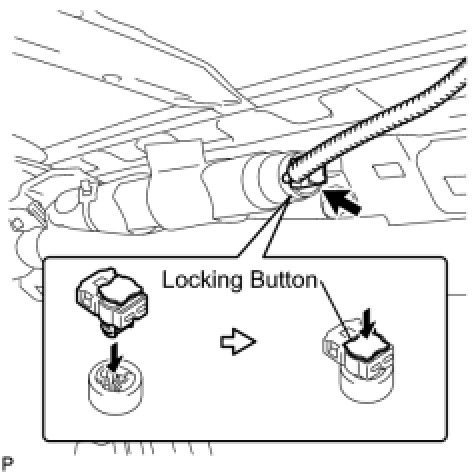

(g) Connect the airbag connector.
NOTE: Securely lock the locking button.
4. INSTALL ROOF HEADLINING Installation
5. INSTALL SEAT BELT ANCHOR COVER Installation
6. INSTALL SHOULDER BELT ANCHOR COVER RH Installation
7. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY Installation
8. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY Installation
9. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
10. INSTALL COMBINATION METER ASSEMBLY Removal
11. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY Removal
12. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
13. INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY Installation
14. INSTALL MAP LIGHT ASSEMBLY Installation
15. INSTALL ROOM LIGHT ASSEMBLY Installation
16. INSTALL VISOR HOLDER RH Installation
17. INSTALL VISOR HOLDER LH Installation
18. INSTALL VISOR ASSEMBLY RH Installation
19. INSTALL VISOR ASSEMBLY LH Installation
20. INSTALL ASSIST GRIP Installation
21. INSTALL FRONT PILLAR GARNISH RH Installation
22. INSTALL FRONT PILLAR GARNISH LH Installation
23. INSTALL CENTER PILLAR UPPER GARNISH RH Installation
24. INSTALL CENTER PILLAR UPPER GARNISH LH Installation
25. INSTALL CENTER PILLAR LOWER GARNISH RH Installation
26. INSTALL CENTER PILLAR LOWER GARNISH LH Installation
27. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH Installation
28. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH Installation
29. INSTALL SEAT BELT ANCHOR COVER CAP Installation
30. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH Installation
31. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH Installation
32. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH Installation
33. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH Installation
34. INSTALL REAR SEAT OUTER BELT ASSEMBLY RH Installation
35. INSTALL REAR SEAT OUTER BELT ASSEMBLY LH Installation
36. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY Installation
37. INSTALL REAR DECK TRIM COVER Installation
38. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation
39. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation
40. INSTALL REAR DOOR SCUFF PLATE RH Installation
41. INSTALL REAR DOOR SCUFF PLATE LH Installation
42. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation
43. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation
44. INSTALL COWL SIDE TRIM BOARD RH Installation
45. INSTALL COWL SIDE TRIM BOARD LH Installation
46. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
47. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
48. INSTALL FRONT DOOR SCUFF PLATE RH Installation
49. INSTALL FRONT DOOR SCUFF PLATE LH Installation
50. INSTALL REAR SEAT ASSEMBLY RH Installation
51. INSTALL REAR SEAT ASSEMBLY LH Installation
52. INSTALL NO. 1 REAR SEAT LEG COVER RH Installation
53. INSTALL NO. 1 REAR SEAT LEG COVER LH Installation
54. INSTALL NO. 2 REAR SEAT LEG COVER LH Installation
55. INSTALL DECK BOARD ASSEMBLY Installation
56. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
57. INSPECT SRS WARNING LIGHT
Diagnosis System
