Problem Symptoms Table

METER: METER / GAUGE SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE
HINT: Use the table below to help determine the causes of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected area in the order they are listed. Replace parts as necessary.

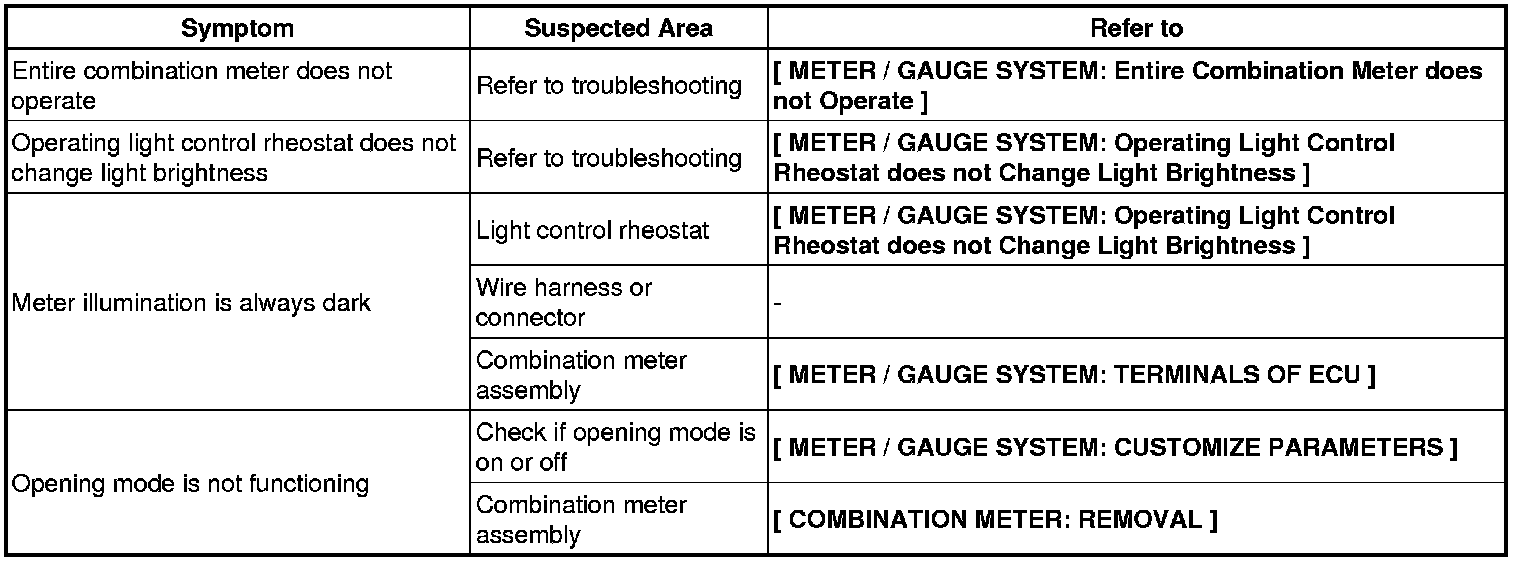

Malfunction system

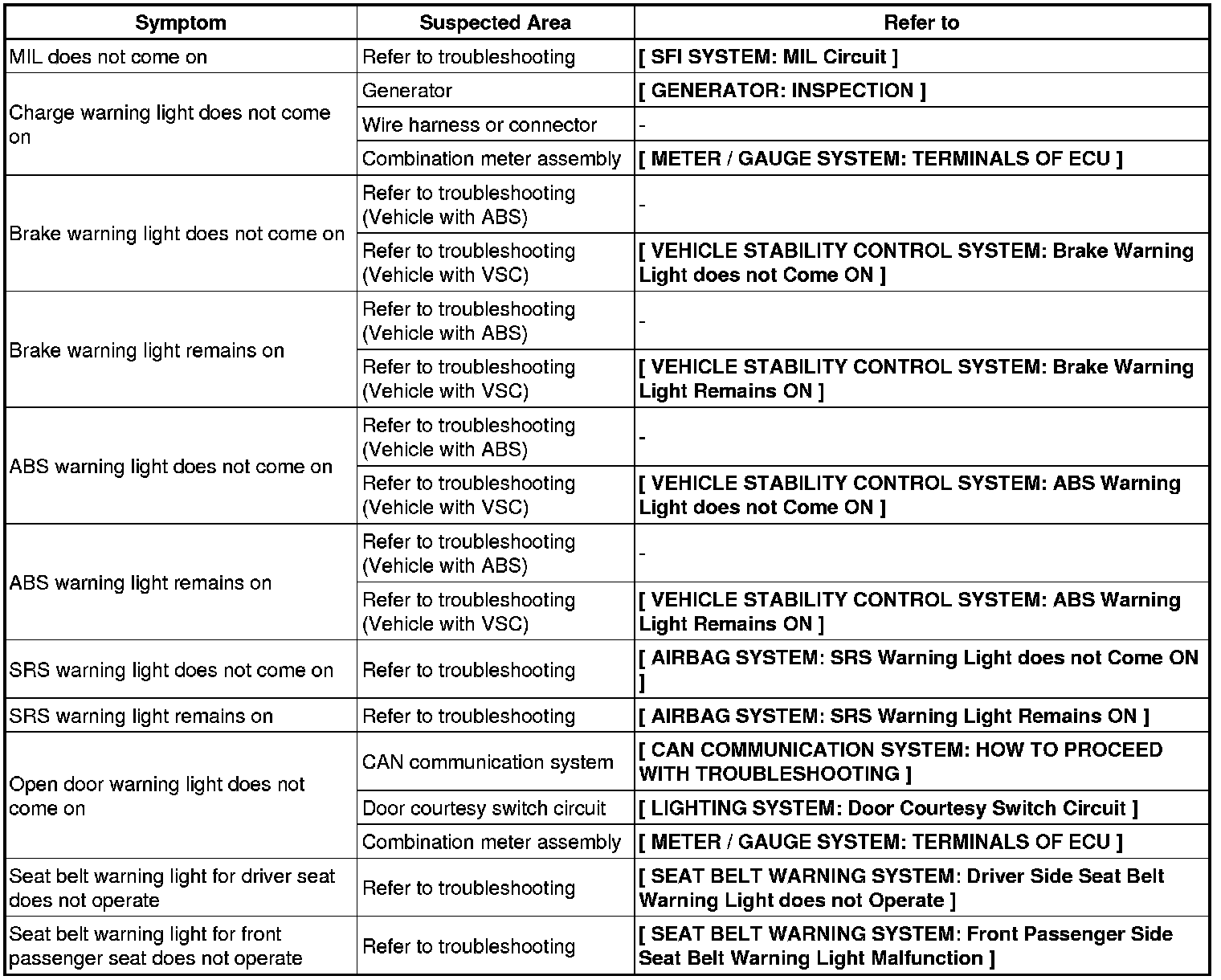

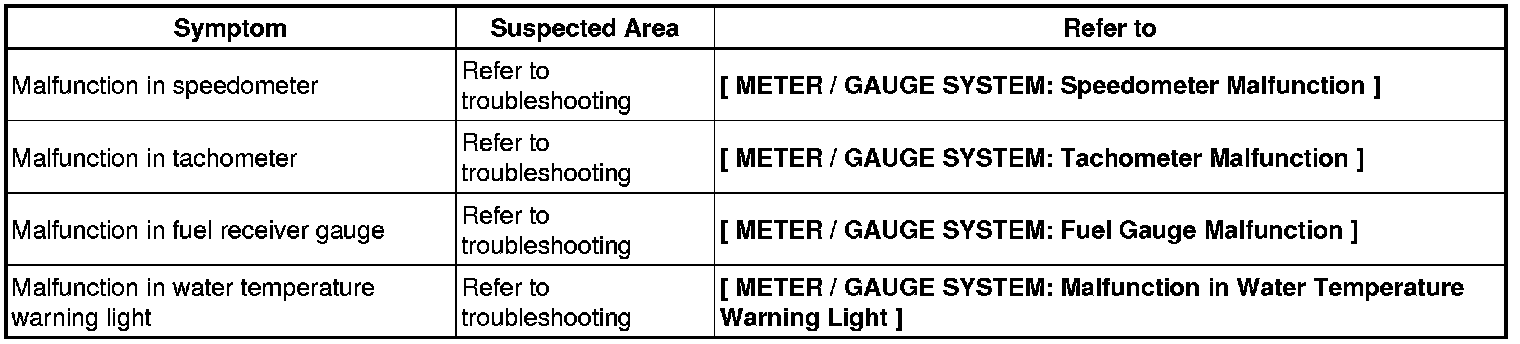

Meter gauges





Warning light

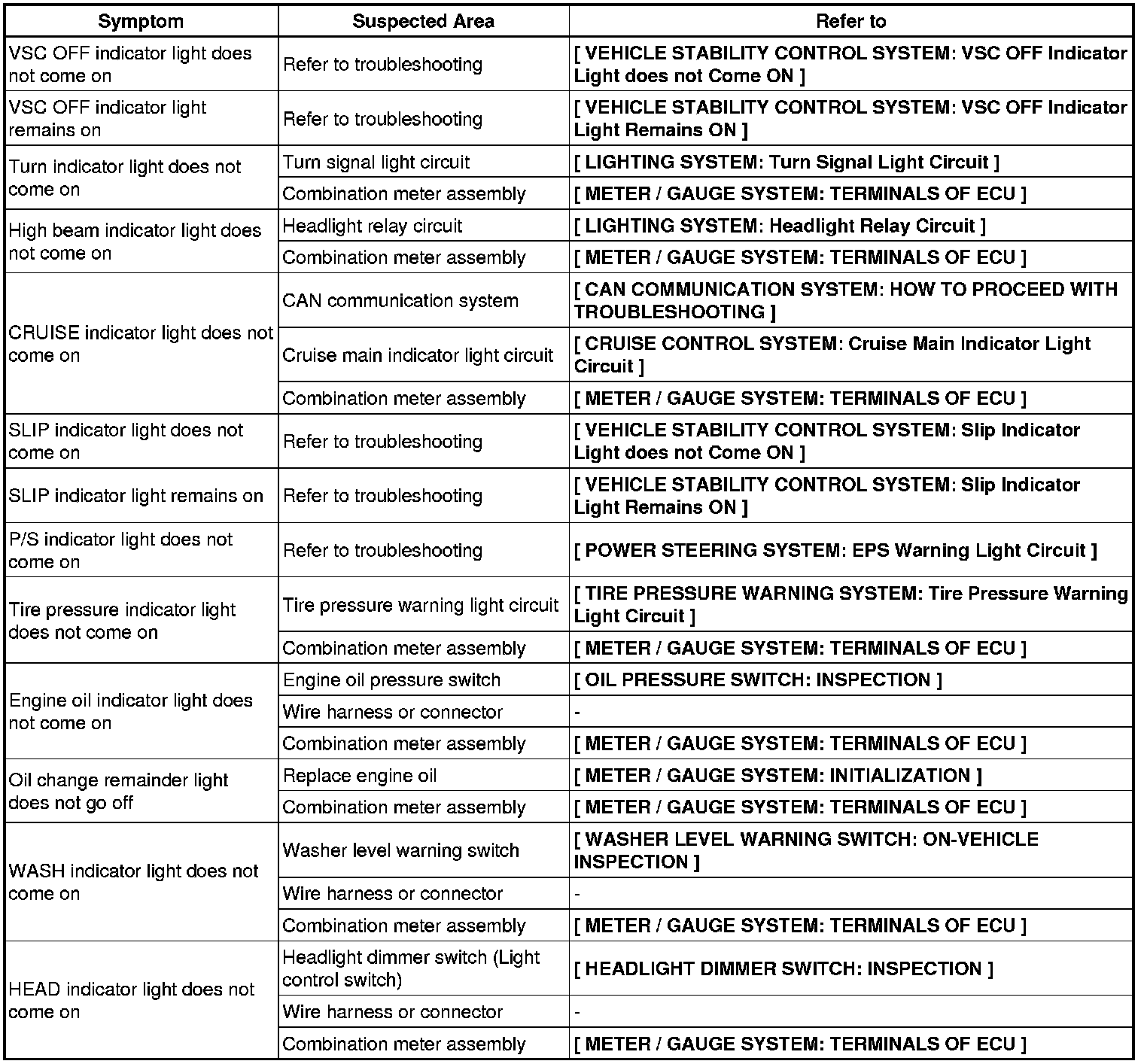

Indicator light

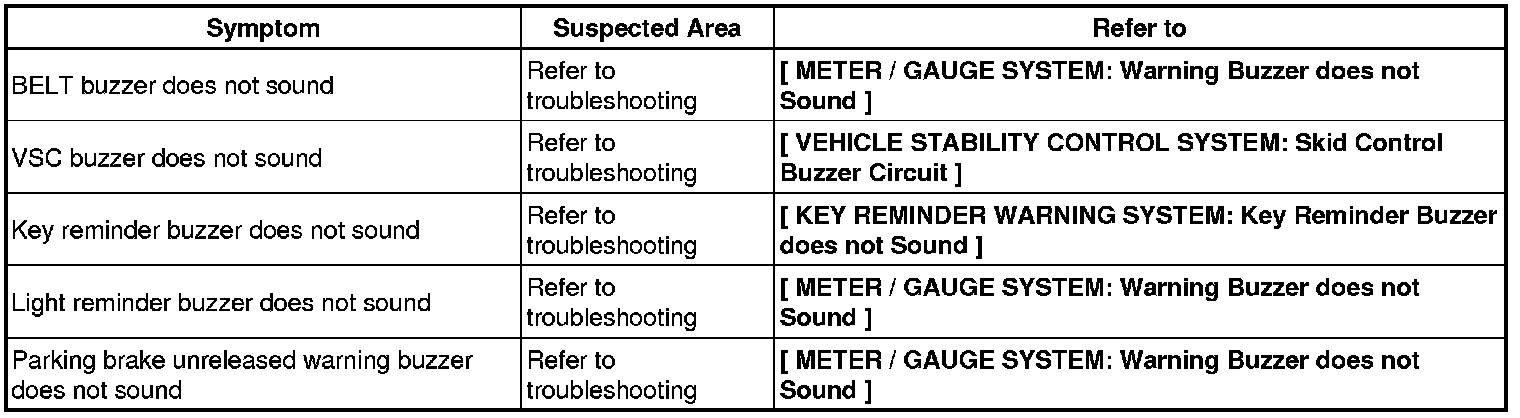

Buzzer
