Removal

AUDIO / VISUAL: AMPLIFIER ANTENNA: REMOVAL

REMOVAL
CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag from working.

2. REMOVE DECK BOARD ASSEMBLY Removal

3. REMOVE NO. 1 REAR SEAT LEG COVER RH Removal

4. REMOVE NO. 1 REAR SEAT LEG COVER LH Removal

5. REMOVE NO.2 REAR SEAT LEG COVER LH Removal

6. REMOVE REAR SEAT ASSEMBLY RH Removal

7. REMOVE REAR SEAT ASSEMBLY LH Removal

8. REMOVE FRONT DOOR SCUFF PLATE RH Removal

9. REMOVE FRONT DOOR SCUFF PLATE LH Removal

10. REMOVE NO.1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

11. REMOVE COWL SIDE TRIM BOARD RH Removal

12. REMOVE COWL SIDE TRIM BOARD LH Removal

13. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH Removal

14. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH Removal

15. REMOVE REAR DOOR SCUFF PLATE RH Removal

16. REMOVE REAR DOOR SCUFF PLATE LH Removal

17. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH Removal

18. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH Removal

19. REMOVE REAR DECK TRIM COVER Removal

20. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY Removal

21. REMOVE REAR SEAT OUTER BELT ASSEMBLY RH Removal

22. REMOVE REAR SEAT OUTER BELT ASSEMBLY LH Removal

23. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH Removal

24. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH Removal

25. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH Removal

26. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH Removal

27. REMOVE SEAT BELT ANCHOR COVER CAP Removal

28. REMOVE FRONT SEAT OUTER BELT ASSEMBLY RH Removal

29. REMOVE FRONT SEAT OUTER BELT ASSEMBLY LH Removal

30. REMOVE CENTER PILLAR LOWER GARNISH RH Removal

31. REMOVE CENTER PILLAR LOWER GARNISH LH Removal

32. REMOVE CENTER PILLAR UPPER GARNISH RH Removal

33. REMOVE CENTER PILLAR UPPER GARNISH LH Removal

34. REMOVE FRONT PILLAR GARNISH RH Removal

35. REMOVE FRONT PILLAR GARNISH LH Removal

36. REMOVE ASSIST GRIP Removal

37. REMOVE VISOR ASSEMBLY RH Removal

38. REMOVE VISOR ASSEMBLY LH Removal

39. REMOVE VISOR HOLDER RH Removal

40. REMOVE VISOR HOLDER LH Removal

41. REMOVE ROOM LIGHT ASSEMBLY Removal

42. REMOVE MAP LIGHT ASSEMBLY Removal

43. REMOVE INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY Removal

44. REMOVE INSTRUMENT CLUSTER FINISH PANEL Removal

45. REMOVE COMBINATION METER ASSEMBLY Removal

46. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY Removal

47. REMOVE UPPER INSTRUMENT PANEL SUB-ASSEMBLY Removal

48. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY Removal

49. REMOVE SEAT BELT ANCHOR COVER Removal

50. REMOVE ROOF HEADLINING ASSEMBLY Removal

51. REMOVE RADIO ANTENNA POLE SUB-ASSEMBLY Removal

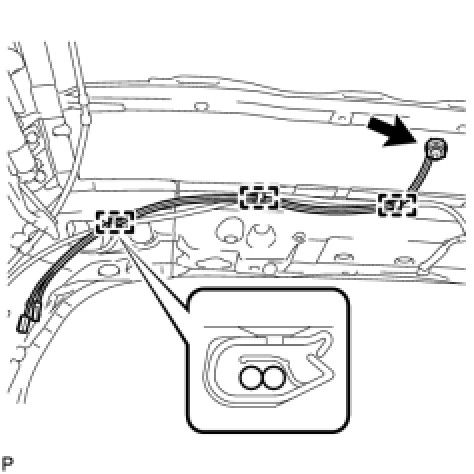

52. REMOVE AMPLIFIER ANTENNA ASSEMBLY

(a) Remove the antenna wire from the 3 clamps.
(b) Remove the nut.
