Symptom Related Diagnostic Procedures

LIGHTING: LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE
HINT: Use the table below, with suspected areas listed in numerical order, to determine the cause of the problem. Inspect and repair or replace parts as necessary according to the steps.

Headlight and taillight system

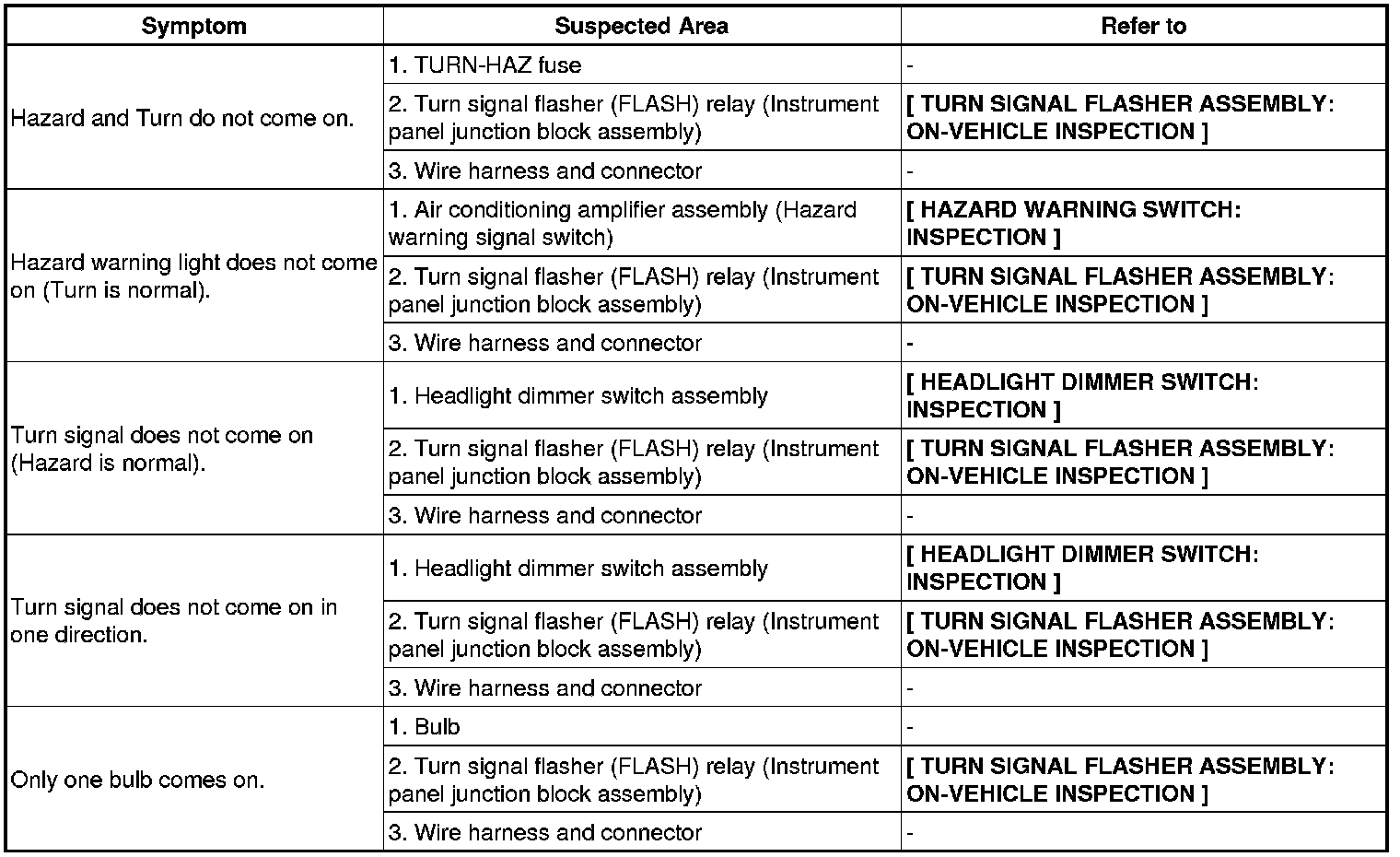

Turn signal and hazard warning system

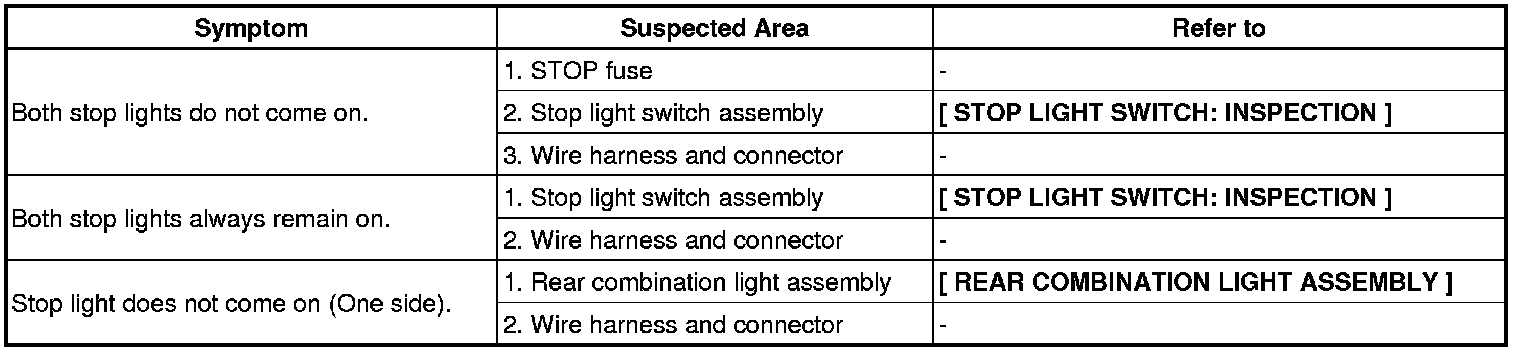

Stop light system

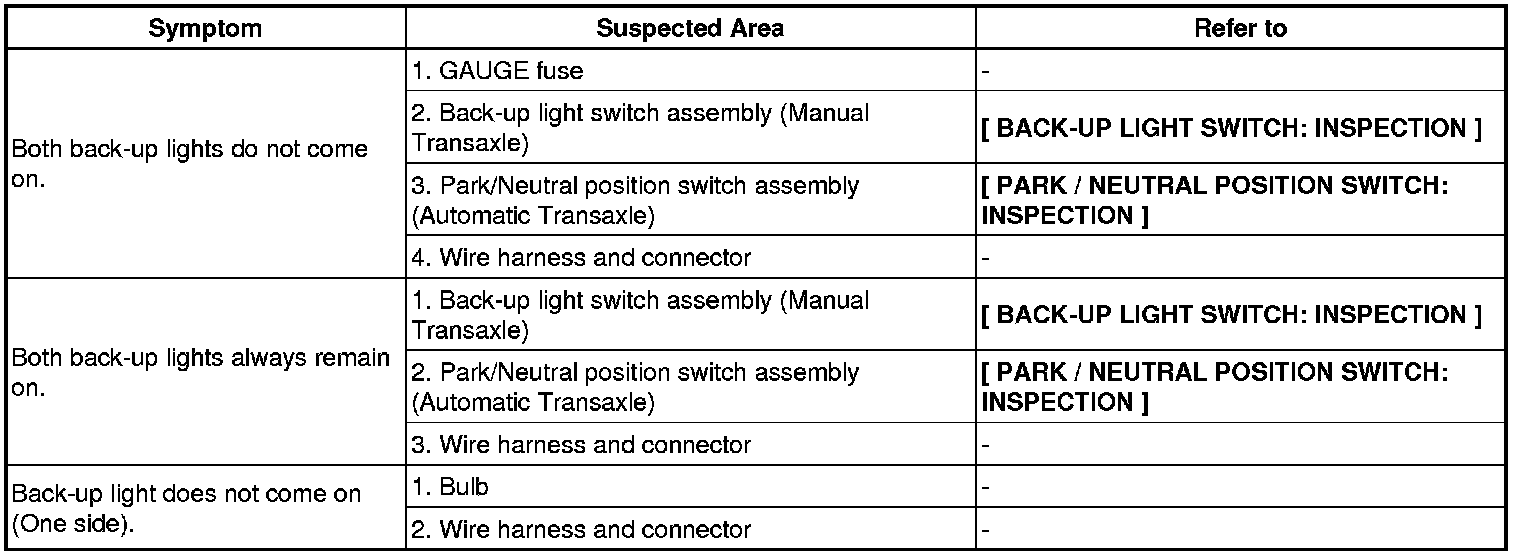

Back-up light system

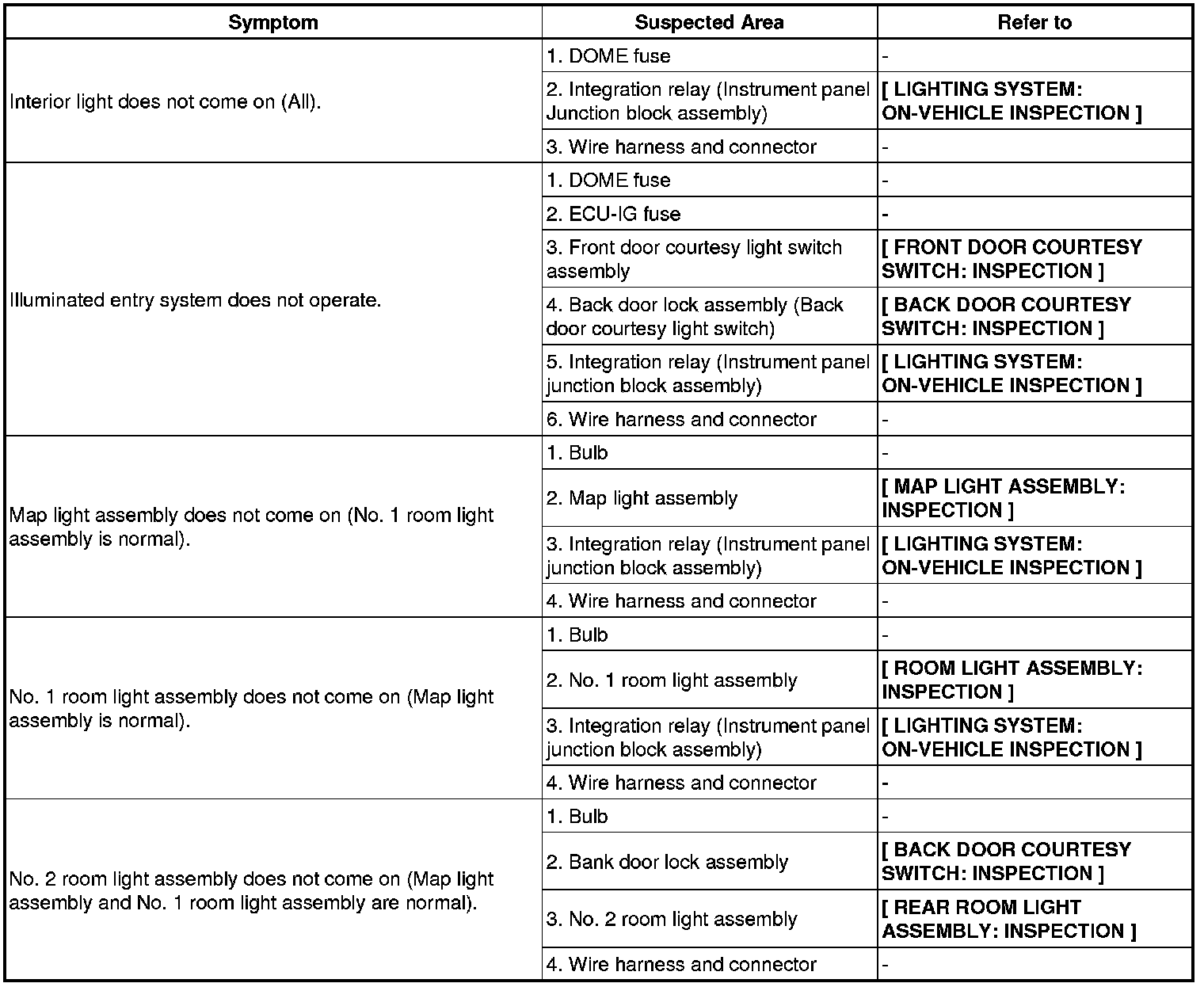

Interior light system

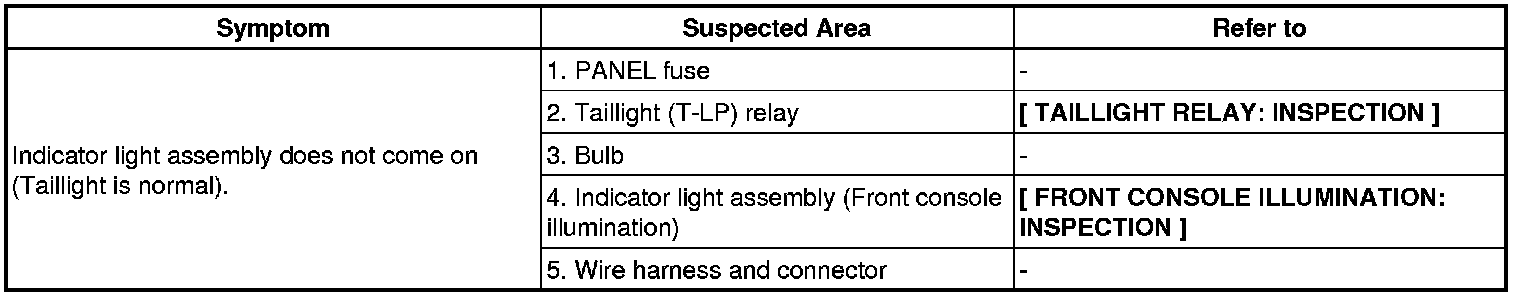

Illumination system
