Problem Symptoms Table

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

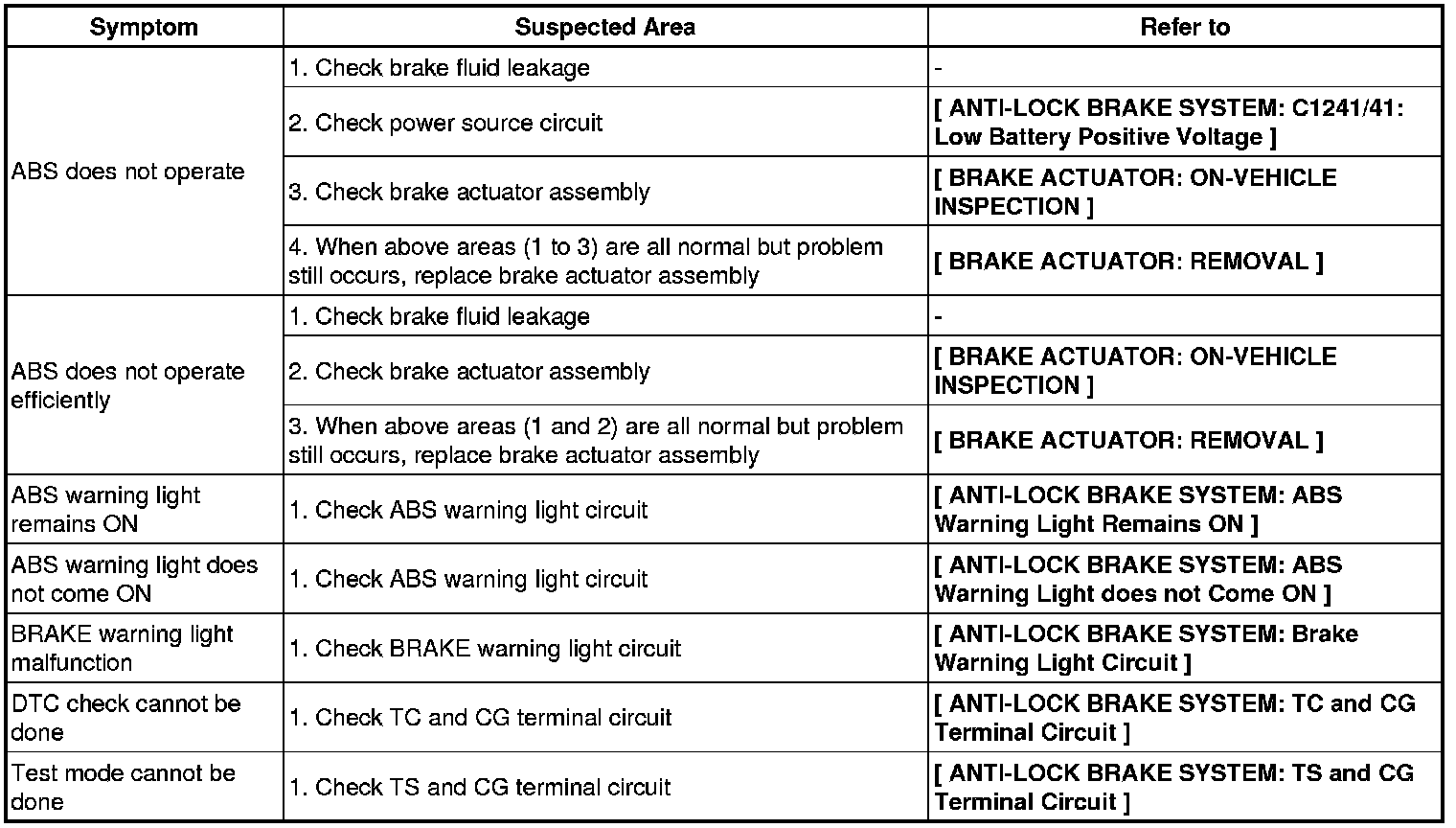

If the ABS has a problem even when DTCs are not output, use the table below to identify the potential causes of the symptoms.
NOTE: When replacing the brake actuator assembly or sensor, turn the ignition switch OFF.

Anti-lock Brake System
