Installation

AUDIO / VISUAL: REAR SPEAKER: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.





1. INSTALL REAR SPEAKER ASSEMBLY LH

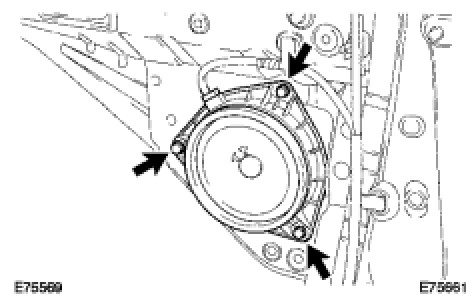

(a) Install the rear speaker with the 3 screws.
(b) Connect the connector.
2. INSTALL SIDE NO. 1 TRIM ASSEMBLY LH Installation

3. INSTALL LUGGAGE COMPARTMENT TRIM HOOK NO.1
4. INSTALL FRONT DOOR SCUFF PLATE LH Installation

5. INSTALL REAR SEATBACK ASSEMBLY LH Installation

6. INSTALL REAR SEAT CUSHION ASSEMBLY Installation

7. INSTALL NO. 1 REAR FLOOR BOARD Installation

8. INSTALL ROPE HOOK ASSEMBLY
9. INSTALL DECK FLOOR BOX RH Installation

10. INSTALL DECK FLOOR BOX LH Installation

11. INSTALL BACK DOOR SCUFF PLATE Installation

12. INSTALL DECK BOARD SUB-ASSEMBLY
13. INSTALL TONNEAU COVER ASSEMBLY
14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
15. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
