AUDIO / VISUAL: RADIO ANTENNA CORD: INSTALLATION

INSTALLATION

1. INSTALL ANTENNA CORD SUB-ASSEMBLY

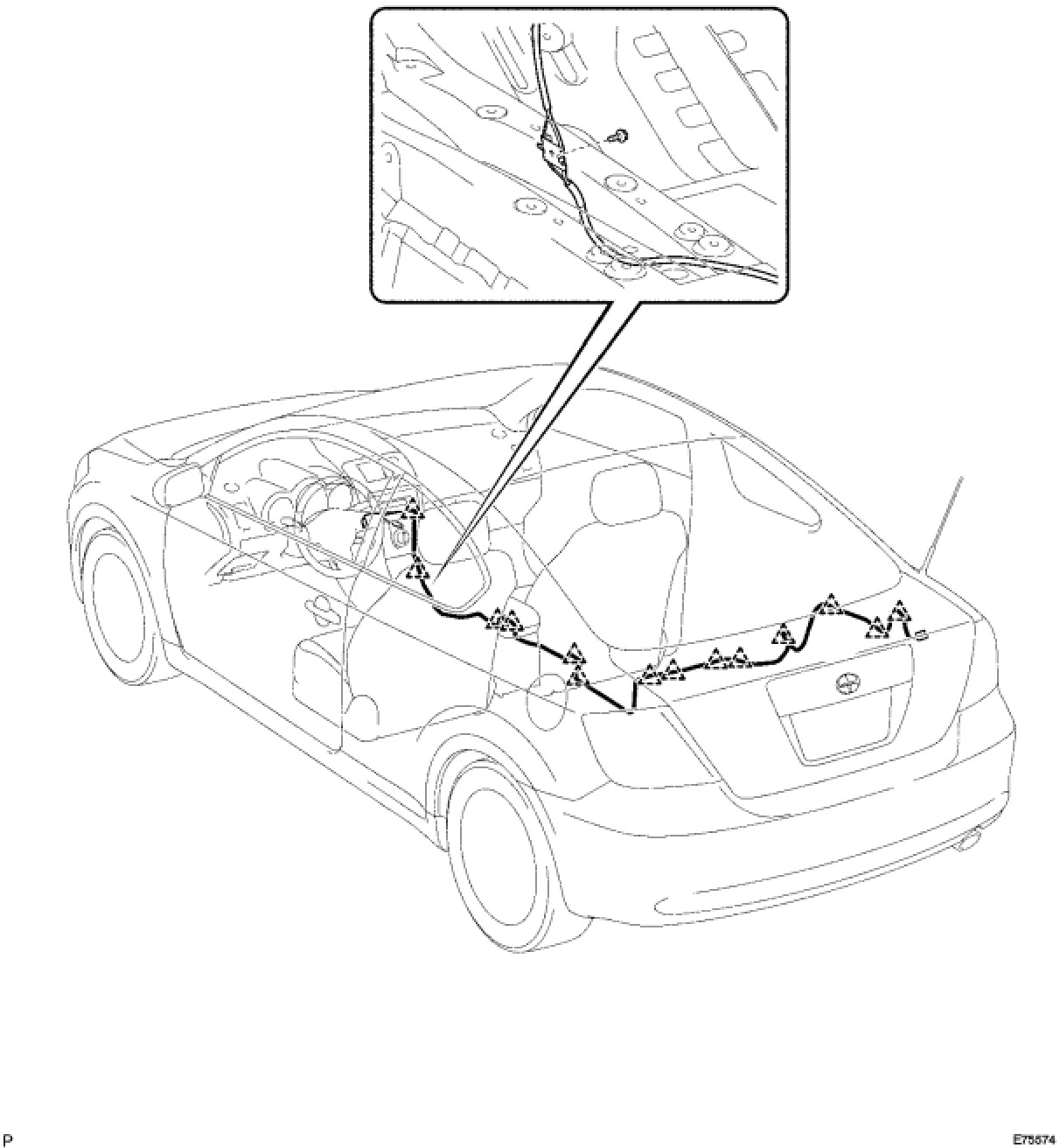

(a) Attach all clamps to install the antenna cord.
(b) Install the bolt.





2. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY Installation

3. INSTALL REAR CONSOLE BOX ASSEMBLY Installation

4. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY Installation

5. INSTALL UPPER CONSOLE PANEL Installation

6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation

7. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH Installation

8. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK
9. INSTALL NO. 1 SIDE TRIM ASSEMBLY RH Installation

10. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
11. INSTALL FRONT DOOR SCUFF PLATE RH Installation

12. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH Installation

13. INSTALL LAP BELT OUTER ANCHOR COVER
14. INSTALL REAR SEATBACK ASSEMBLY RH Installation

15. INSTALL REAR SEAT CUSHION ASSEMBLY Installation

16. INSTALL FRONT SEAT ASSEMBLY Installation

17. INSTALL SEAT TRACK BRACKET COVER INNER RH Installation

18. INSTALL SEAT TRACK BRACKET COVER OUTER RH Installation

19. INSTALL REAR NO. 1 FLOOR BOARD Installation

20. INSTALL ROPE HOOK ASSEMBLY
21. INSTALL DECK FLOOR BOX RH Installation

22. INSTALL DECK FLOOR BOX LH Installation

23. INSTALL BACK DOOR SCUFF PLATE Installation

24. INSTALL DECK BOARD SUB-ASSEMBLY
25. INSTALL TONNEAU COVER ASSEMBLY
26. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
27. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
