AUDIO / VISUAL: AMPLIFIER ANTENNA: INSTALLATION

INSTALLATION

1. INSTALL AMPLIFIER ANTENNA ASSEMBLY

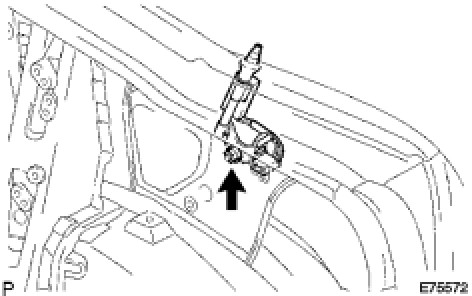

(a) Install the amplifier antenna to its original position.






(b) Install the nut.
(c) Connect the connector.

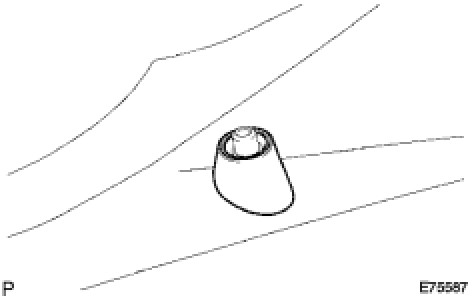

2. INSTALL ANTENNA ORNAMENT
(a) Install the antenna ornament.
3. INSTALL ANTENNA NUT
(a) Using snap ring pliers, install the antenna nut.
HINT: Wrap the tip of the snap ring pliers with protective tape to prevent damage to the parts.

4. INSTALL ROOF ANTENNA POLE SUB-ASSEMBLY
5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH Installation

6. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
7. INSTALL NO. 1 SIDE TRIM ASSEMBLY RH Installation

8. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK
9. INSTALL FRONT DOOR SCUFF PLATE RH Installation

10. INSTALL REAR SEATBACK ASSEMBLY RH Removal

11. INSTALL REAR SEAT CUSHION ASSEMBLY Installation

12. INSTALL REAR NO. 1 FLOOR BOARD Installation

13. INSTALL ROPE HOOK
14. INSTALL DECK FLOOR BOX RH Installation

15. INSTALL DECK FLOOR BOX LH Installation

16. INSTALL BACK DOOR SCUFF PLATE Installation

17. INSTALL DECK BOARD SUB-ASSEMBLY
18. INSTALL TONNEAU COVER ASSEMBLY
19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
20. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
