Occupant Classification System
Occupant Classification System

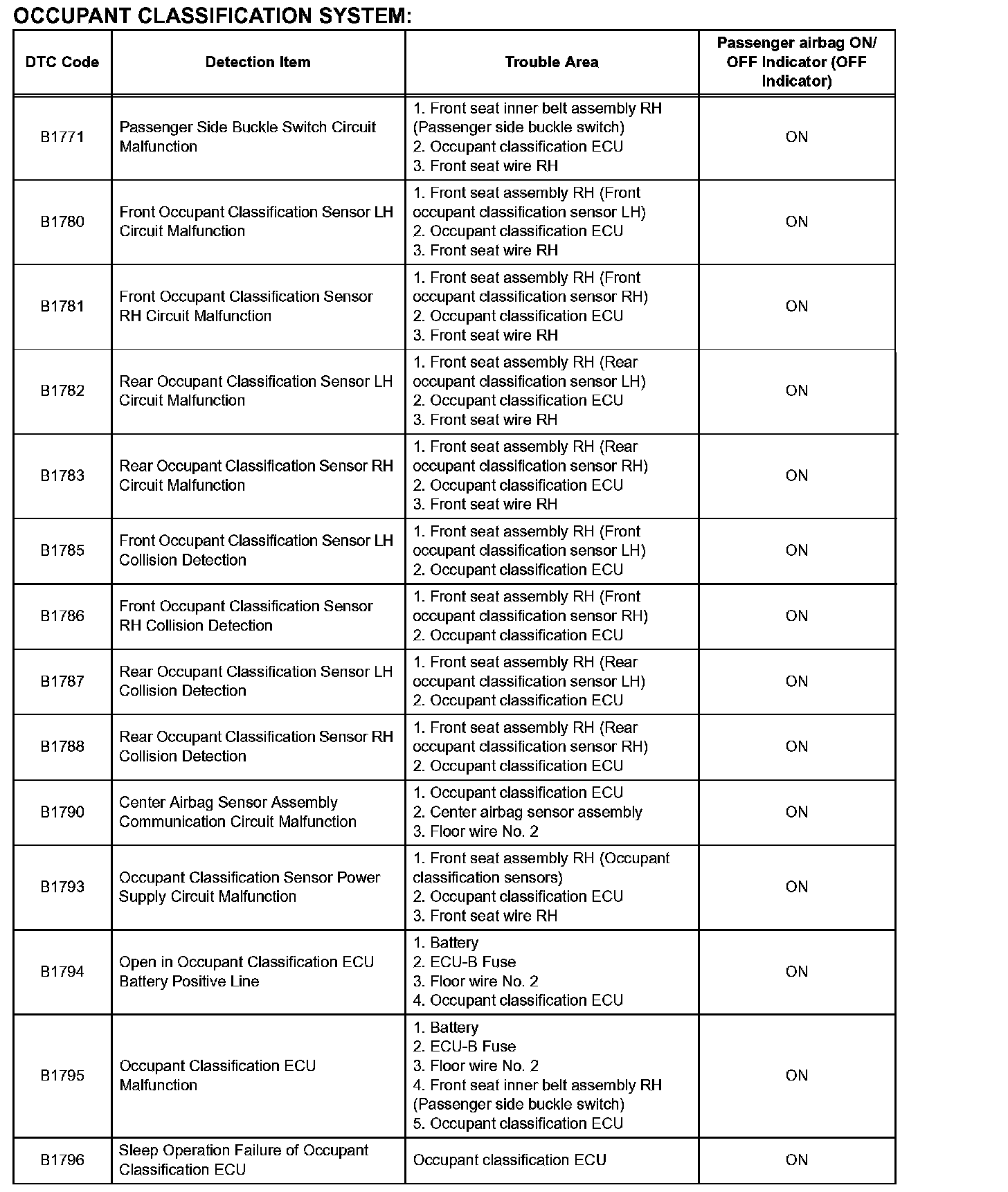

DIAGNOSTIC TROUBLE CODE CHART
B1771-B1796:
If a trouble code is displayed during the DTC check, check the circuit listed for the code in the table given.
