Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

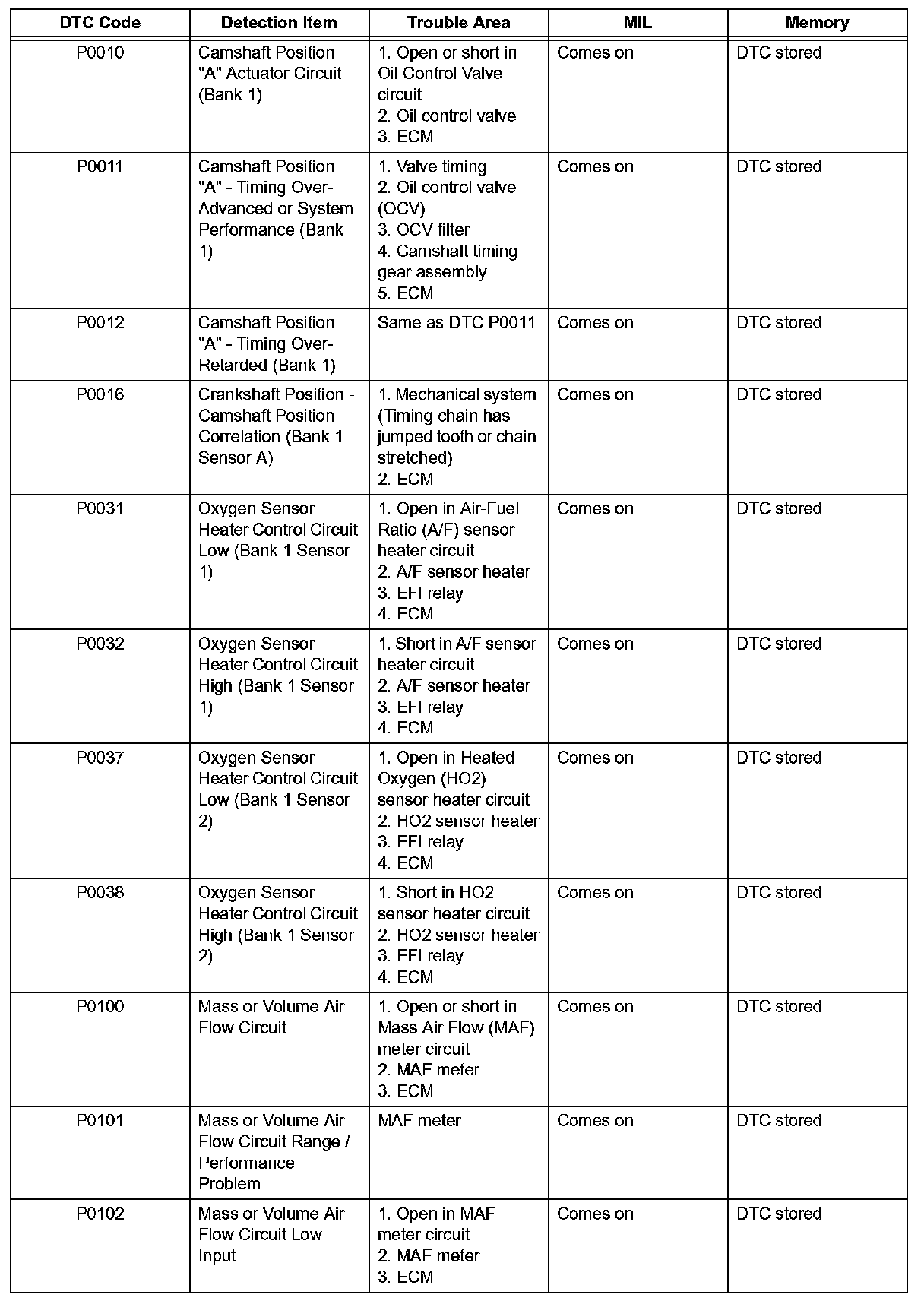

P0010-P0102:

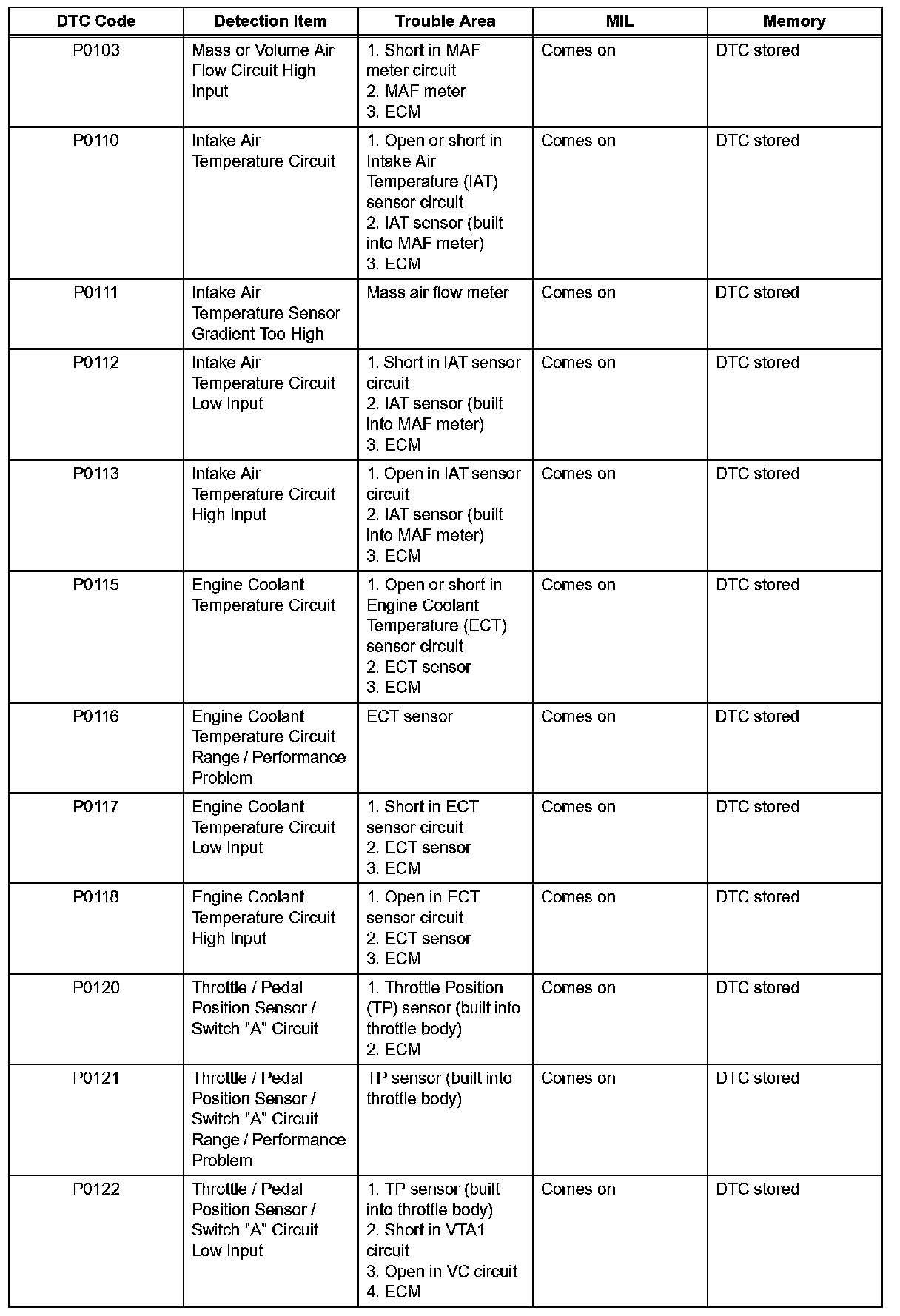

P0103-P0122:

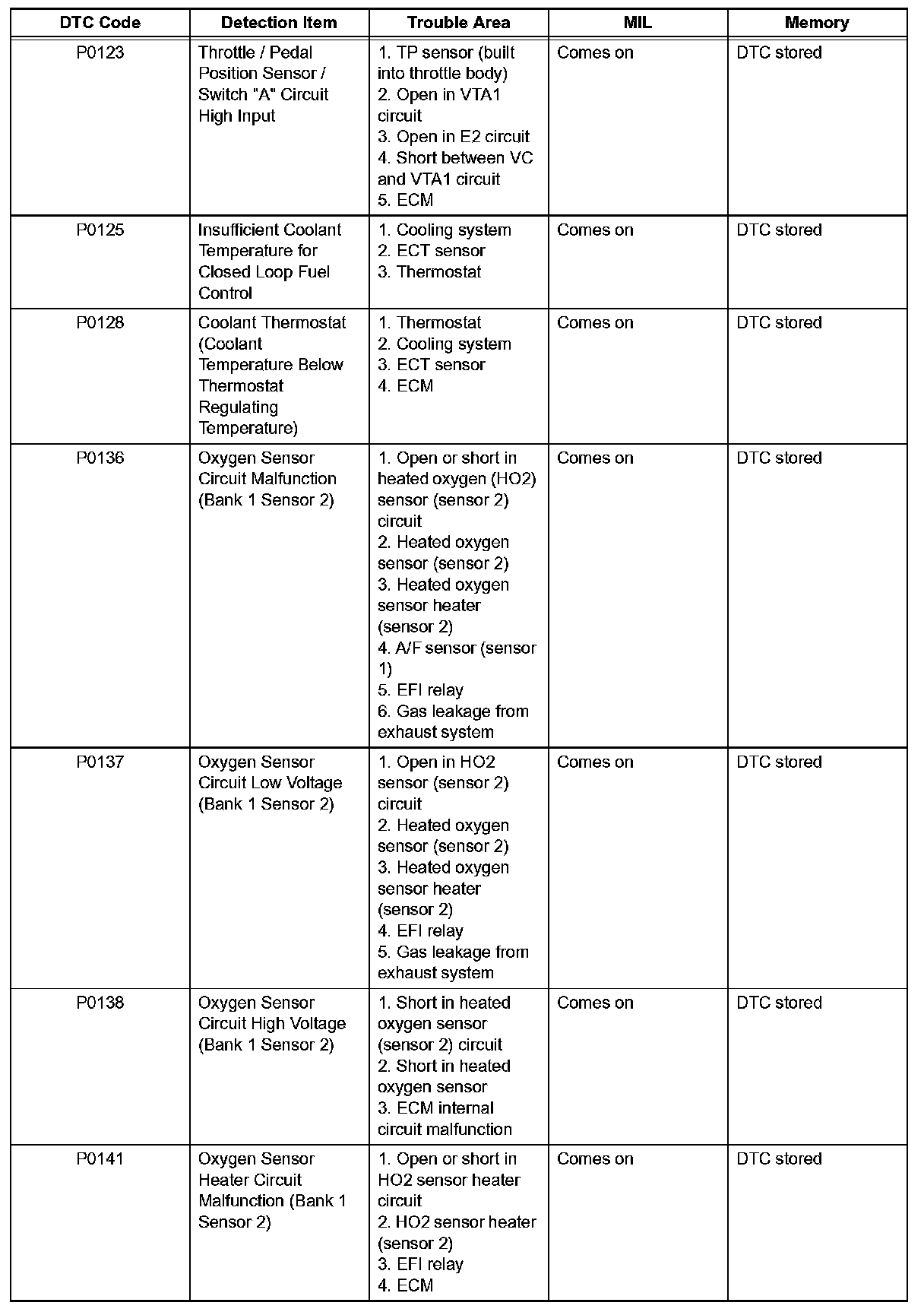

P0123-P0141:

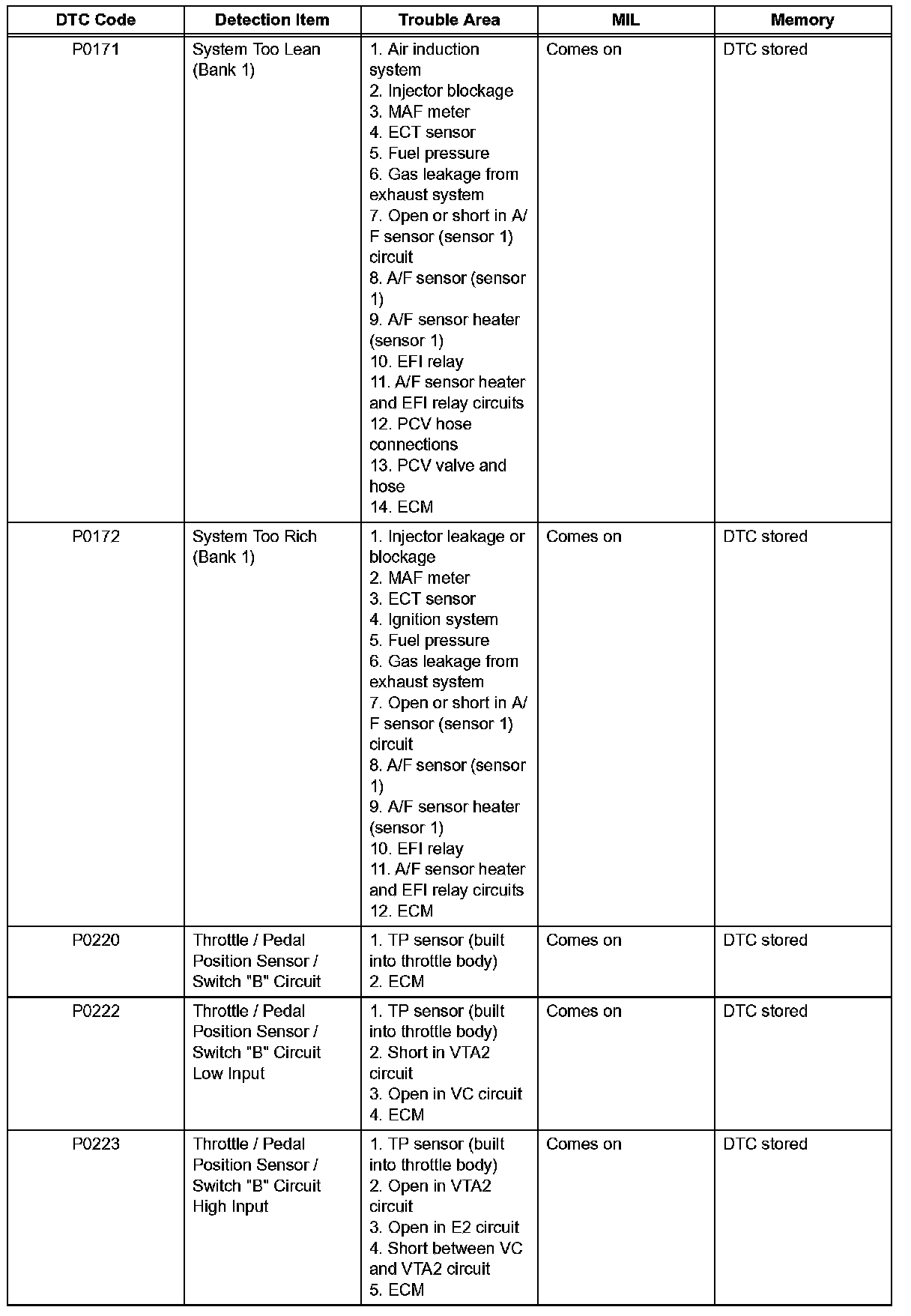

P0171-P0223:

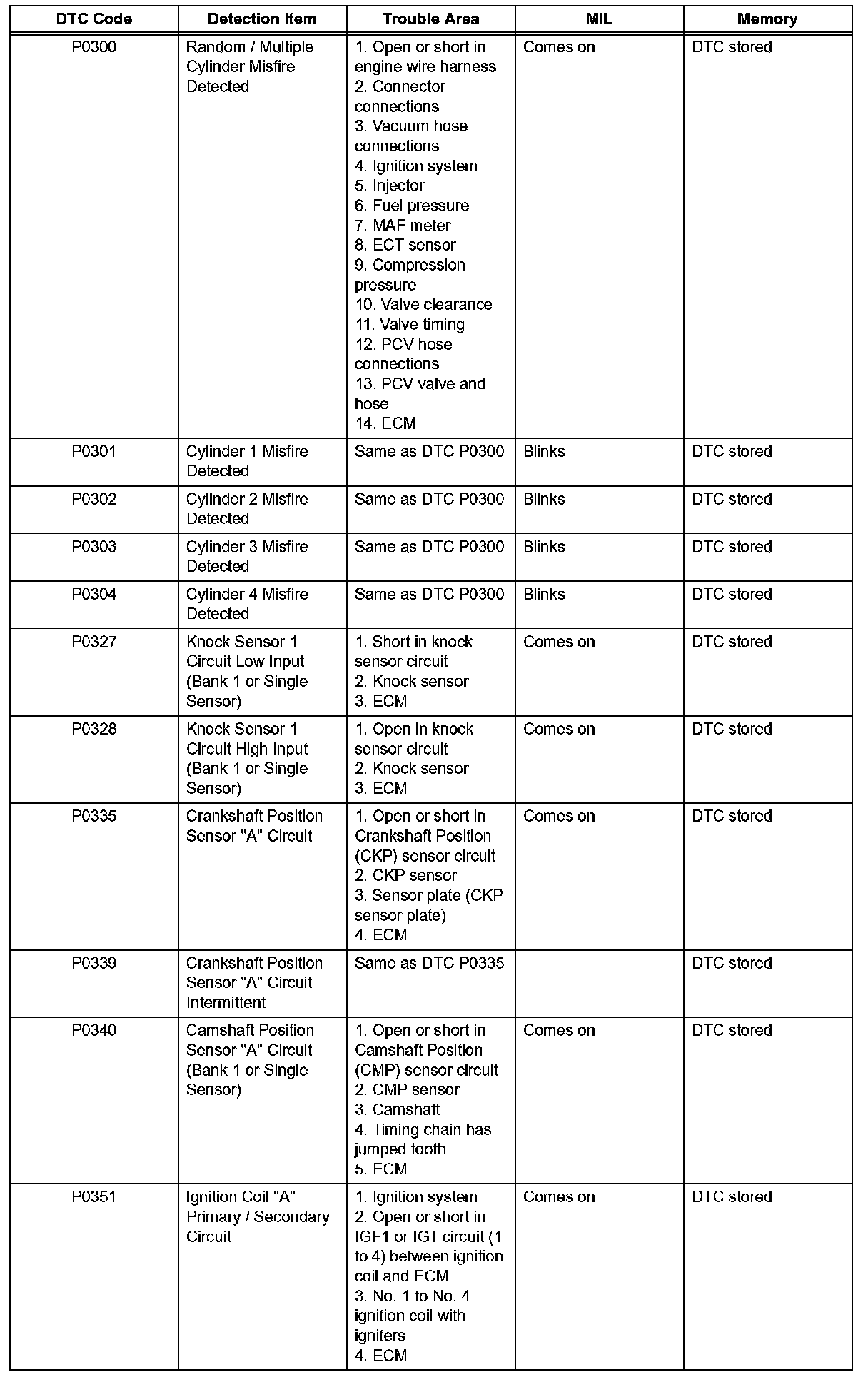

P0300-P0351:

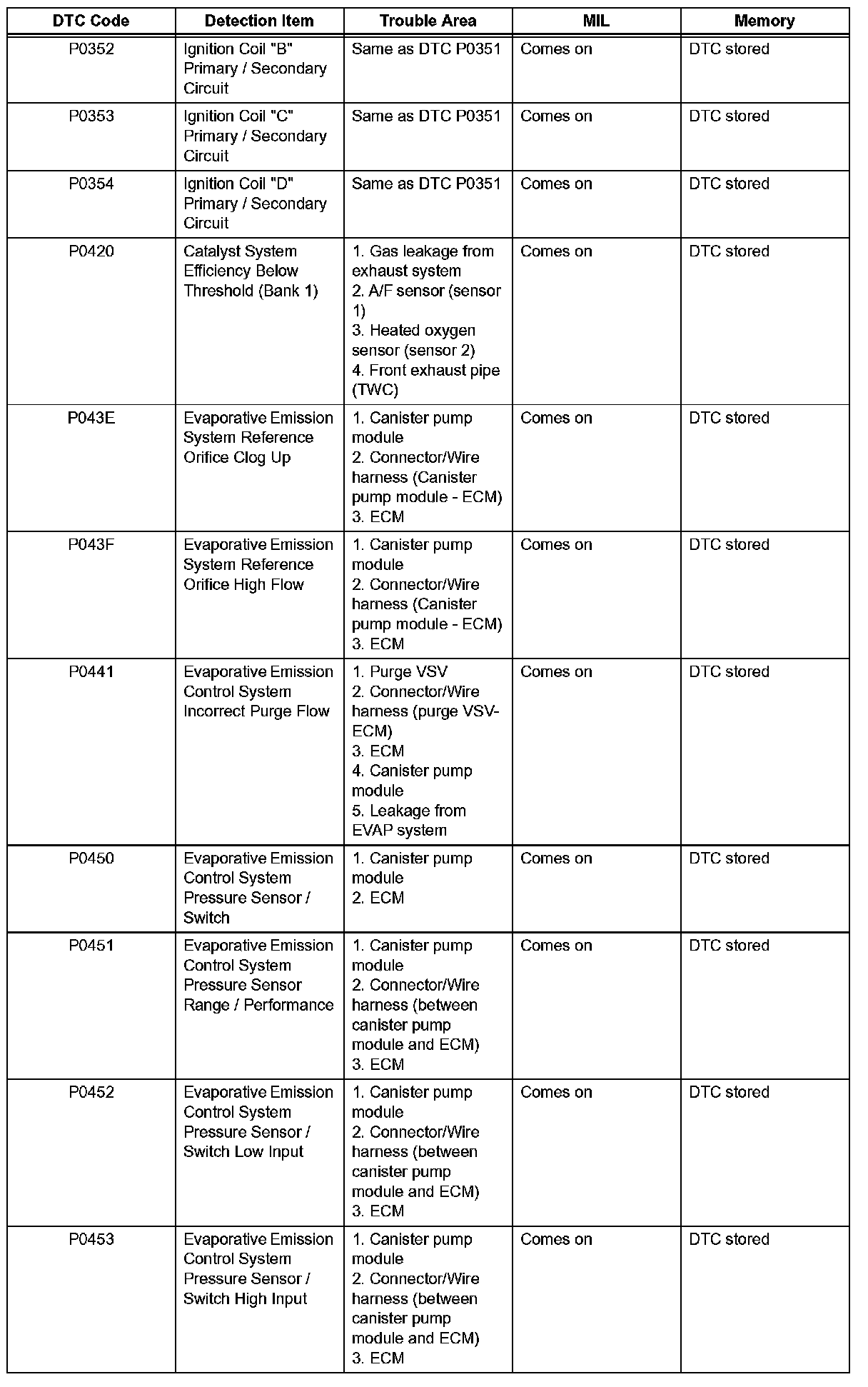

P0352-P0453:

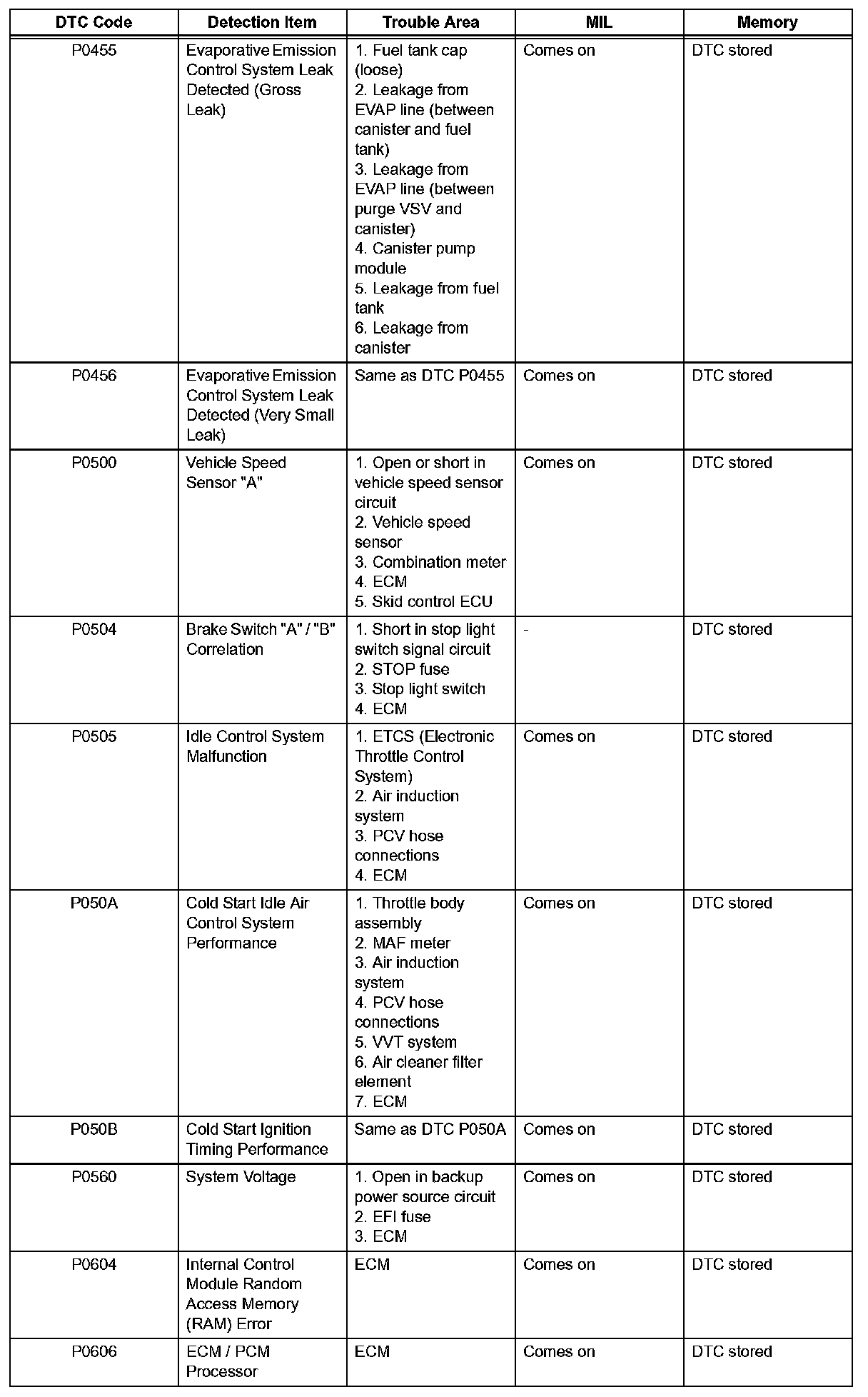

P0455-P0606:

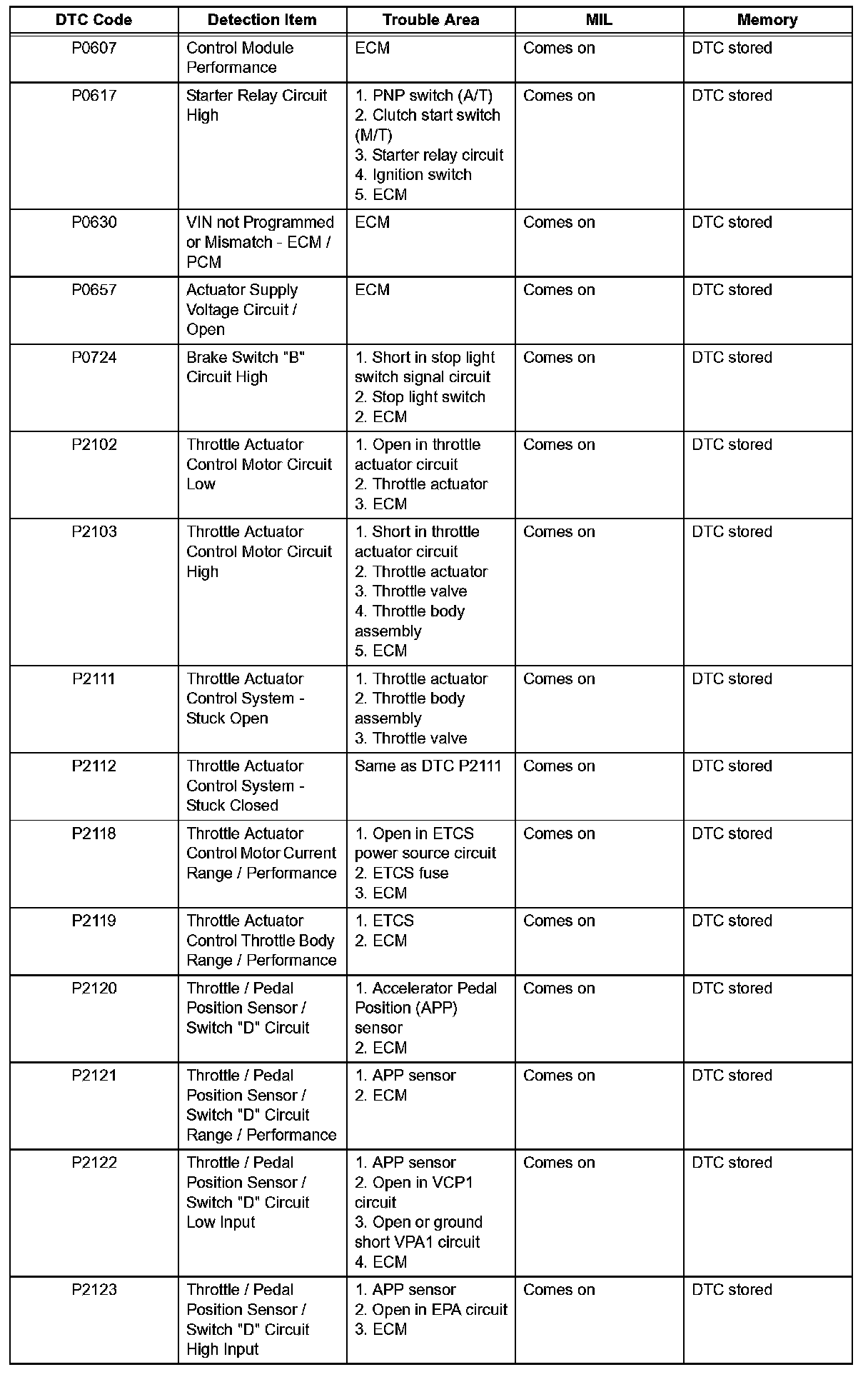

P0607-P2123:

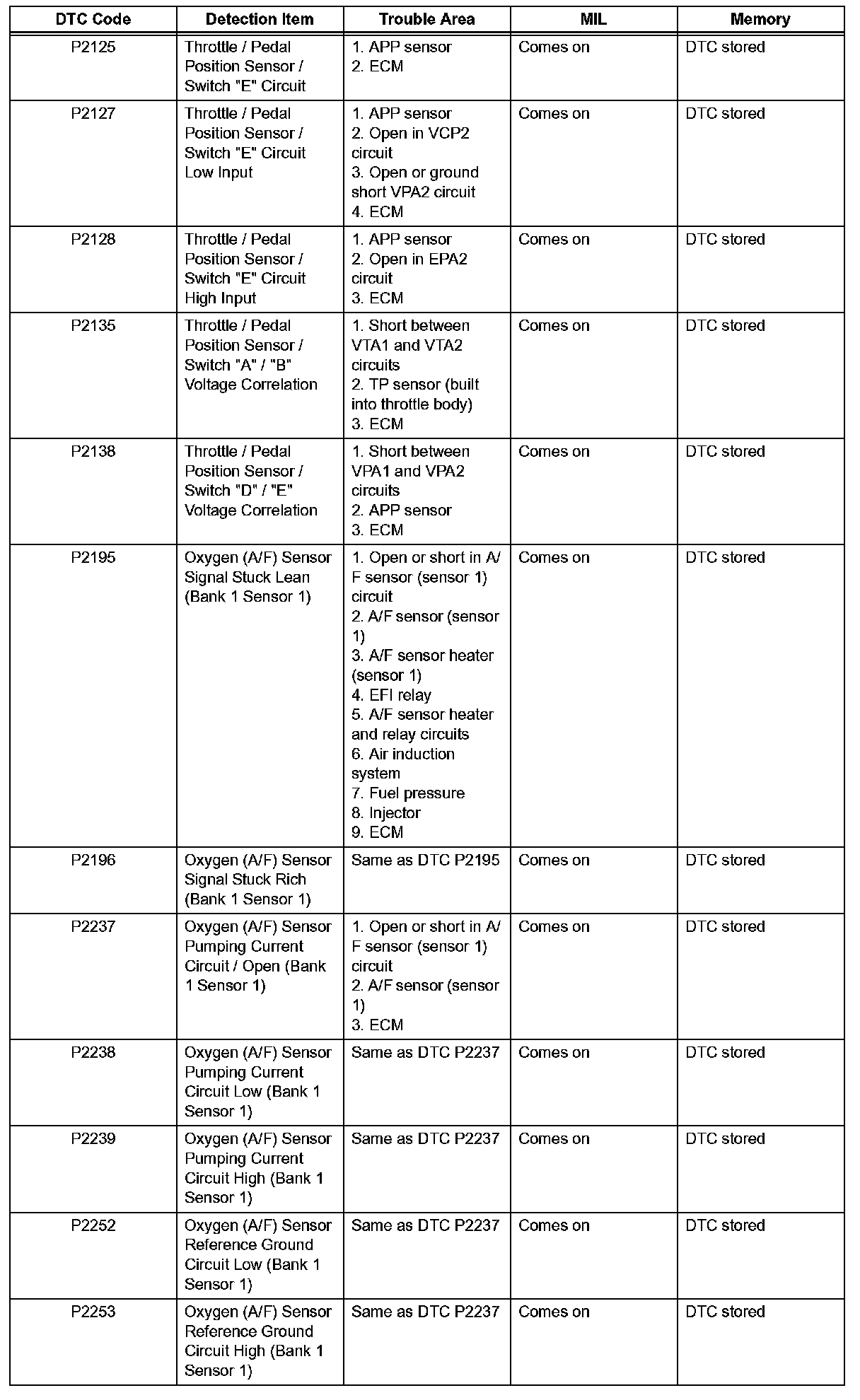

P2125-P2253:

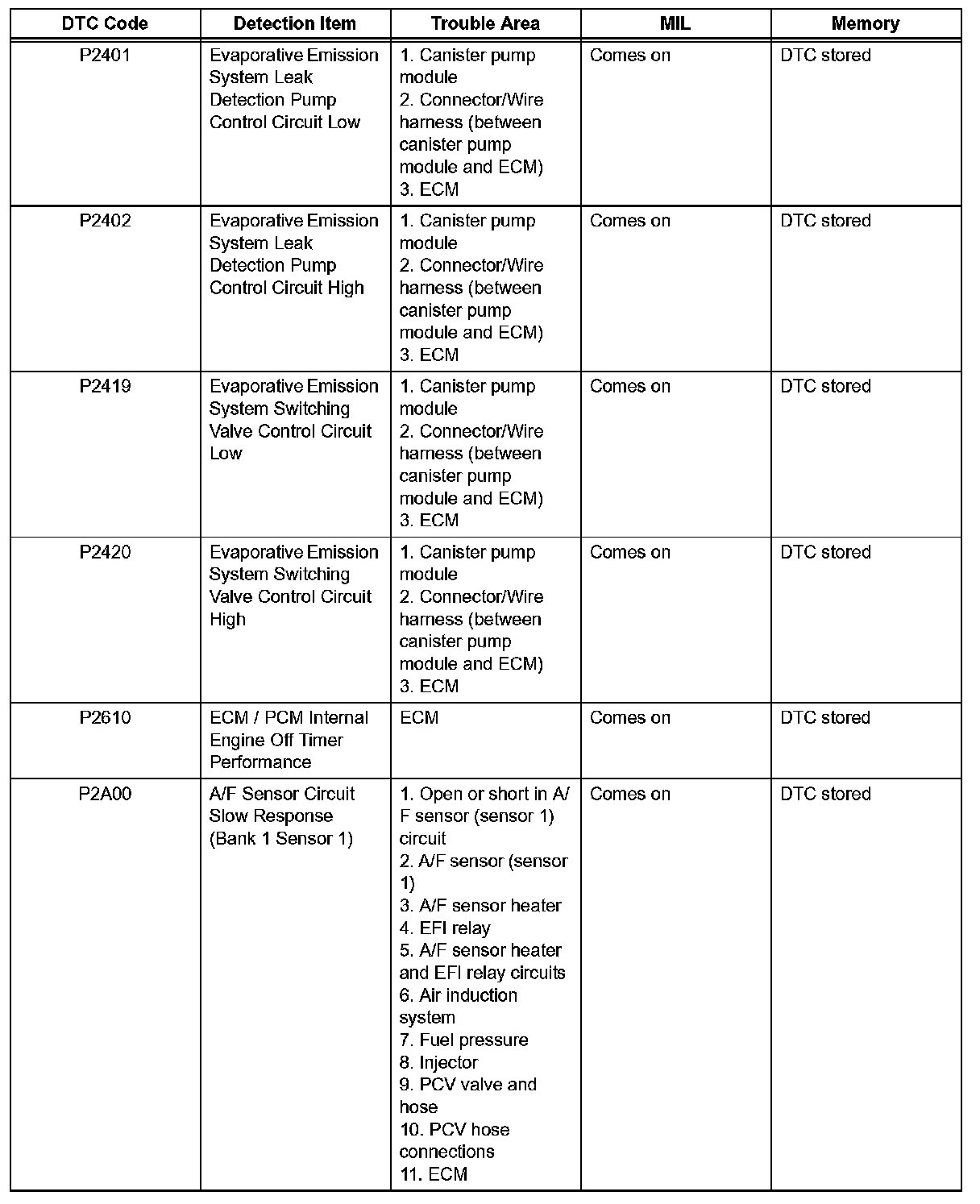

P2401-P2A00:

HINT: Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.

If a DTC is displayed, check the trouble area for the DTC listed in the table given. For details of each DTC.
