Airbag System

DIAGNOSTIC TROUBLE CODE CHART

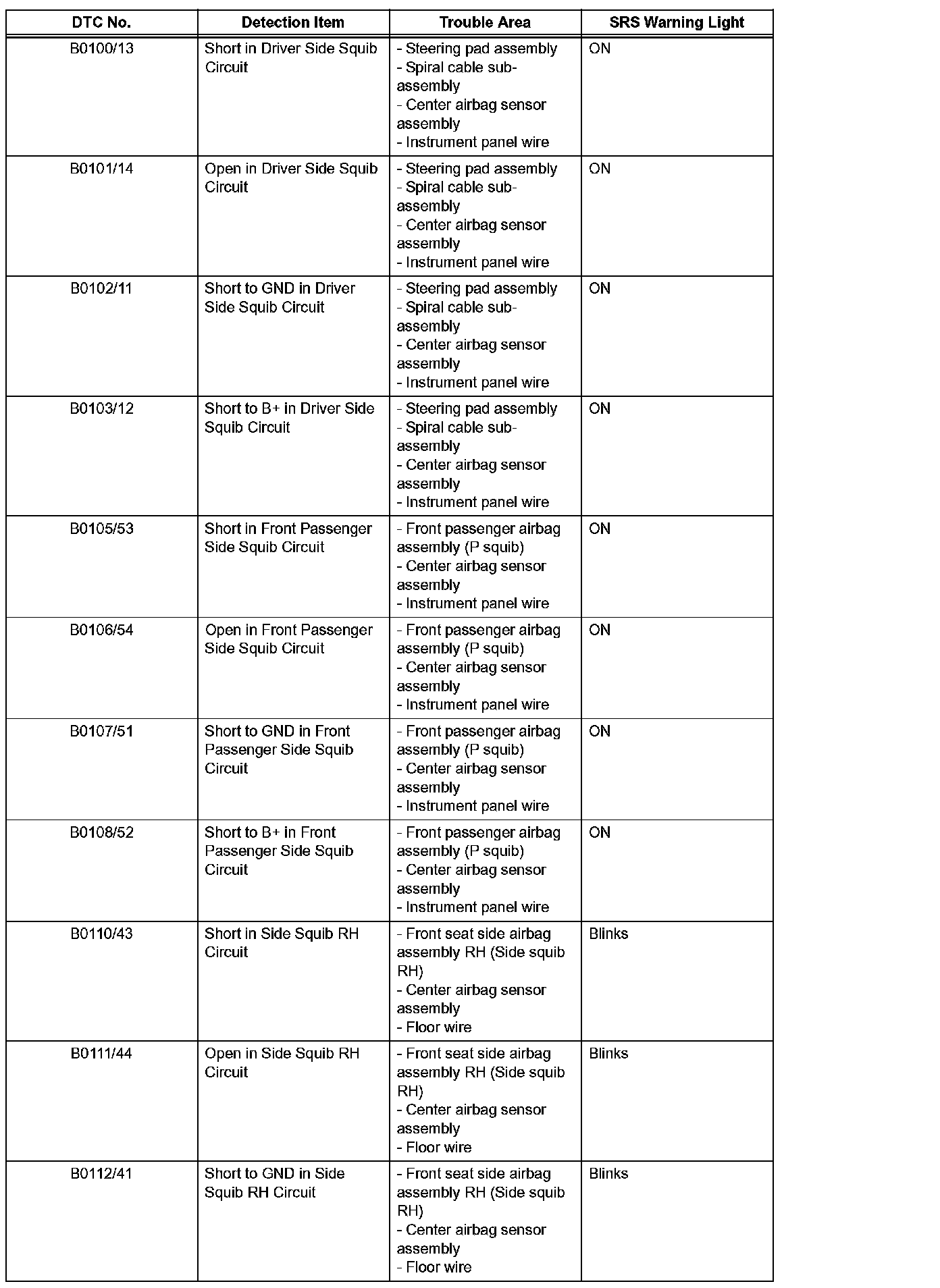

B0100/30-B0112/41:

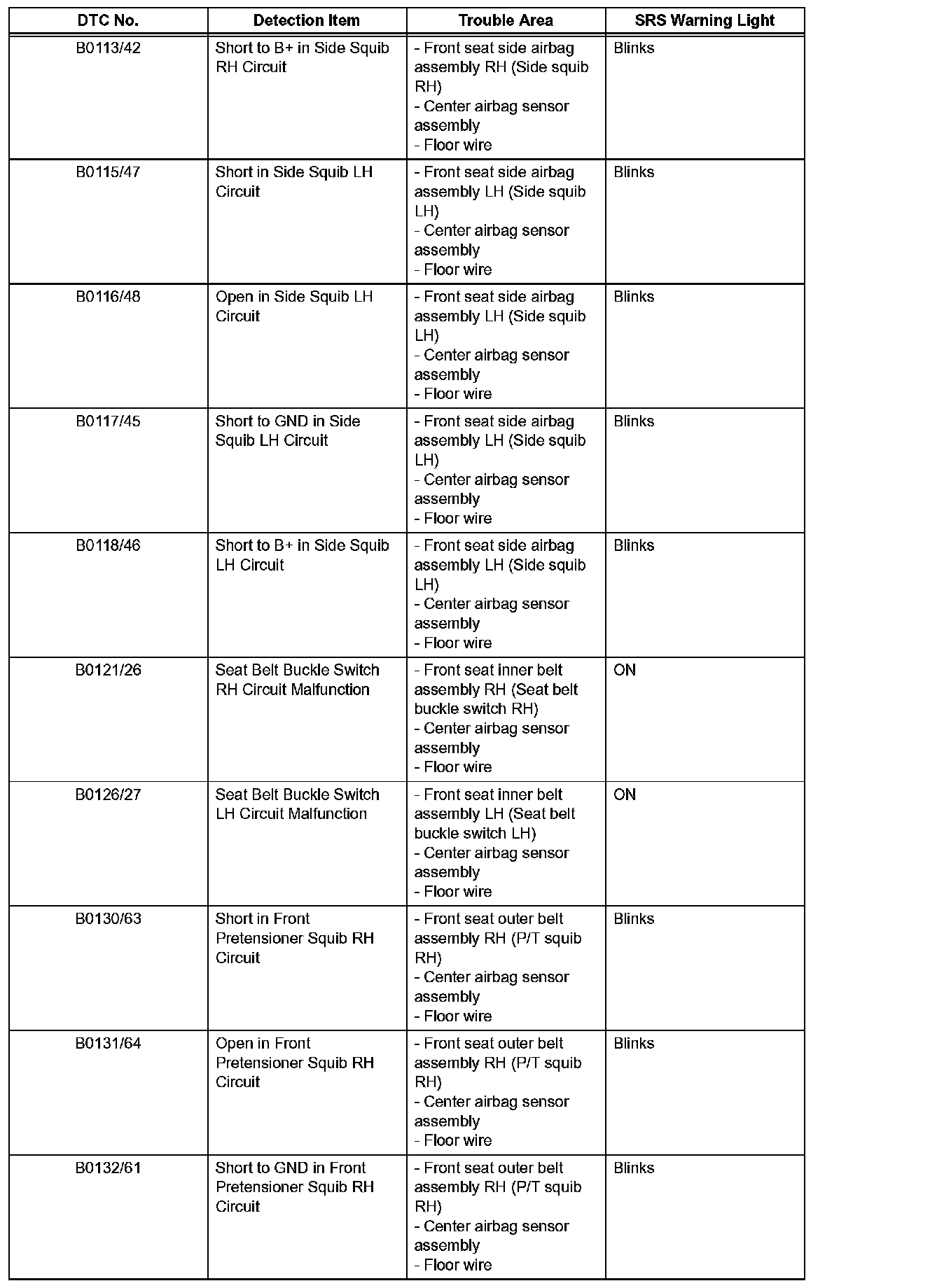

B0113/42-B0132/61:

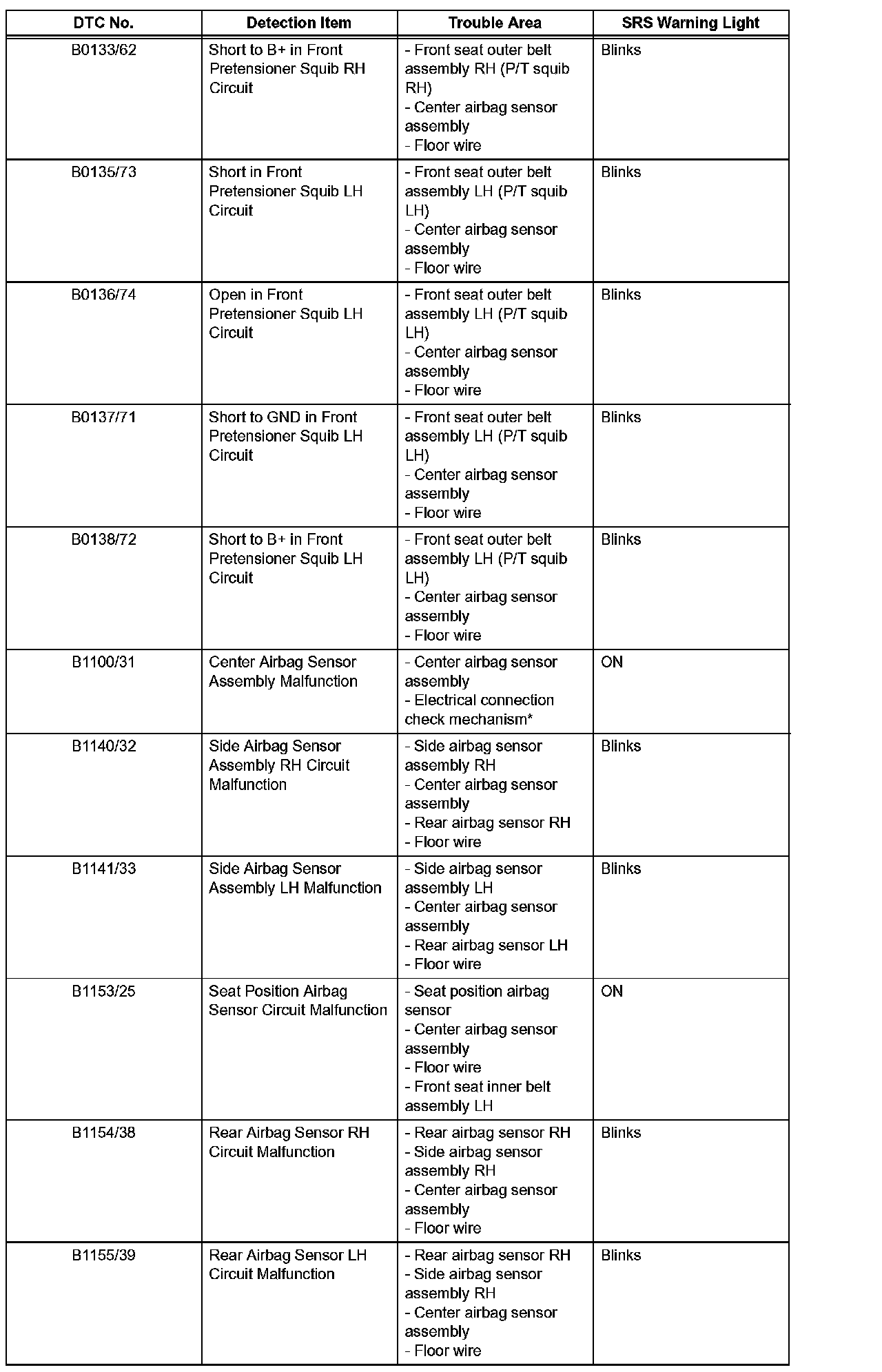

B0133/62-B1155/39:

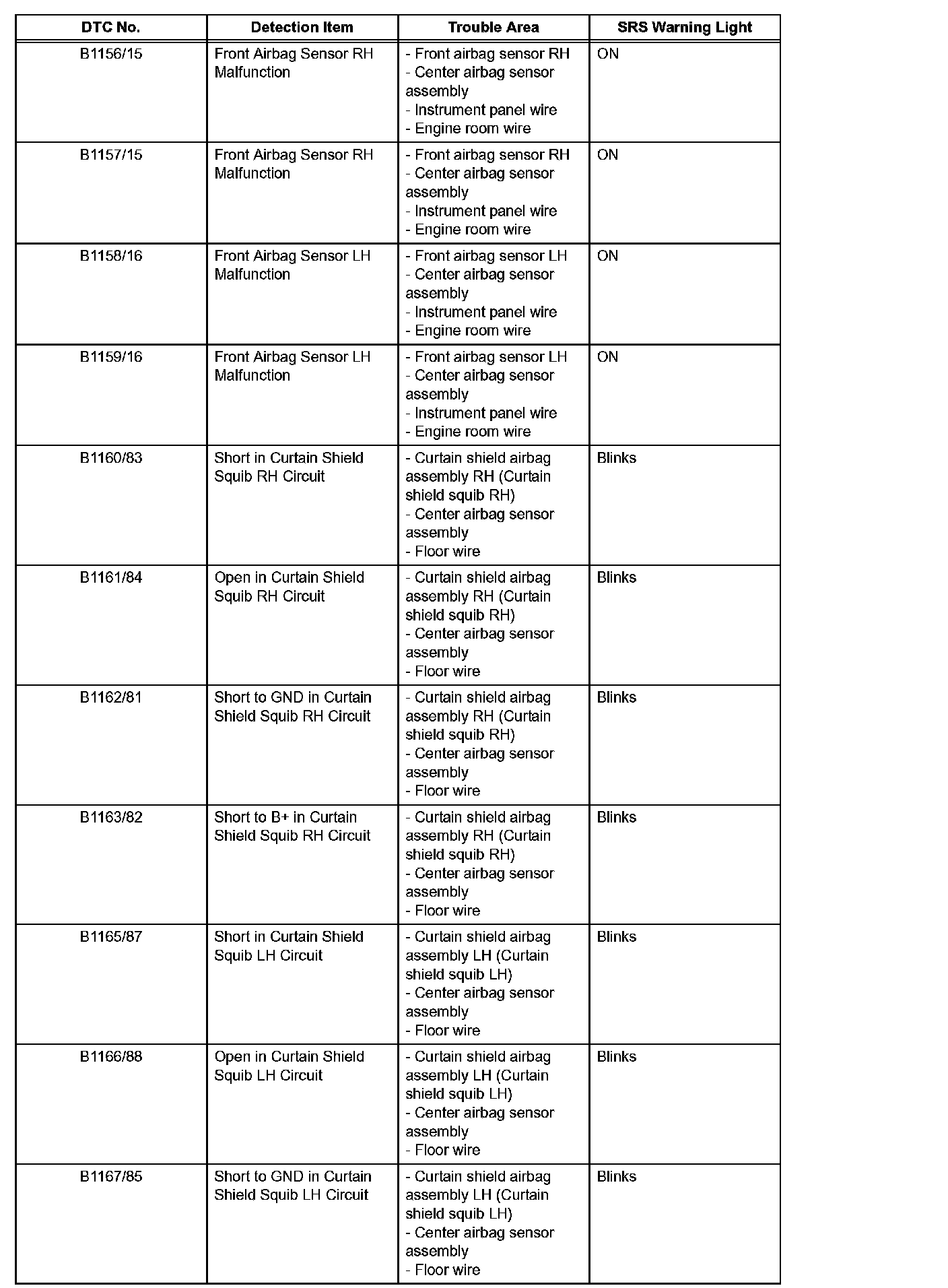

B1156/15-B1167/85:

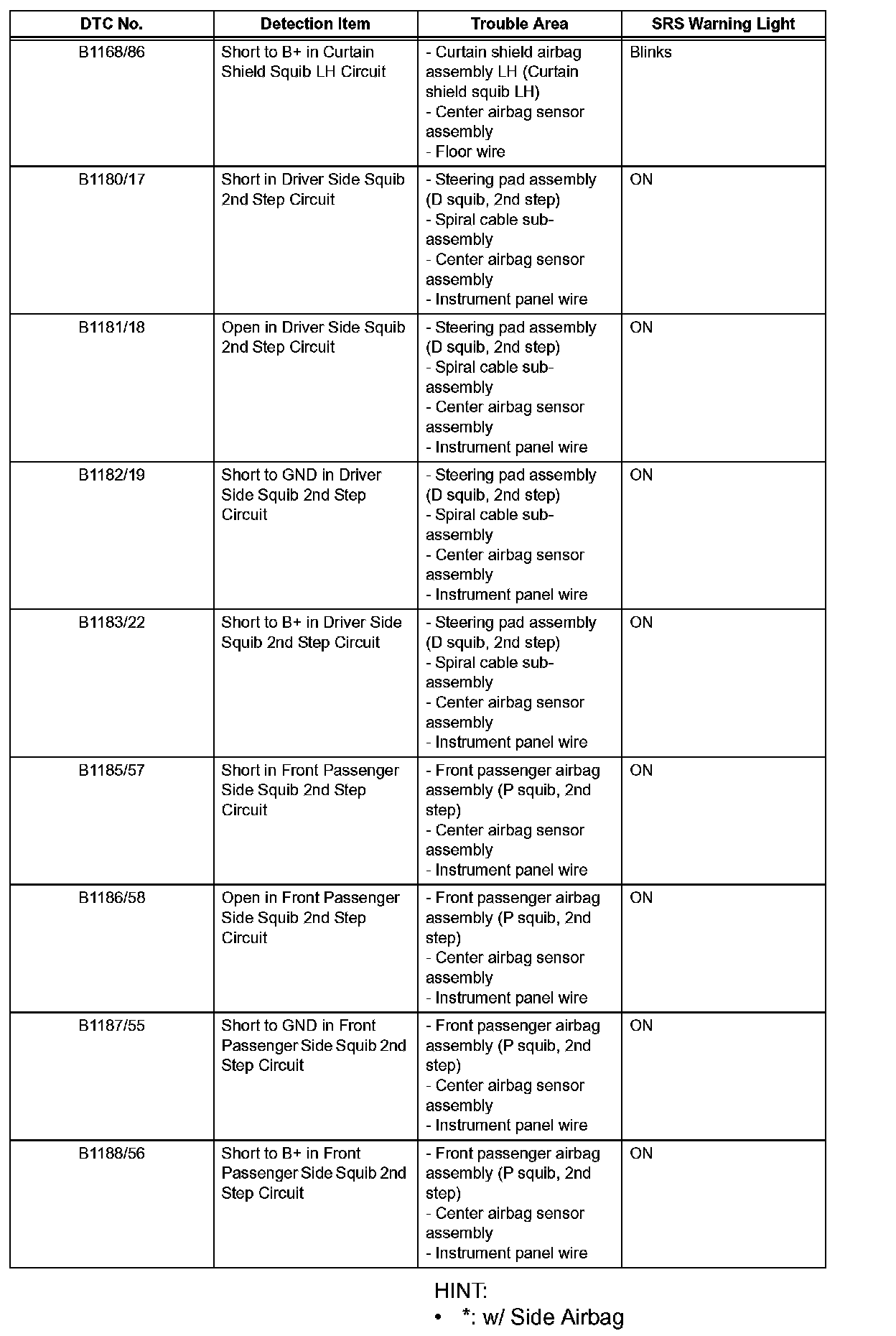

B1168/86-B1188/56:

- When the SRS warning light remains on and the DTC output is the normal system code, a voltage source drop is likely to occur. This malfunction is not stored in the memory of the center airbag sensor assembly. If the power source voltage returns to normal, the SRS warning light will automatically go off.
- When 2 or more codes are indicated, the code with the lower number appears first.
- If the displayed code is not shown in the chart, the center airbag sensor assembly may be malfunctioning.
- In the case of any malfunction concerning an open circuit, short to ground, or short to B+ due to a squib, other malfunction codes may not be detected. In this case, repair the malfunction currently indicated and then perform the malfunction diagnosis again.
