Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

P0010-P0112:

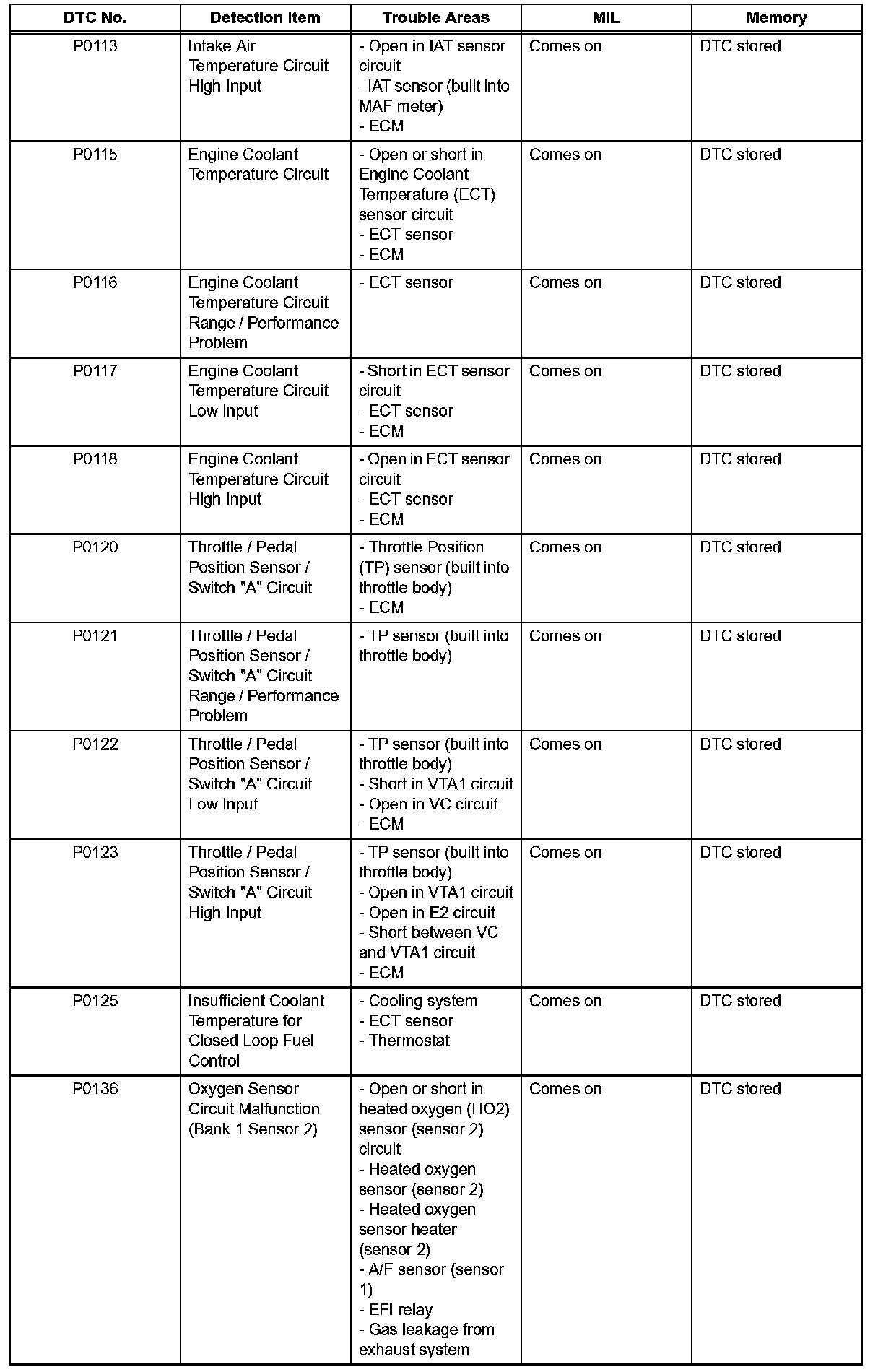

P0113-P0136:

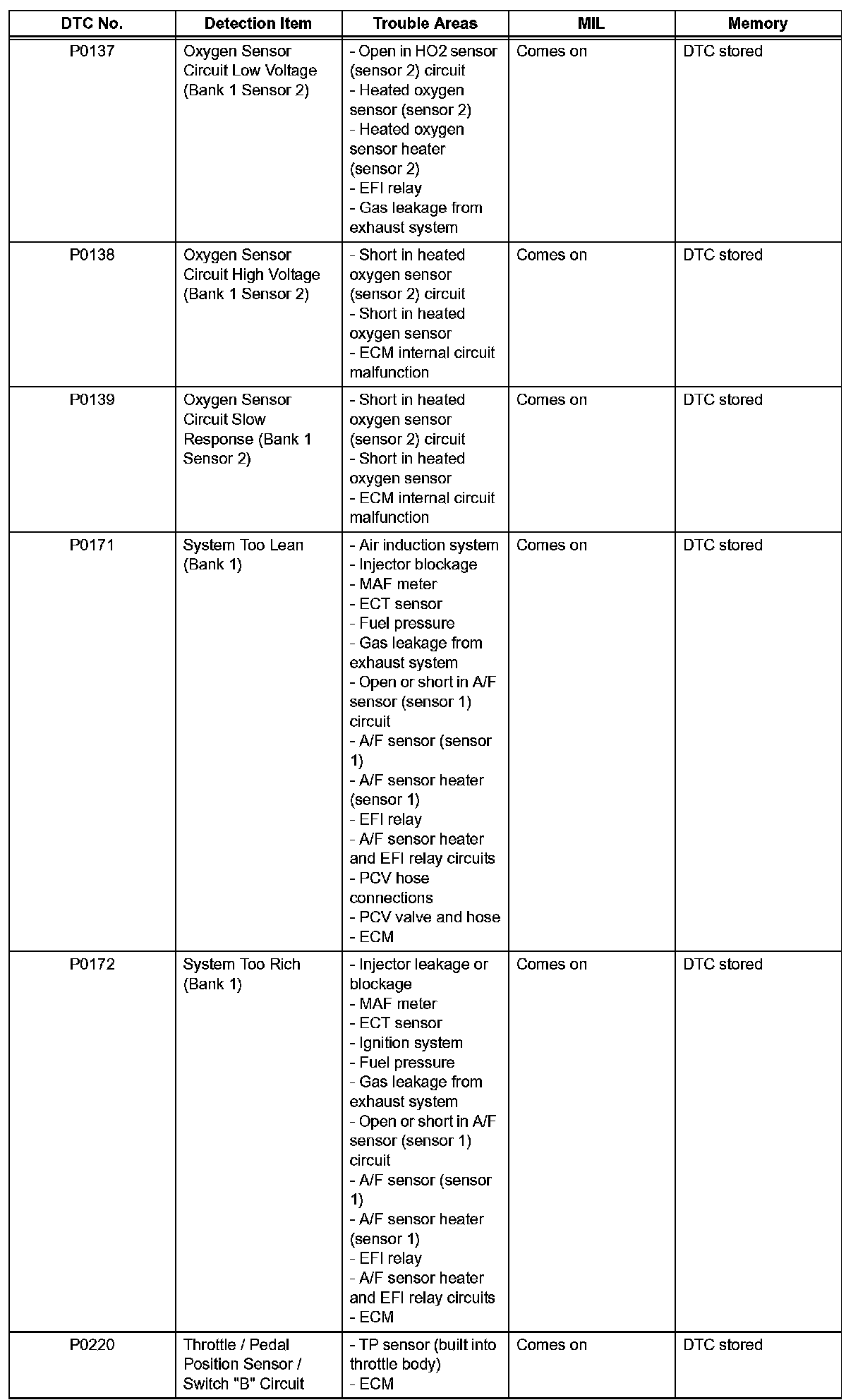

P0137-P0220:

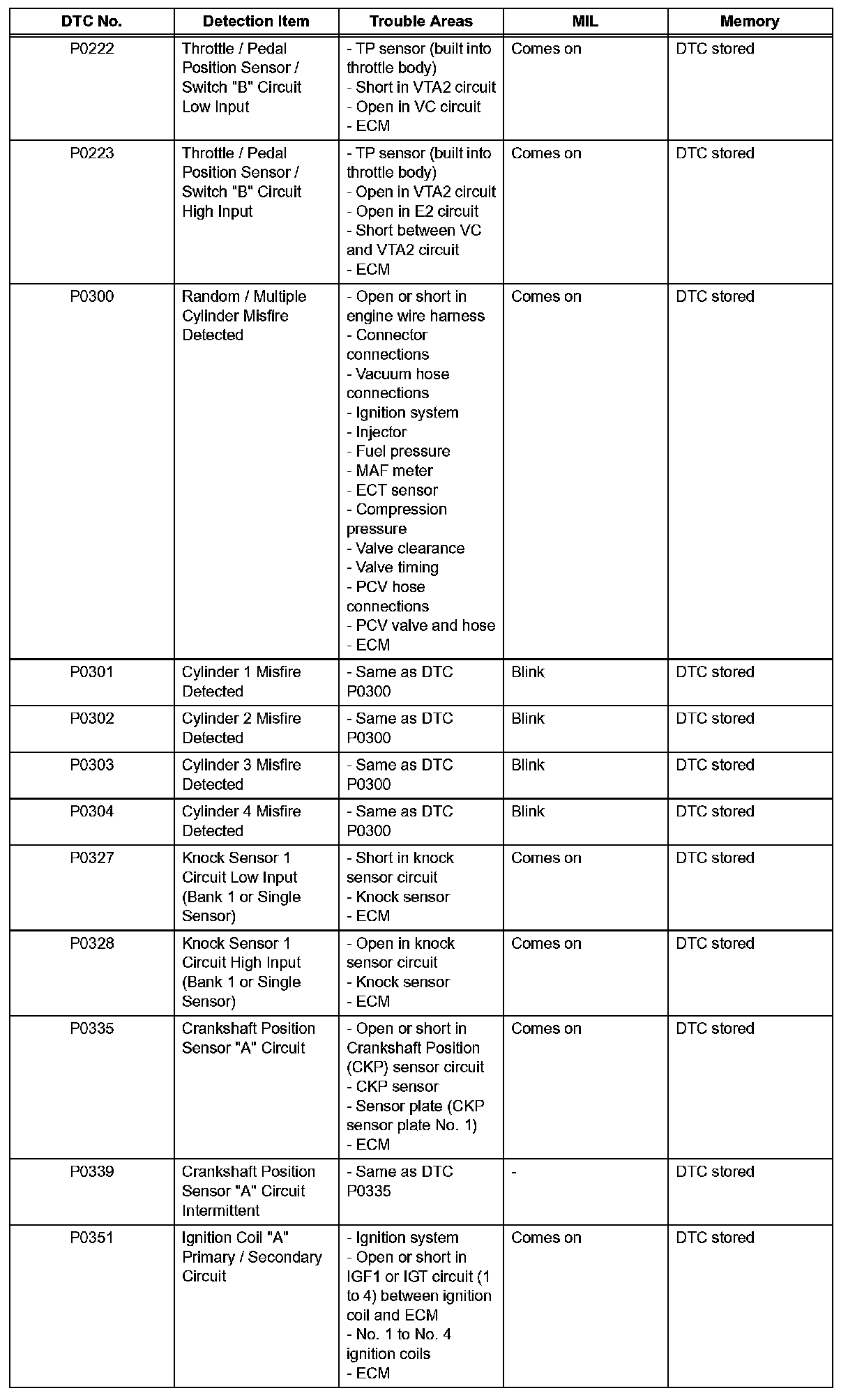

P0222-P0351:

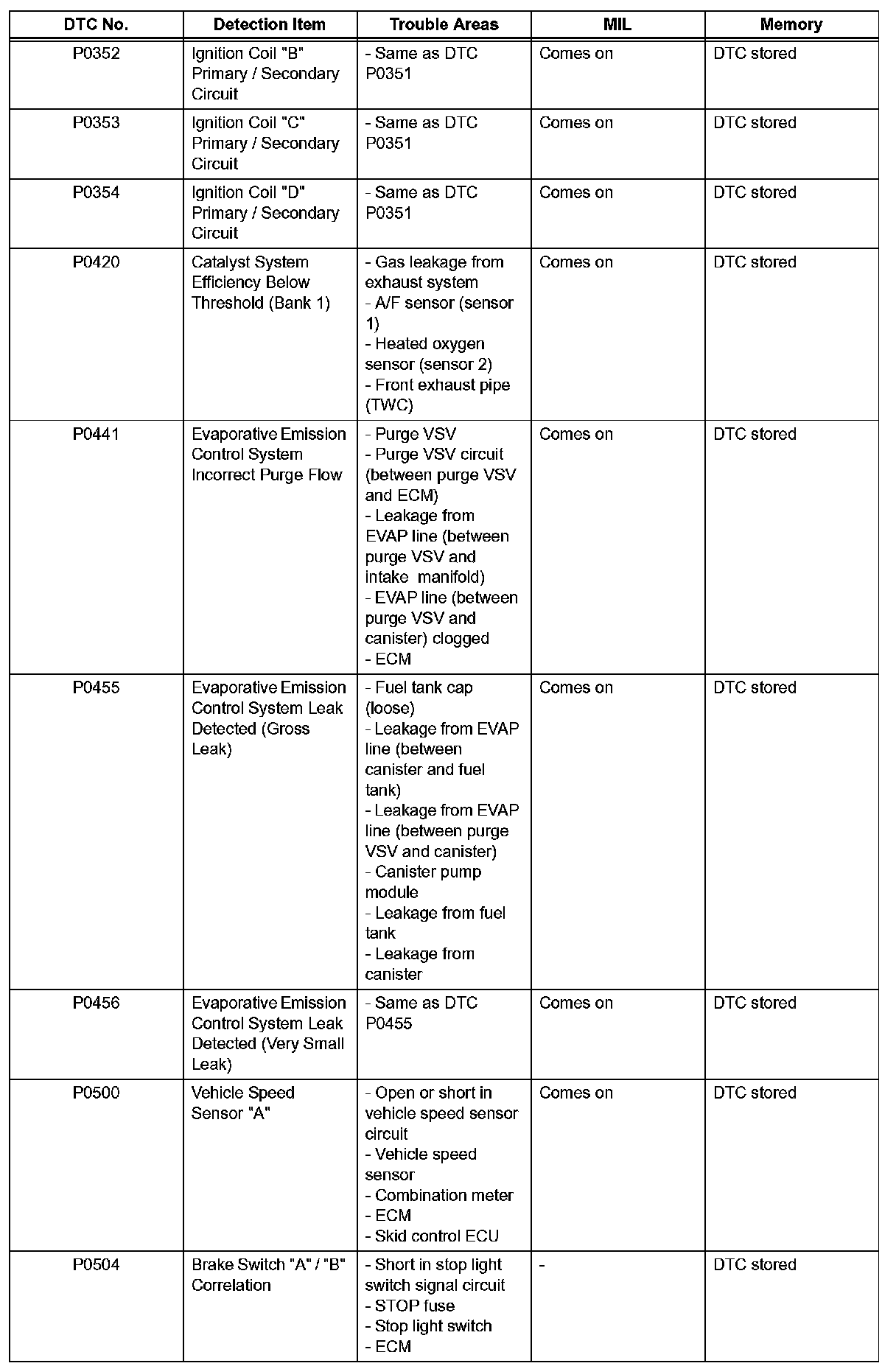

P0352-P0504:

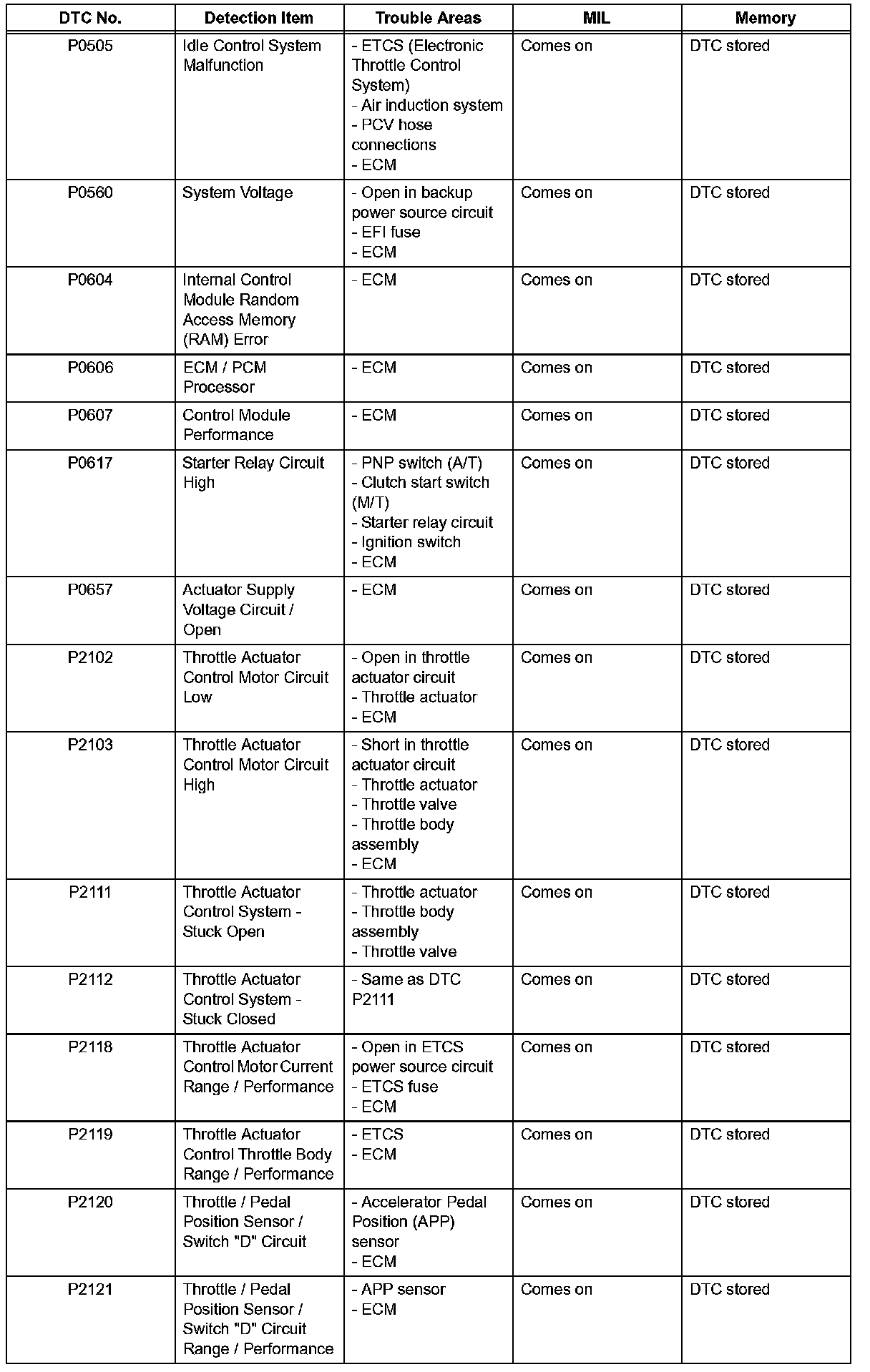

P0505-P2121:

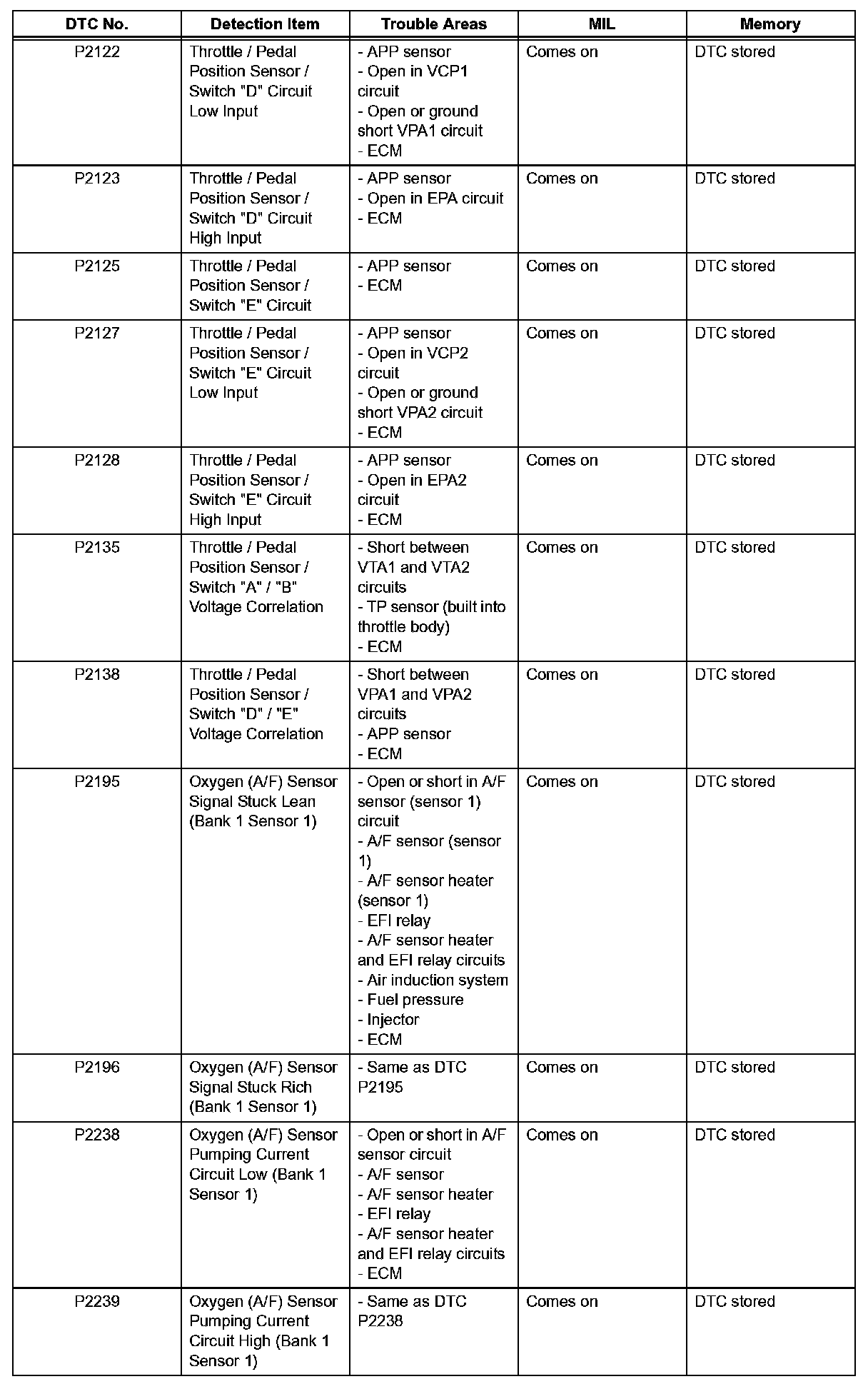

P2122-P2239:

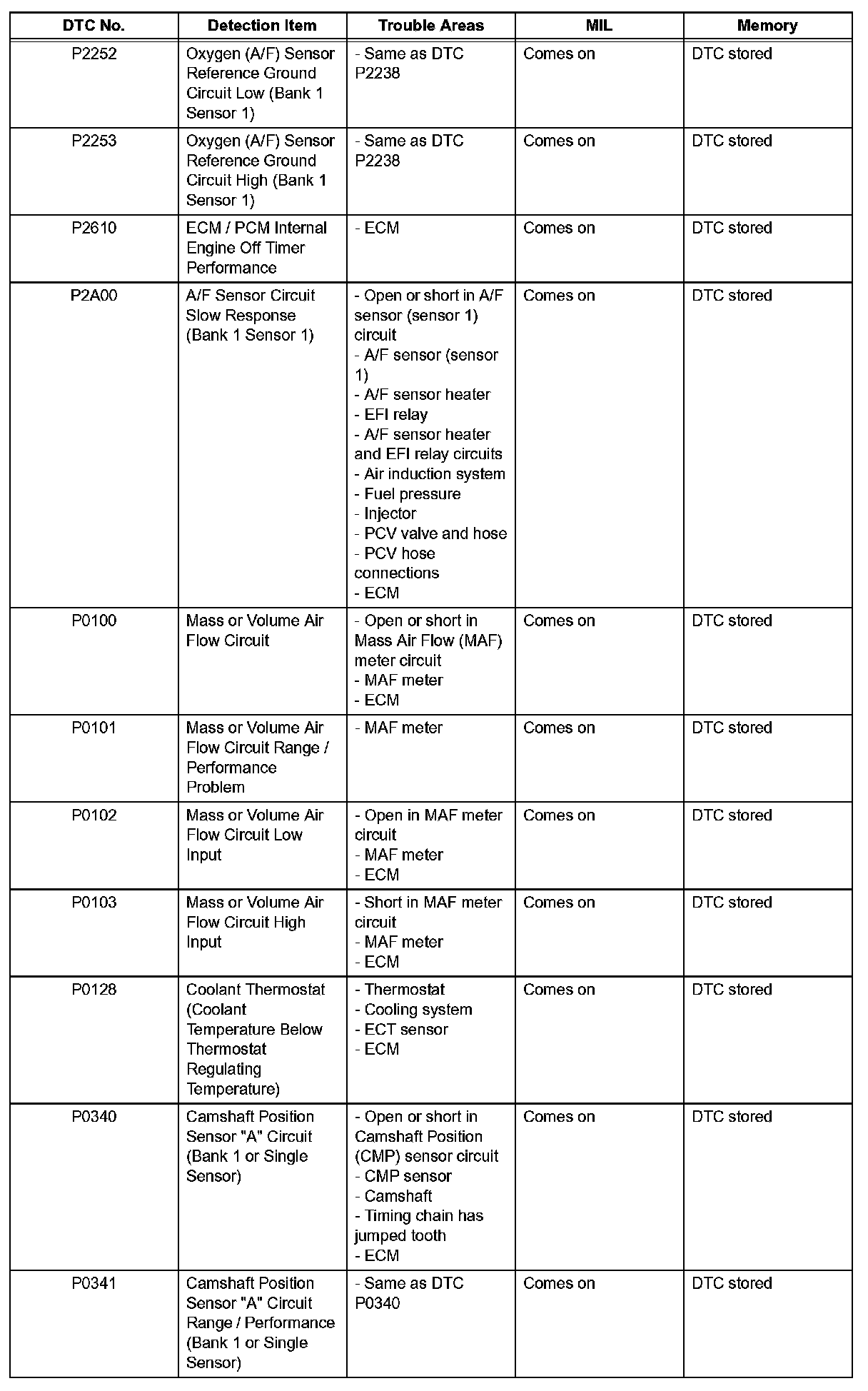

P2252-P0341:

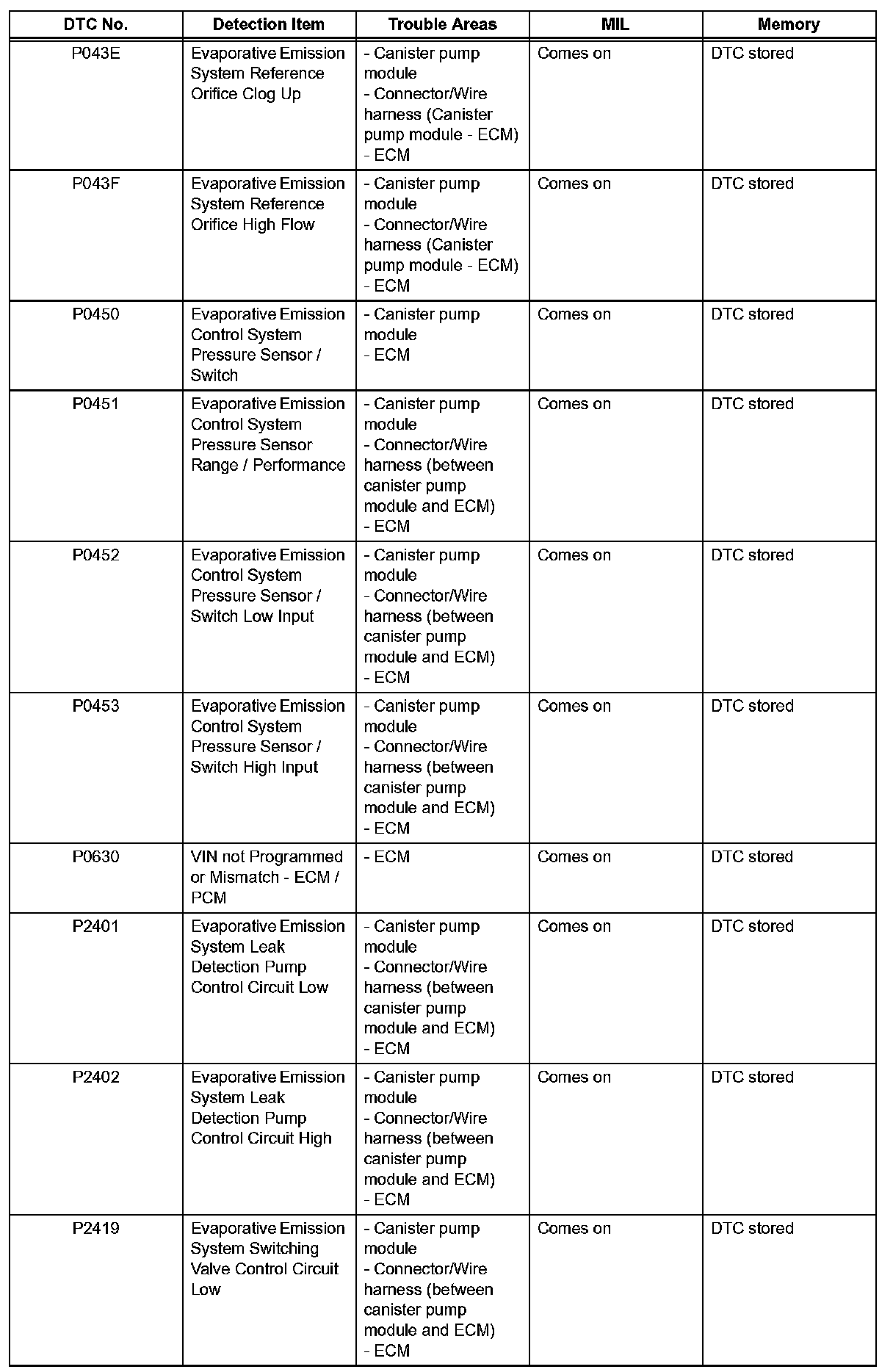

P043E-P2419:

P2420:

HINT: Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors. If a DTC is displayed, check the trouble area for the DTC listed in the table given. For details of each DTC.
