Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

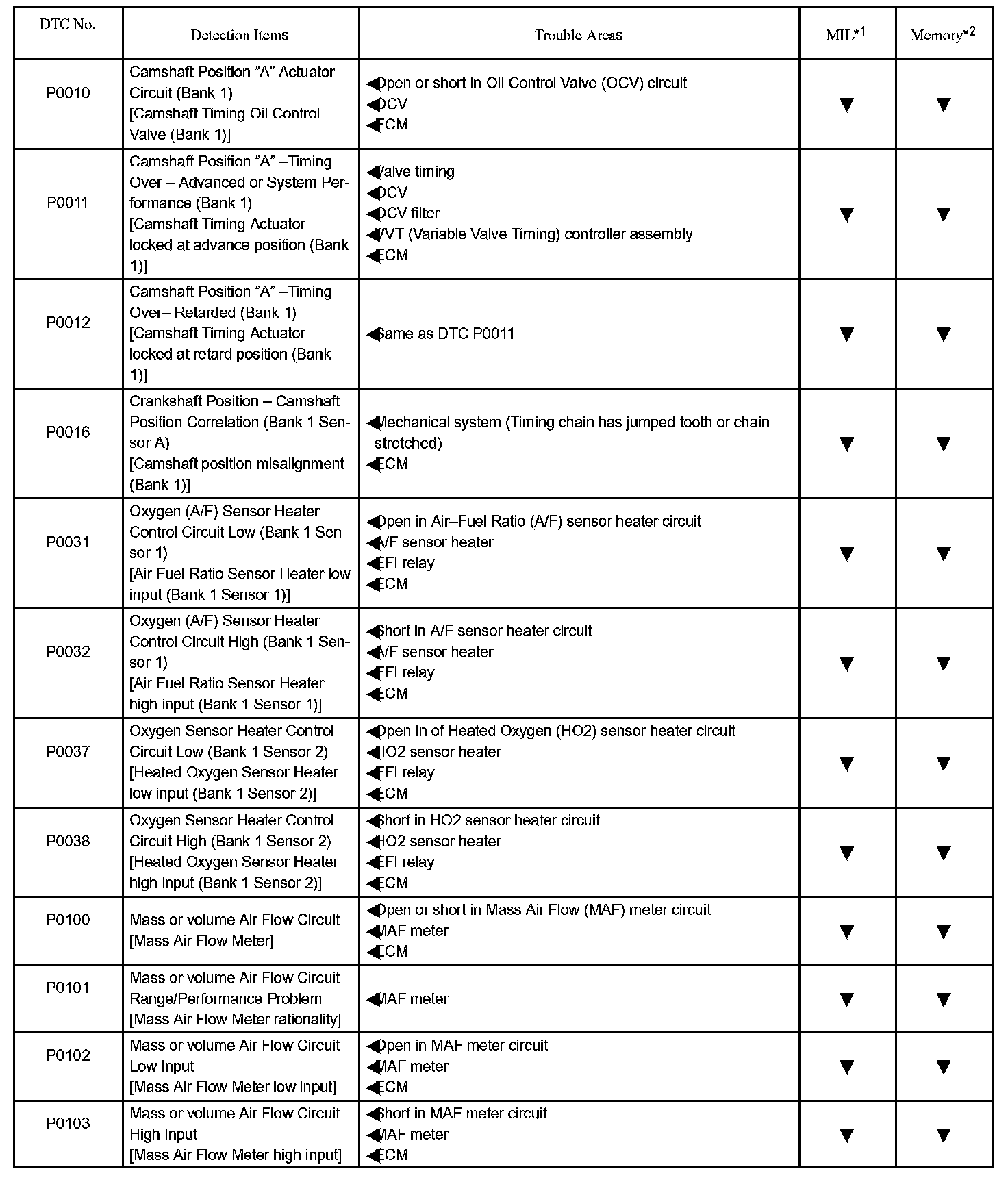

P0010 - P0103:

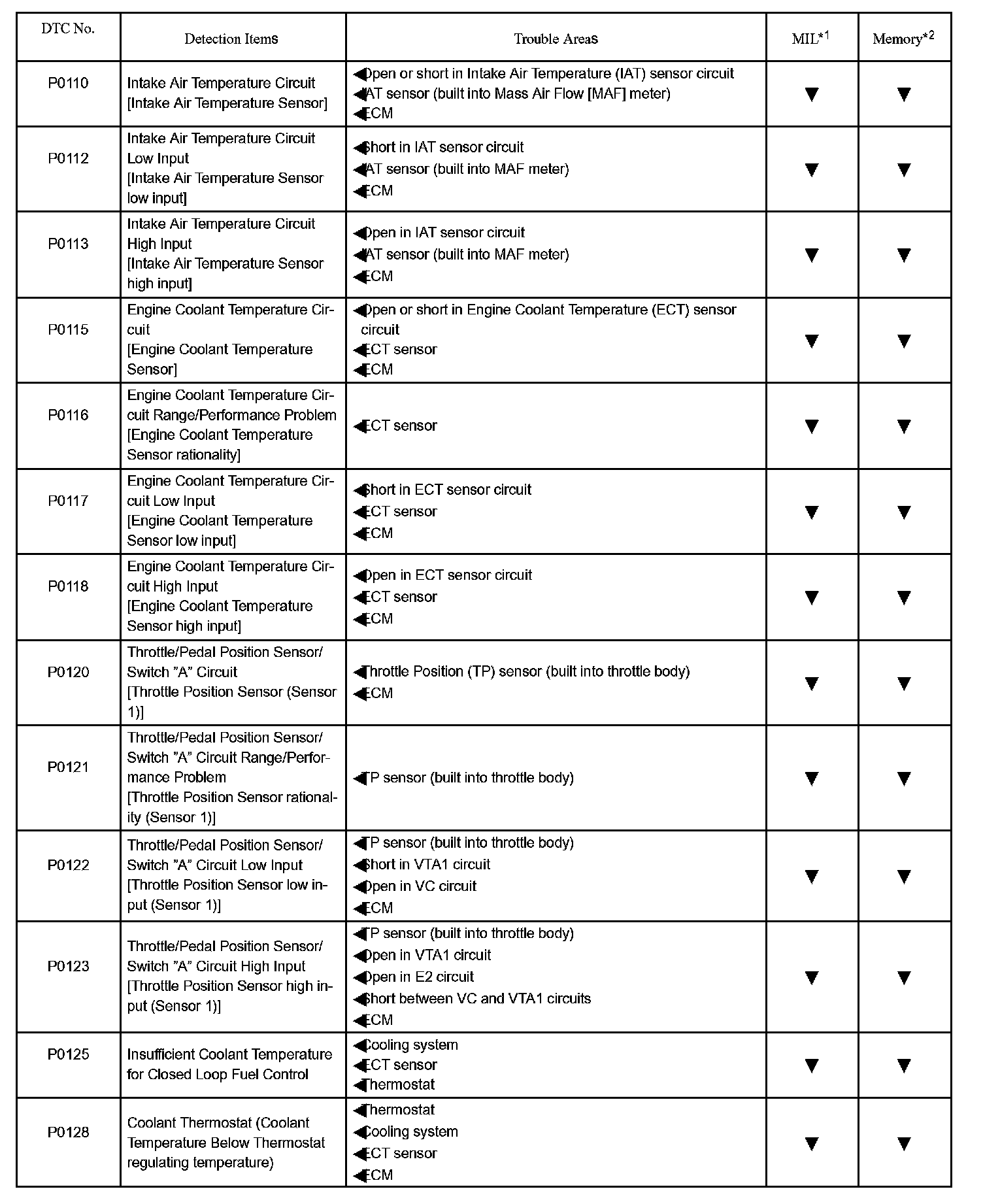

P0110 - P0128:

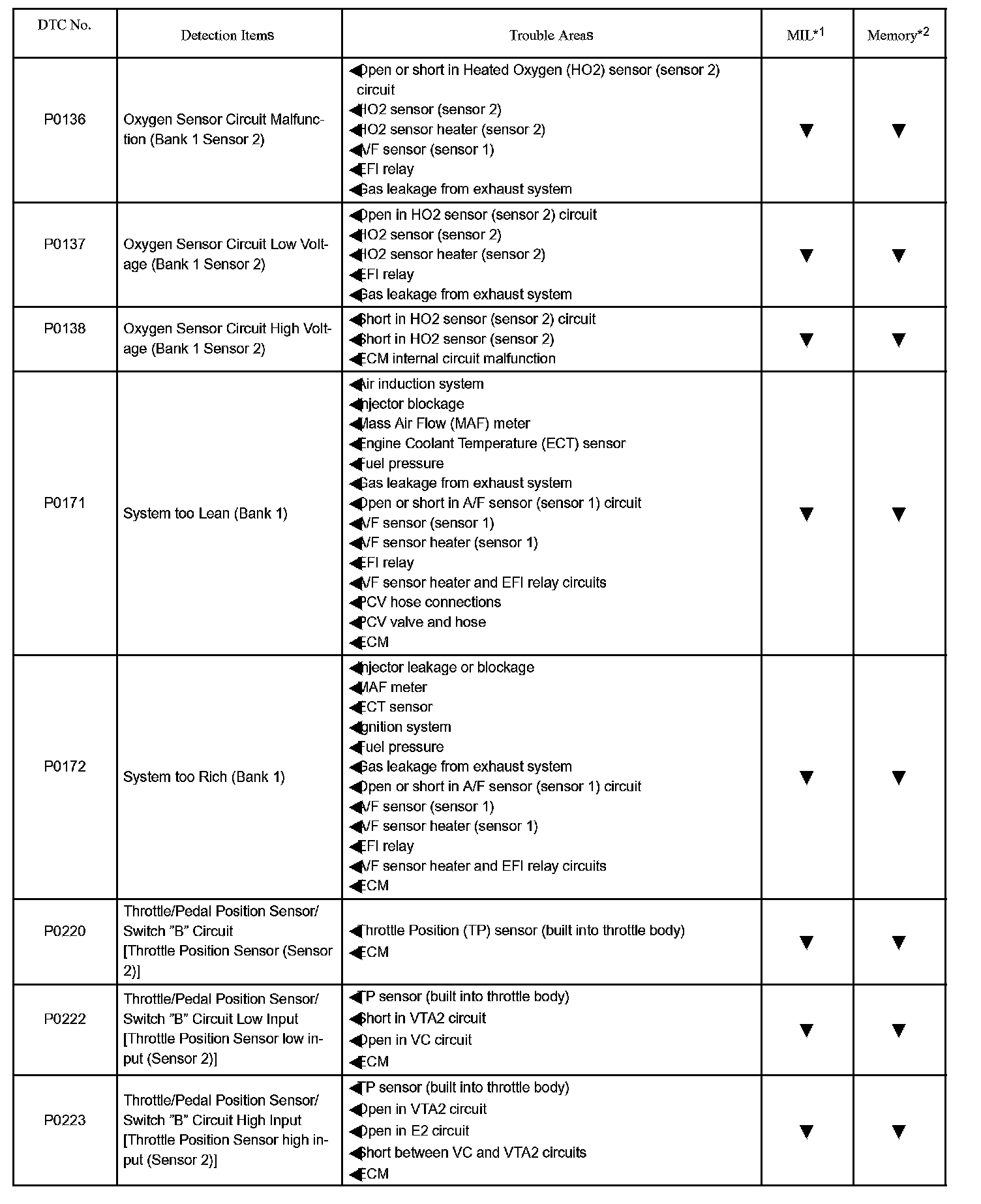

P0136 - P0223:

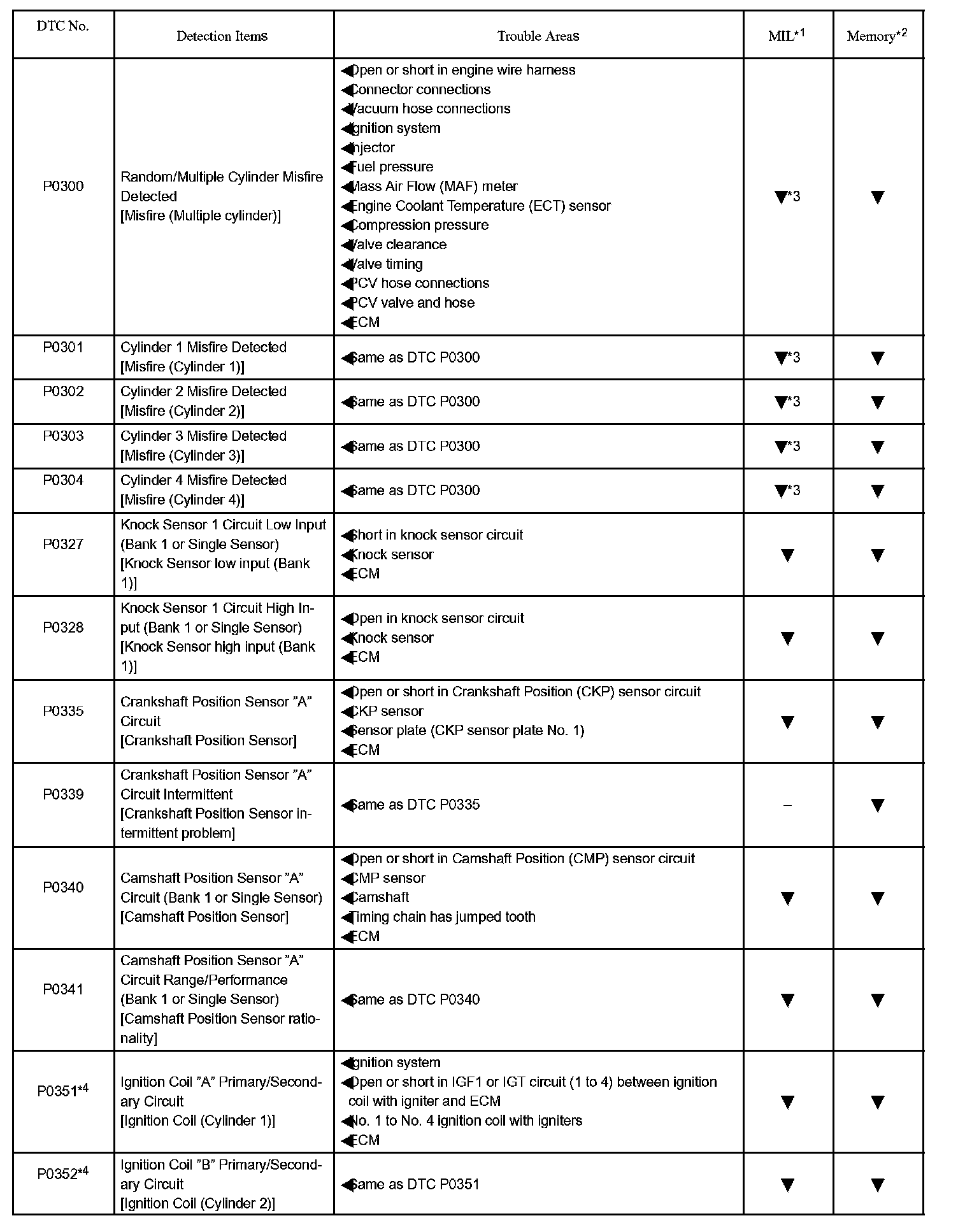

P0300 - P0352:

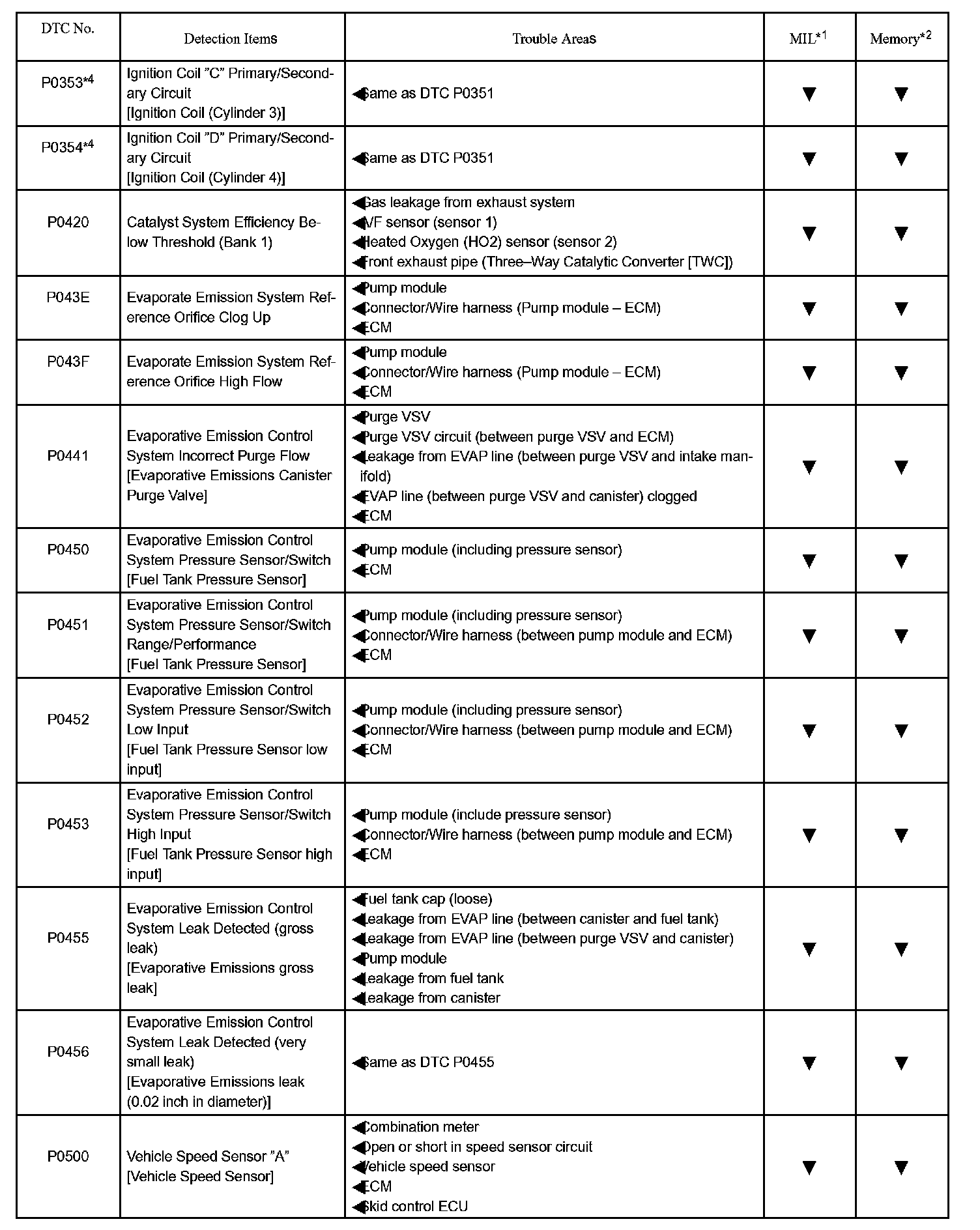

P0353 - P0500:

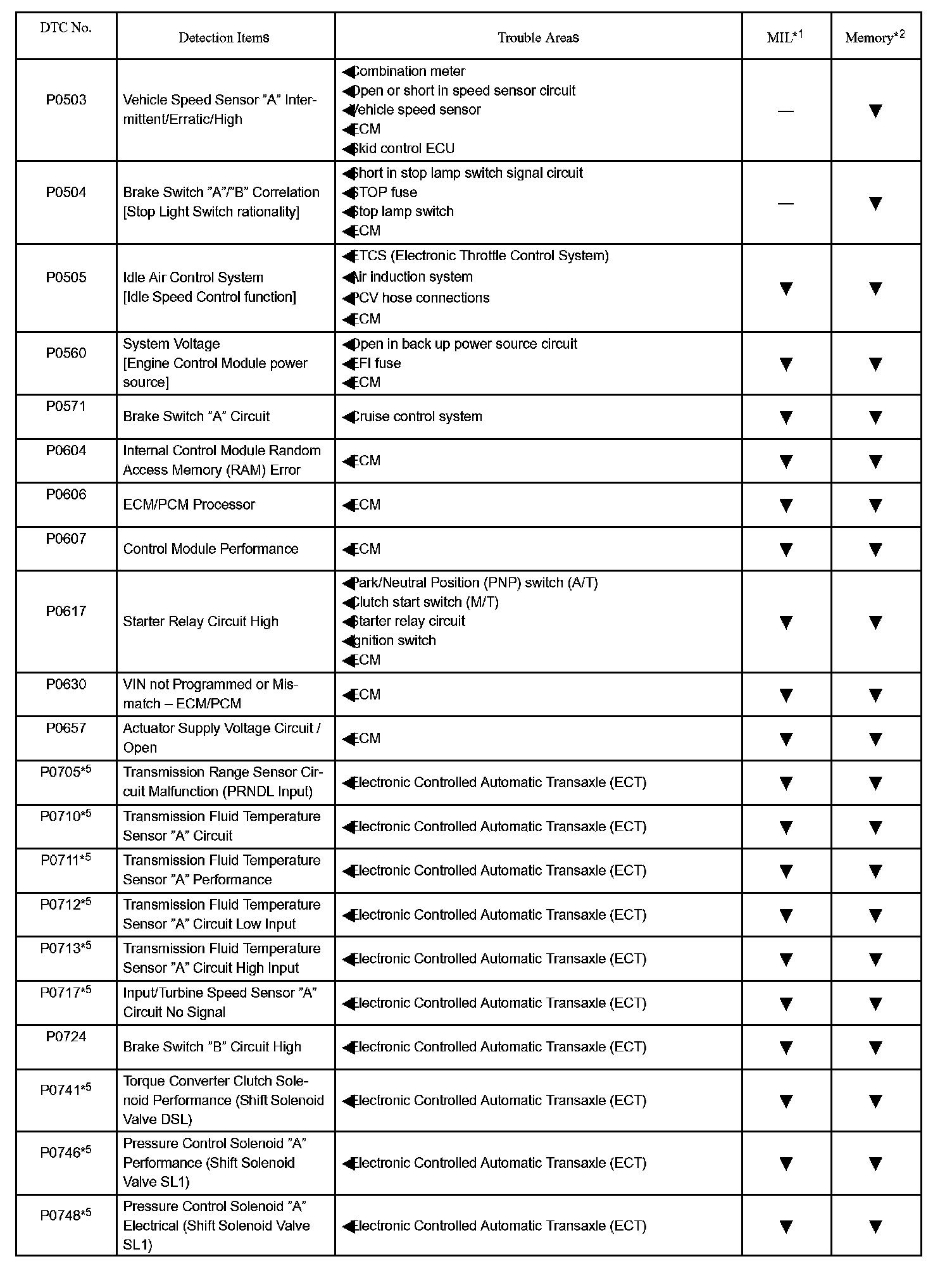

P0503 - P0748:

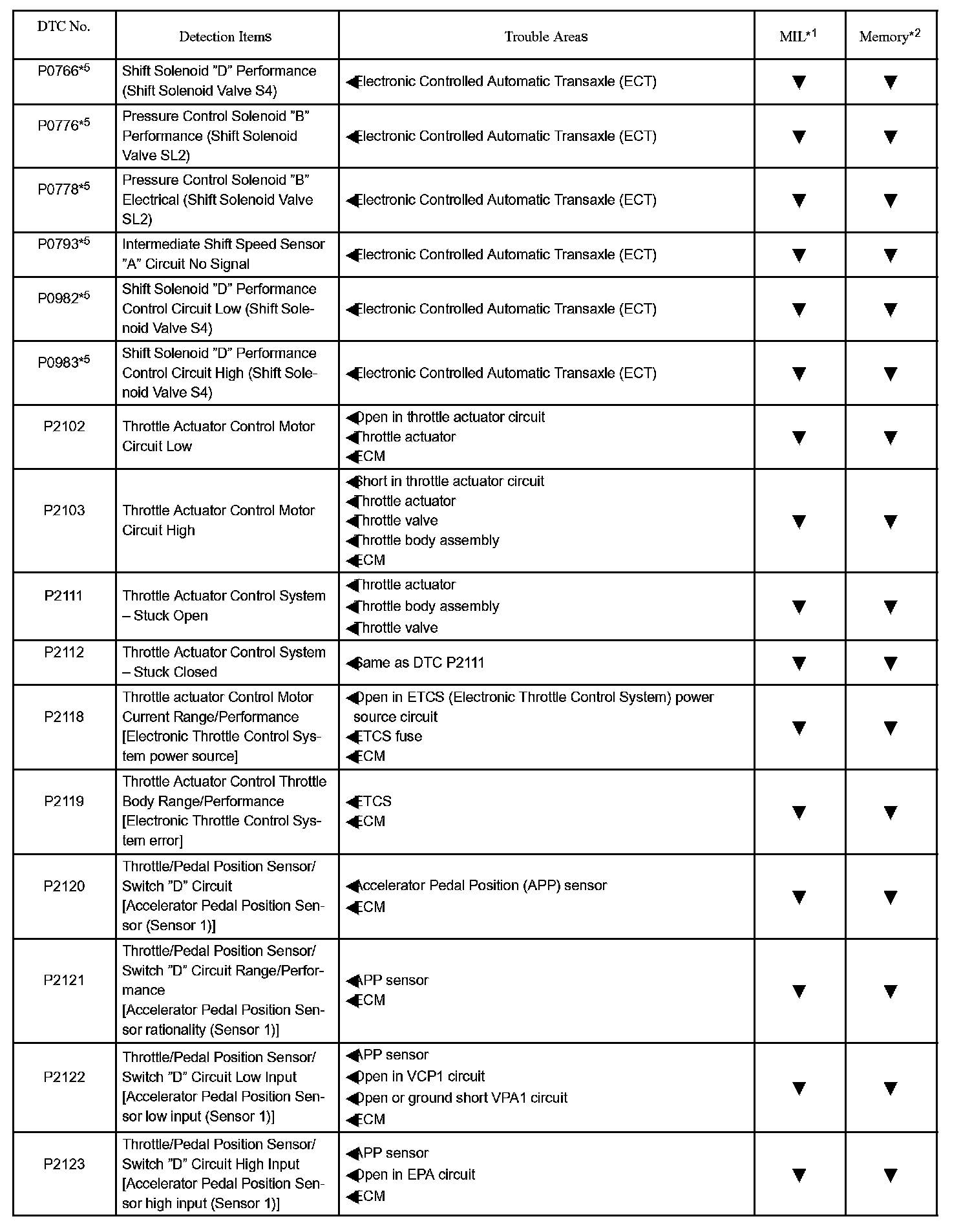

P0766 - P2123:

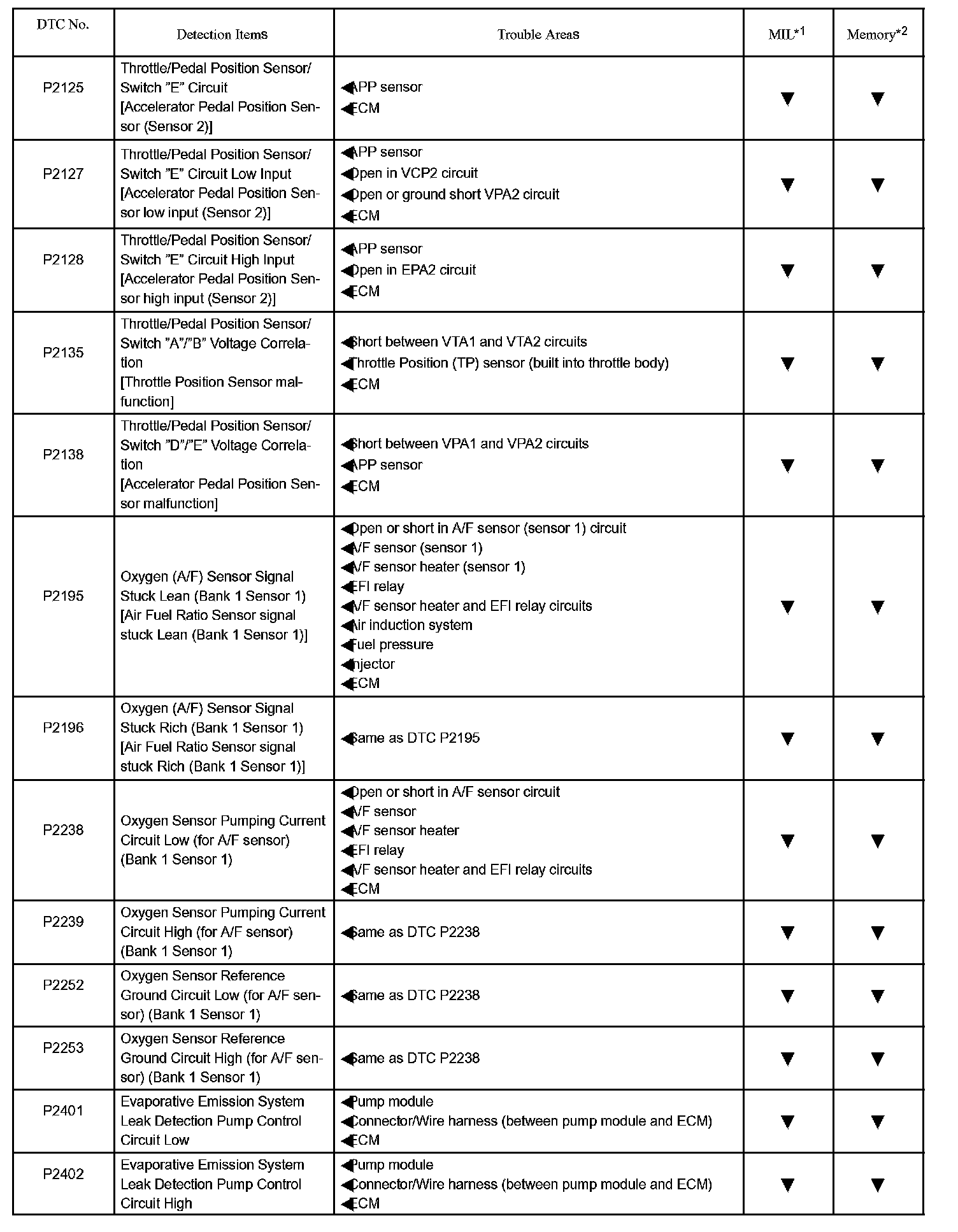

P2125 - P2402:

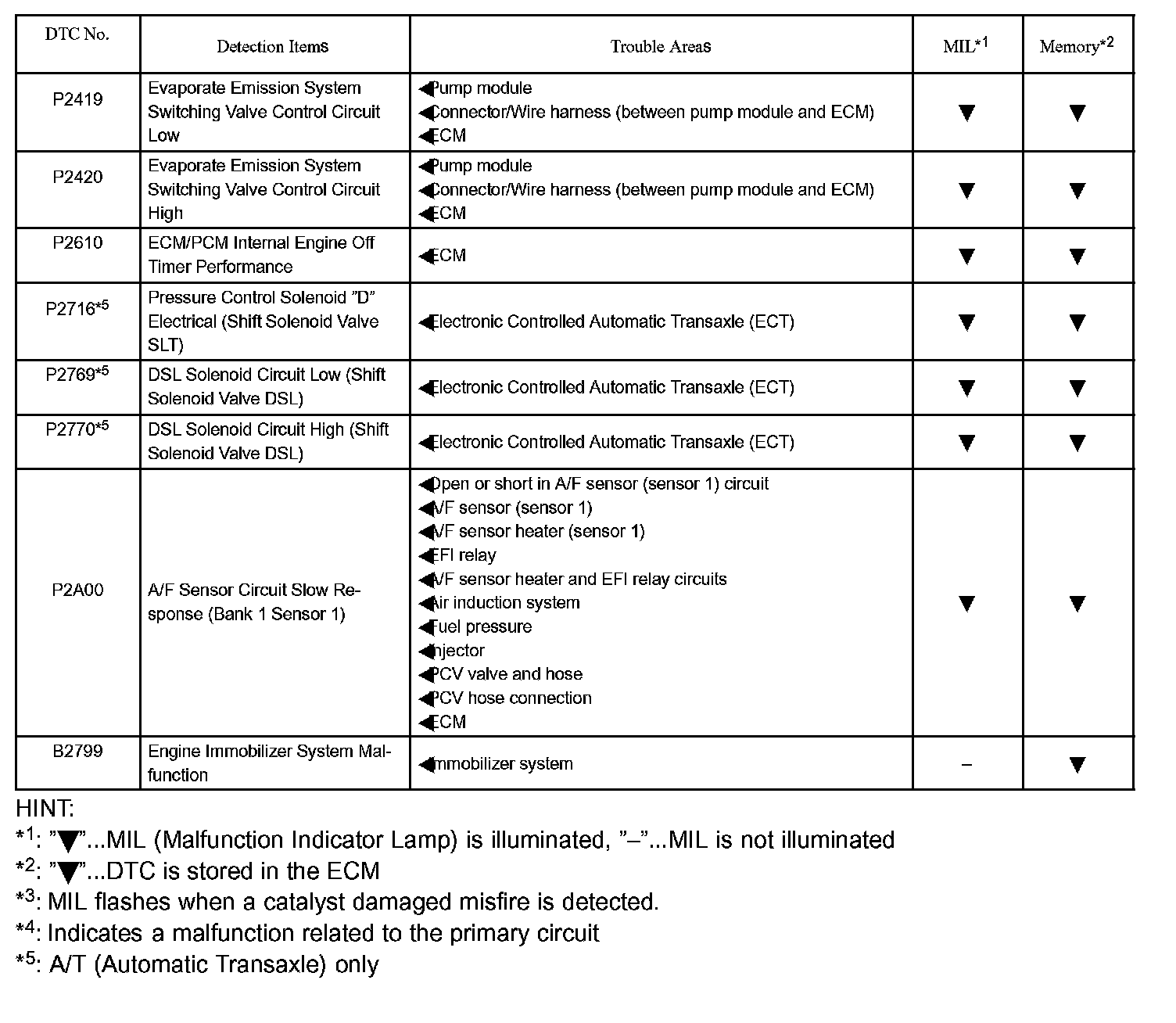

P2419 - B2799:

HINT: The parameters listed in the chart are for reference only. Factors such as instrument type may cause readings to differ slightly from stated values. If any DTCs are displayed during a check mode DTC check, check the circuit for the DTCs listed in the table.
