Transmission Position Sensor/Switch: Diagrams




Component Connector End Views

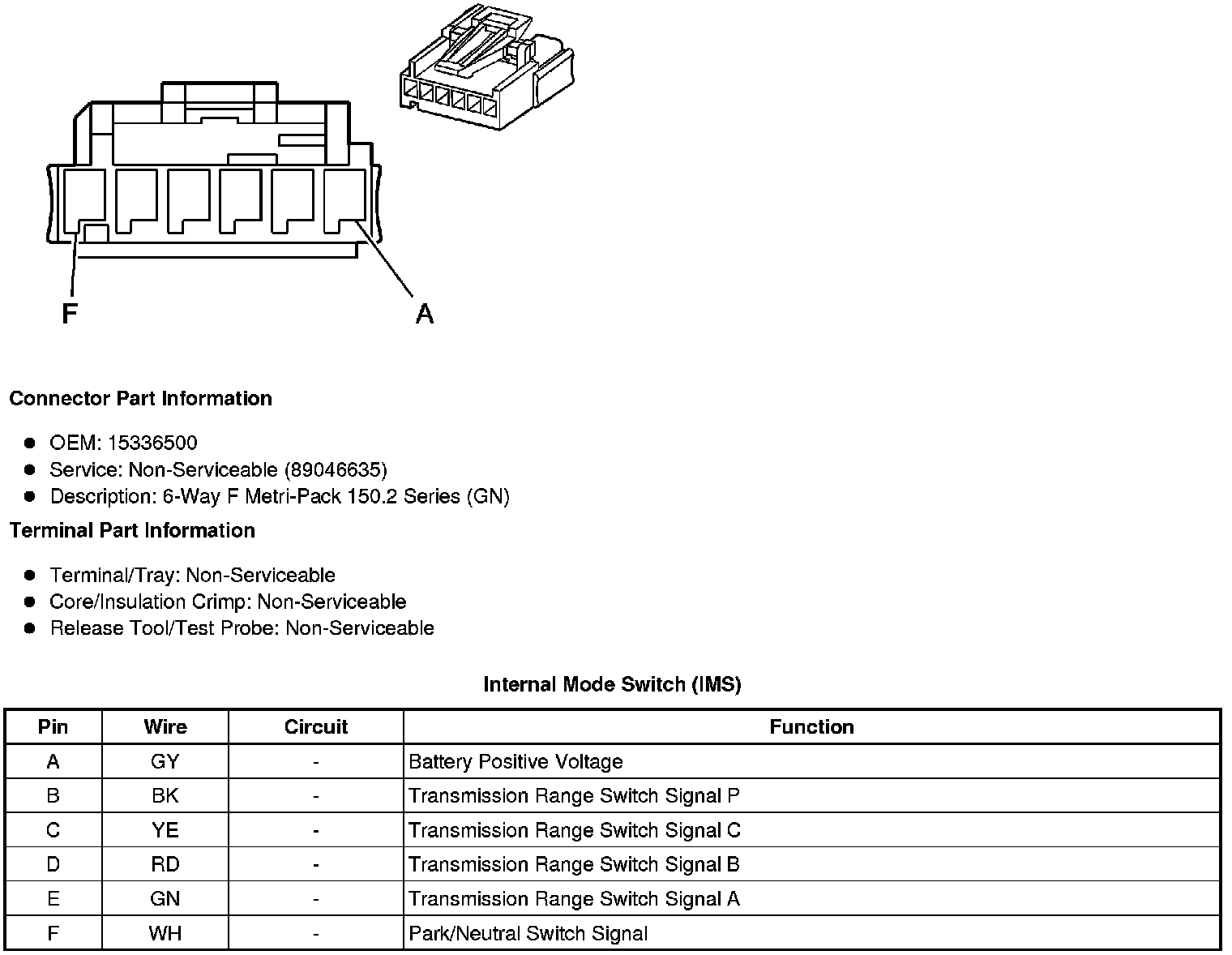

Internal Mode Switch (IMS)

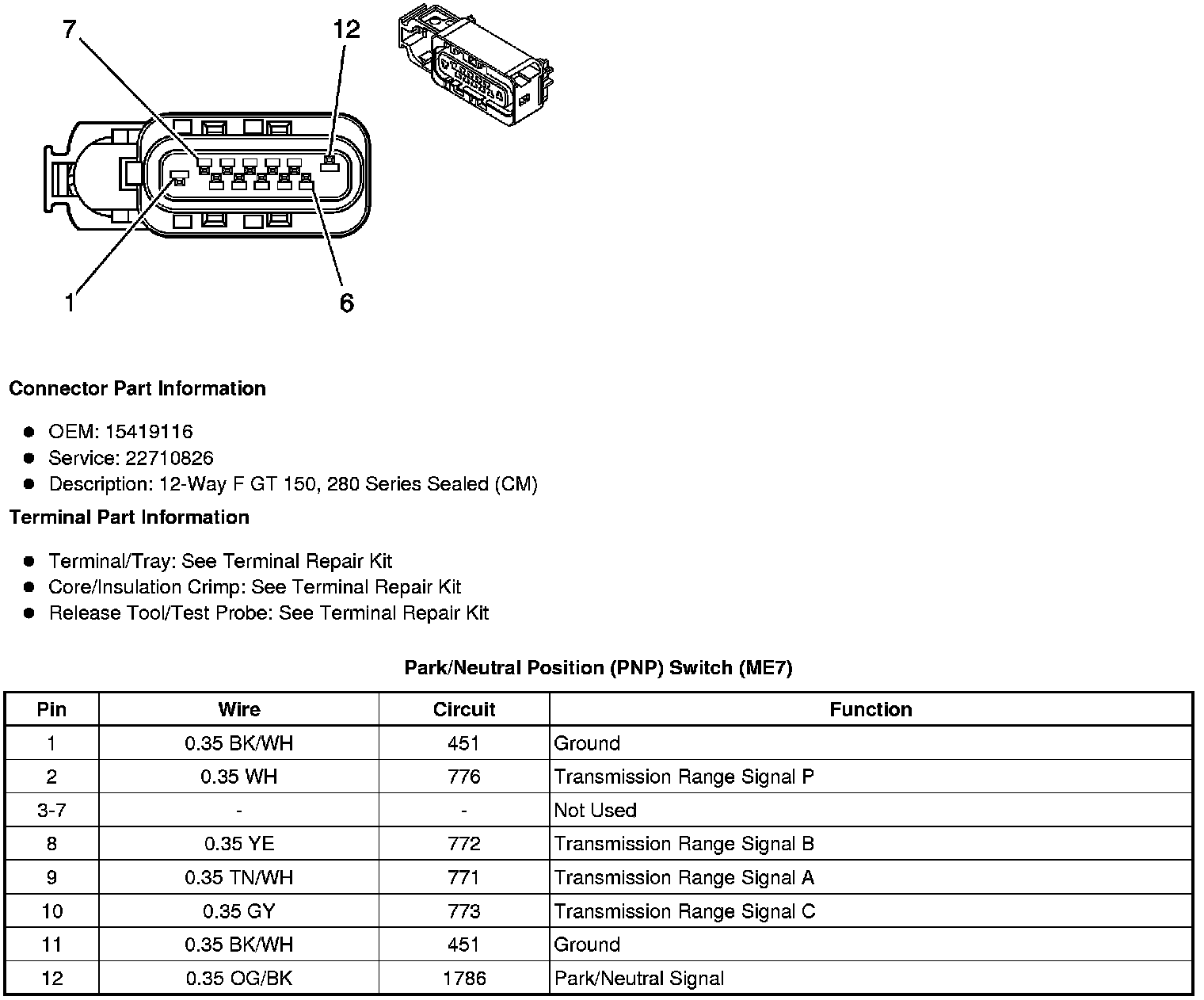

Park/Neutral Position (PNP) Switch (ME7)
