Home >> Saturn >> 2008 >> Aura L4-2.4L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Crankshaft Position Sensor >> Diagrams >> Connector Views

Connector Views



Component Connector End Views

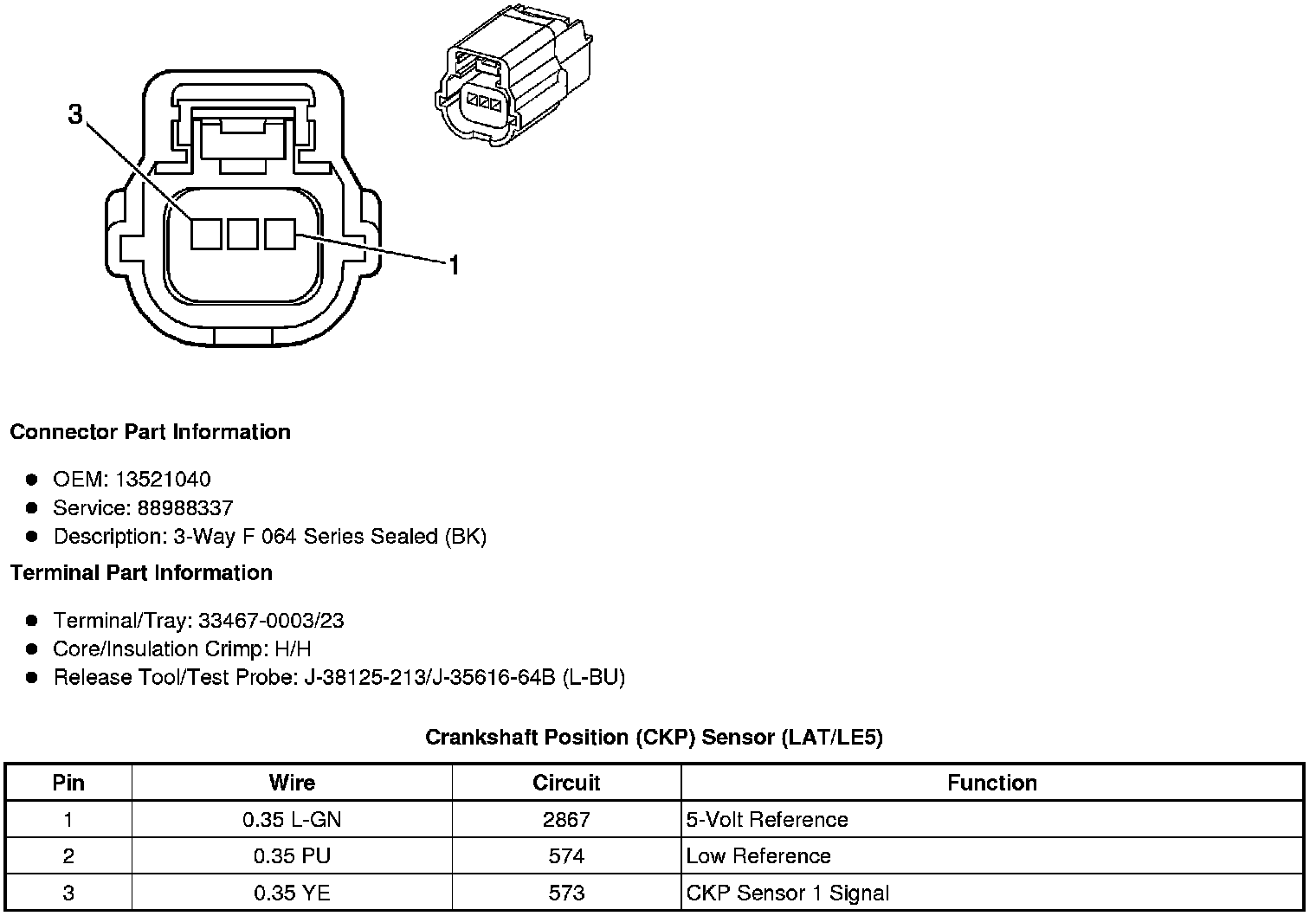

Crankshaft Position (CKP) Sensor (LAT/LE5)






Crankshaft Position (CKP) Sensor (LY7)






Crankshaft Position (CKP) Sensor (LZ4)
