Home >> Saturn >> 2008 >> Aura L4-2.4L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Diagrams

Power Control System: Diagrams

Component Connector End Views

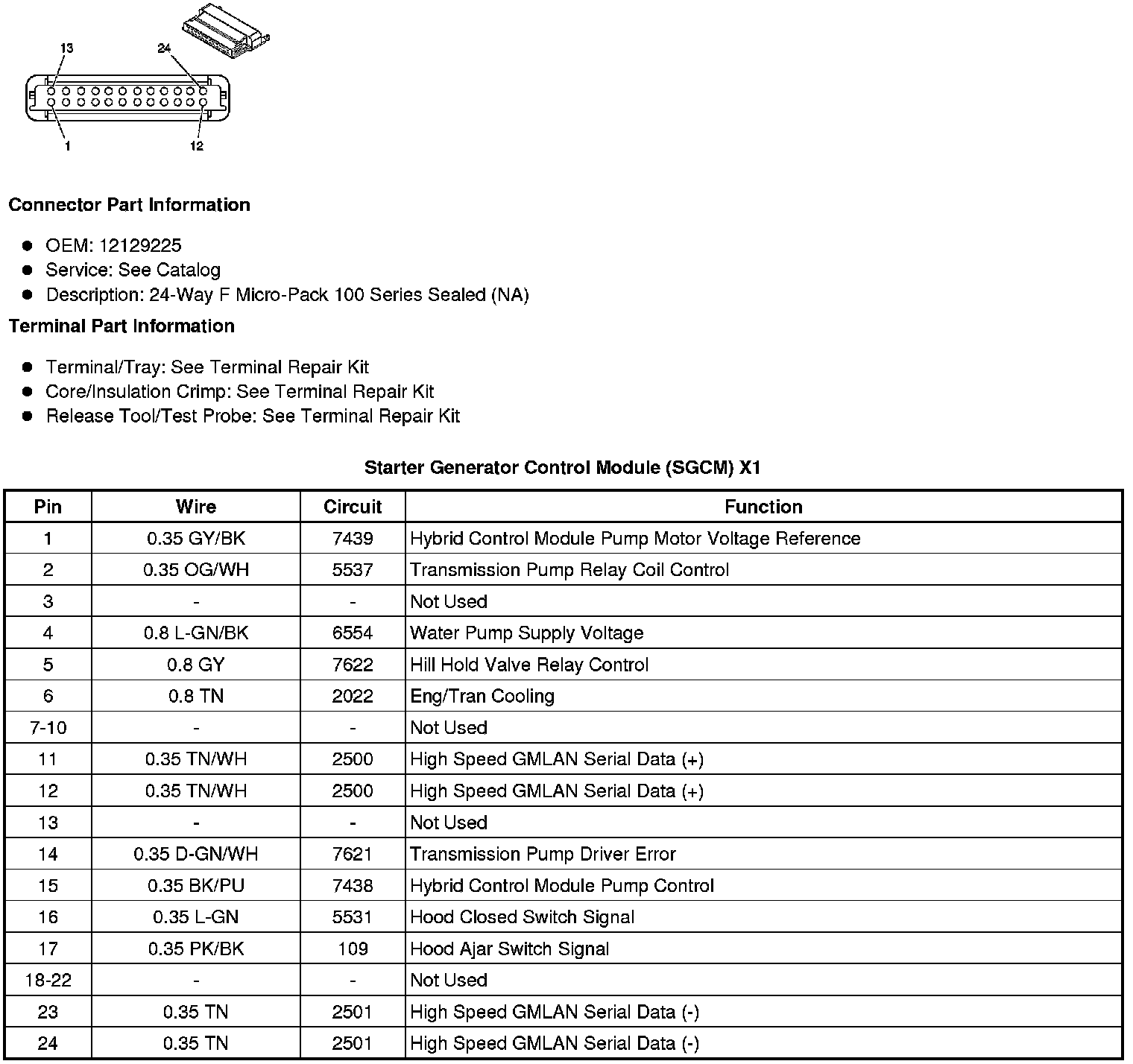

Starter Generator Control Module (SGCM) X1

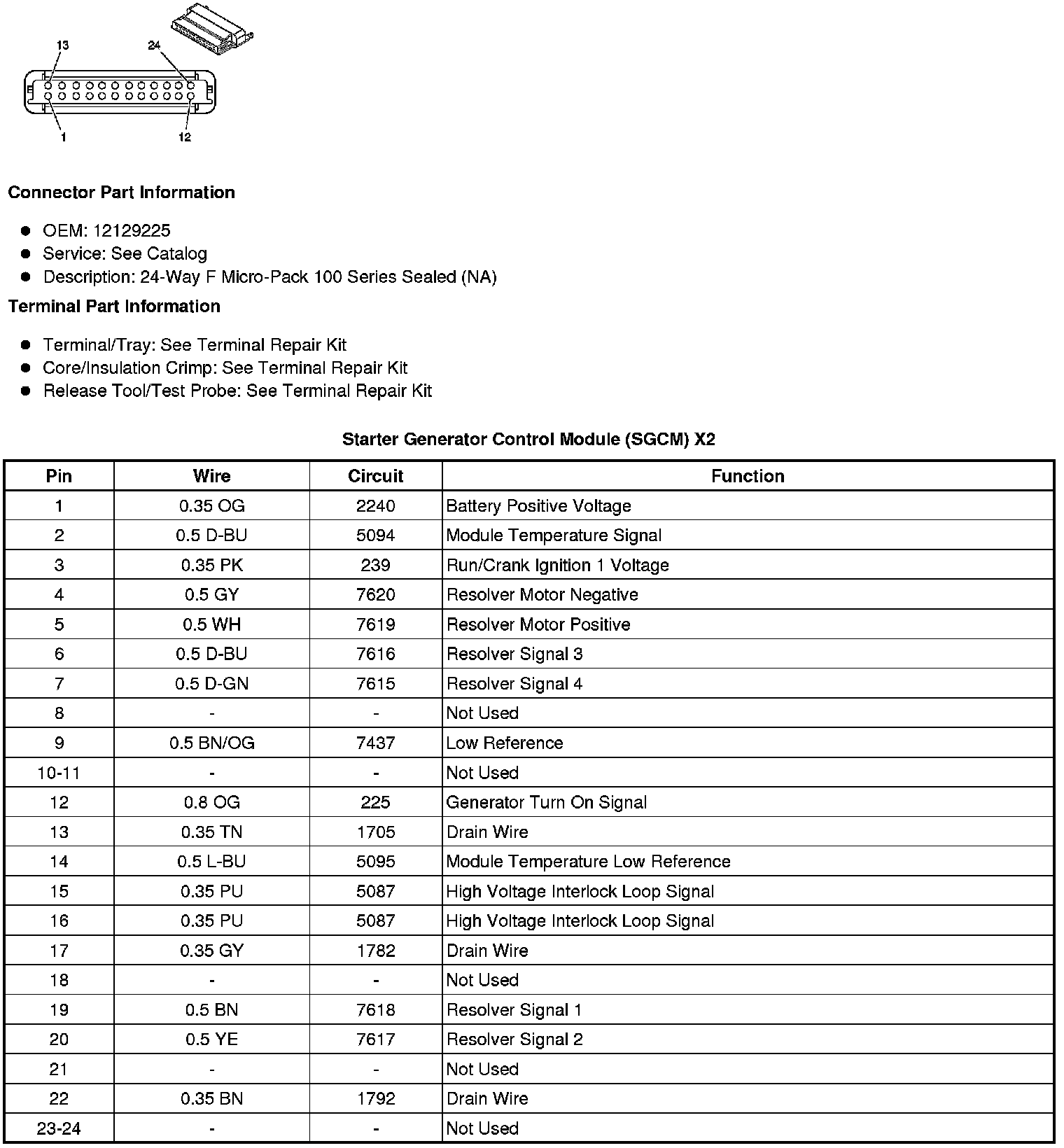

Starter Generator Control Module (SGCM) X2
